| Prod Model: |
LW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Phase&Wave Form: |
Single Phase & Pure Sine Wave |
| Frequency: |
50Hz and 60Hz Adjustable |
| Display: |
LCD and LED (Optional) |
| AC Output: |
120VAC/230V or 220/230/240V |
| DC Input: |
24V 48V |
| Charge Current Adjustable: |
70A / 50A |
| Peak Power: |
12000W |
| Color: |
Black |
| Warranty: |
2 Years |
| Phase: |
Single |
Product Description

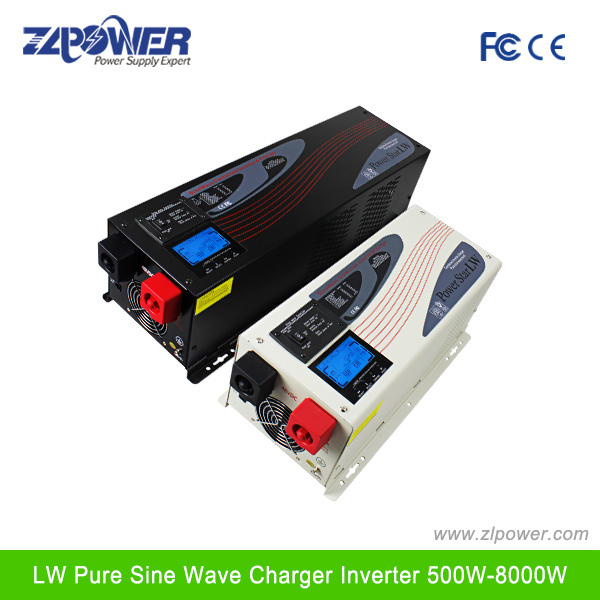

Grid and battery automatically switch 4kw power INVERTER with charger
Power range for your choice: 500W- 6000W
Main features
1. LCD digital display show voltage, load and battery information in real time.
2. Peak power is three times of rated power.
3. Can work with inductive loads such as air conditioner, motor door and so on
4. Accept generator's energy output.
5. Pure sine wave output, available for sensitive loads.
6. Microprocessor control with 4-step progressive charging, 7 battery type selector.
7. Fast and powerful charger with 35A and 70A.
8. High power factor 0.9-1.0, low power consumption.
9. Automatically transfer between battery and line modes.
10. Custom-made communication port USB/RS-232/SNMP
11. Remote control function.
12. Protection against overload, over temperature, over charging, low battery.
New Function
1. AC bypass output automatically , NO need to power on the inverter
2. Can charge the batttery even if the inverter is off (as long as it is connected to grid power)
Main Application
1> Transport equipments: military vehicle, police car, Medical ambulance, ship, traffic lights etc.
2> Industrial equipments: solar energy system, wind power, metal halid lamp, high voltage sodium lamp, etc.
3> Office equipments, computer, printer, display apparatus, duplicator, scanners, digital camera, digital pickup camera, etc.
4> Home equipments: cleaner, fan, lighting, electric cutter, sewing machine, etc.
5> Kitchen appliances: microwave ovens, induction cooker, refrigerator, etc.
6> Electric tools: electric saw, driller, muller, sandblasting machine and punching machine, lawn mower, air compressor, etc.
7> Electronic field: TV, DVD, video games, power amplifiers, auto equipment, monitoring equipment, terminal equipment, server, intelligent platform, satellite communication equipment, etc.
Parameter
| LED Model | LWS1000 | LWS1500 | LWS2000 | LWS3000 | LWS4000 | LWS5000 | LWS6000 | LWS7000 | LWS8000 |
| LCD Model | LWS1000-C | LWS1500-C | LWS2000-C | LWS3000-C | LWS4000-C | LWS5000-C | LWS6000-C | LWS7000-C | LWS8000-C |
| Nominal Power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 7000W | 8000W |
| AC Input | Phase & waveform | Single Phase & Pure Sine Wave |
| Norminal Voltage | 120VAC/230VAC OR 220/230/240VAC |
| Acceptable Voltage | 95-126VAC OR 194-253VAC±4% |
| Line Low Disconnect | 85V±4% OR 184±4% (154 wide mode±4%) |
| Line Low Reconnect | 95V±4% OR 194 ±4%(164 wide mode±4%) |
| Line High Disconnect | 136V±4%/274±4% |
| Line High Reconnect | 126V±4%/264±4% |
| Frequency | 50Hz(41-54) or 60Hz(51-64) (auto sensing) |
| Output | Phase & Waveform | Single Phase & Pure Sine Wave (bypass mode sync to input) |
| Voltage | 110/120/130VAC OR 220/230/240VAC±10%rms (bypass mode sync to input) |
| Voltage Regulation | ±10%rms (bypass mode sync to input) |
| Frequency | 50Hz±0.3Hz OR 60Hz±0.3Hz (bypass mode sync to input) |
| Peak Power | 3 times of rating power |
| Short Circuit Protection | Yes, shutdown after 10ms |
| Power Factor | 0.9-1.0 |
| DC Input | Battery Voltage | 12/24Vdc | 12/24/48Vdc | 24/48Vdc | 48/72Vdc |
| Minimum Start Voltage | 10V for 12V, 20V for 24V, 40V for 48V |
| Low Battery Alarm | 10.5±0.3Vdc for 12V, 21±0.6Vdc for 24V, 42V±1.2for 48V |
| Low Battery Transfer | 10V±0.3Vdc for 12Vdc, 20V ±0.6Vdcfor 24V, 40V ±1.2Vdcfor 48V |
| High Voltage Alarm | 16V±0.3 for 12V, 32V ±0.6for 24V, 64±1.2V for 48V |
| High DC Input Recovery | 15.5±0.3Vdc or 31±0.6Vdc or 62V±1.2Vdc |
| Max Charge Current | 20A/35A/50A/75A/90A(According to the inverter model) |
| Transfer Efficiency | Line Mode | >96% |
| Battery Mode | >85% |
| System Parameter | Power Saver | Load<=25W(Enabled on "P/S auto"setting of Remote Control |
| Audible Alarm | Souding when the heat sink 's temperature is over 100ºCand shut down after 30 seconds |
| Over Load Protection | 110% |
| Load>150%,beeps 0.5s every 1s,and fault after 20s |
| Protections | low battery,over charging,over temp,over load |
| Communications | RS-232/USB/SNMP(custom-made) |
| Operating Environment | 0-40ºC,0-90%RH(non-condensing) |
| Audible Noise | <60dB | | |
| Net Weight(KG) | 15.5 | 18 | 20 | 25.5 | 36 | 39.5 | 48 | 55 | 60 |
| Dimension, L X W X H(mm) | 470×223×185mm | 650×223×185mm |
Trading terms for reference:
Delivery time: 15days-25days, below 1000pcs within 15days, above 1000pcs within 25days.
Payment terms: TT
Warranty: 2 years, 2% spare parts.
We also have:
off line UPS, on line UPS, battery, MPPT solar charge controller
