| Prod Model: |
BZS-30KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Wave Form: |
Pure Sine Wave |
| Product Type: |
DC to AC |
| Apply For: |
Solar System |
| MPPT`: |
200-850V |
| Waterproof: |
IP20 |
Product Description

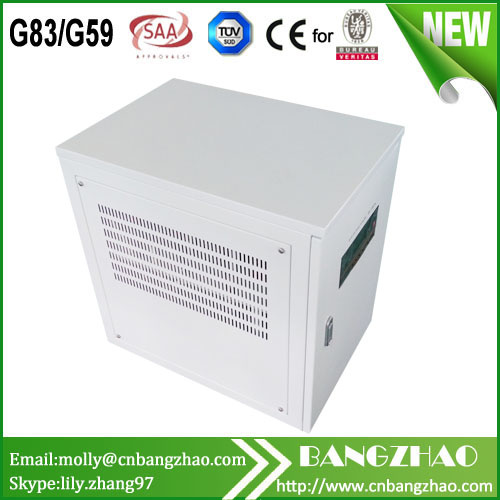

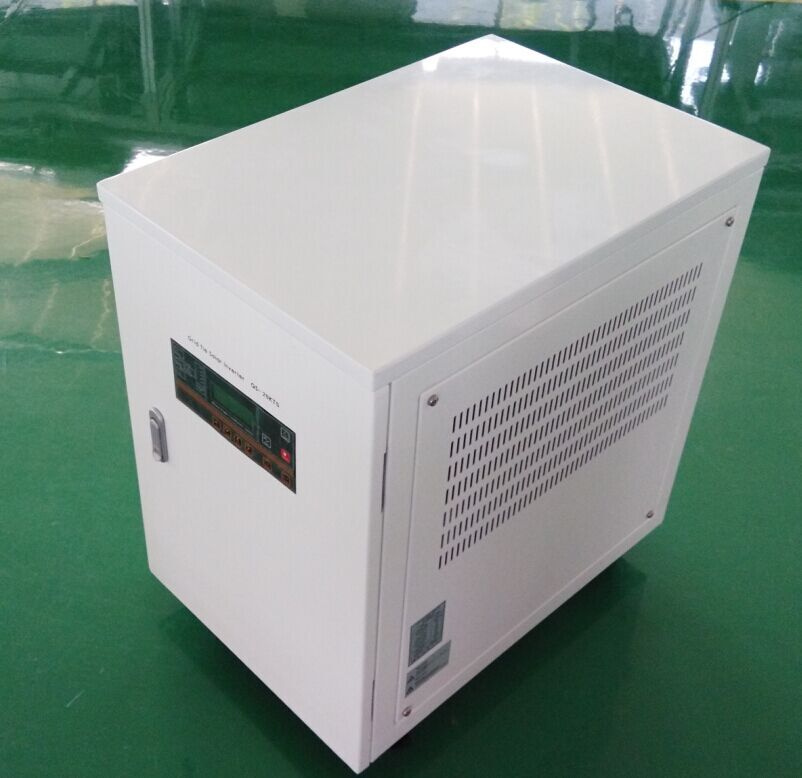

Grid Tie 3 Phase Inverter 30000W for PV System
Using the fifth generation lntellingent Power Module from Mitsubishi,
Improve the system efficiency higher
High conversion efficiency
Advanced technology for maximum power point tracking(MPPT)
(>97%)MPPT efficiency
Wide input voltage range
High reliability due to compltte protection function
Powerful communication interfaces
Easy operation and installation
Easy-to-set multilingual LCD display
Adjustable protection / operation parameters
| Model | BZS-25KW | BZS-30KW |
| DC Input | MPPT Voltage Range | DC200~820V |
| Max. DC Voltage | 850VDC |
| Rated DC Voltage | 620V |
| Start Voltage | 400V |
| Recommended PV Array Open Circuit Voltage | 620V |
| Control System | MPPT |
| Number of MPPT Tracker | 1/2 |
| AC Output | Rated Output Power | 25KW | 30KW |
| Rate Grid Voltage | AC380V(Grid Voltage) |
| Grid Voltage range | AC 342~418V (3 phase) |
| Normal Grid Frequency | 50/60Hz(Grid Frequency) |
| Phases | 3 phase 4 wire |
| Power Factor | > 0.95 |
| Current THD | At rated power and in the sine wave <5% |
| Control System | PWM |
| Anti-islanding | ≤0.5 sec |
| Output Overload | 100% |
| Max. Efficiency | 98% |
| Euro Efficiency | 96.4% |
| Structure | Protection Class | IP65 |
| Cooling system | Natural cooling |
| Noise | < 50dB |
| Data Interfaces | External RS232C/RS485 |
| Web Module(Option) | RS232C to TCP/IP |
| Display | LCD |
| Dimensions(W*H*D) | 450*640*700MM | 450*640*700MM |
| Weight | 97kgs | 110kgs |
| Protection | Inverter | Input overvoltage, output short circuit, overheat,
output DC component. |
| Grid | Anti-islanding, over/under voltage of grid,
over/under frequency of grid. |
| Environment | Environment | No corrosion gas, flammable gas, oil mist, dust etc. |
| Operation temperature | -10°C~40°C(50°C) |
| Stored temperature | -20°C~65°C |
| Relative humidity | 0~100% (Do not wet with dew) |
| Warranty | 3 years |
| CE-Standards Complied | CE-Standards Complied: EN61000-6-2, EN61000-6-4(EMC), EN61558-1, EN61558-2-17, EN50178, EN61000-1 |
| Certifications | CE. ISO9001:2000 |
FAQ:
Q 1. What's the payment term?
A. We accept TT,Western Union,Paypal,MoneyGram.
Q 2.How's the delivery time ?
A. Is due to order quantity, usually it will take about 3-7days for sample production,
Q 3.Tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use honeycomb carton and pallet or wooden case for protection.
Q 4.Would you accept to use our logo ?
A.It's no problem to do OEM.
Q 5.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 2000pcs and big capacity near 500pcs.
Q 6.Where is your market?
A. Our products are popular in Australia,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 7. What kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE, SAA, G83 G59 etc .
OEM Services
1.Logo
Please offer us your own high resolution logo in JPG format,there should be two colors at most in the logo and there should be no gradient effect in the logo.
2.Label
Please offer us your own model numbers.
3. Manual
Please offer us the finished manual file that can be printed directly.
Lead Time
1.Sample orders will be delivered from our factory within 3-7 working days.
2.General orders will be delivered from our factory within 15-30working days.
3.Big orders will be delivered from our factory within 45 working days at most
Shipment
1.By EMS,DHL,FedEx,TNT,UPS or other express.
2.By our forwarding agent(by air or by sea).
3.By your own forwarding agent.
4.By domestic forwarding agents to any city in China.
Yueqing Bangzhao Electric Co., Ltd. is specialized in the field of power research and development, production and service. In all varieties, high quality, excellent service is recognized by the vast number of customers, the company R & D products basically covers the best product, they represent the highest level in the world manufacturing power. The main products are: Photovoltaic grid connected inverter, wind grid tied inverter, pure sine wave inverter, high frequency off grid inverter, low frequency off grid inverter, photovoltaic water pumping inverter, single-three phase converter, voltage converter, solar charger controller, photovoltaic lightning protection confluence box, PV combiner box, controller-inverter one machine, wind-solar hybrid controller, VLF high voltage generator and so on. The company products in the fire, building, industry, new energy, civil, financial, taxation, power medical, aviation, military industry, automation control system, the construction of national key projects, are widely used in various fields.
According to state electric company to maintain long-term good cooperation, R & D and leading universities with science and technology, the introduction of absorbing international advanced technology, establish a strict quality control system.
We will uphold the principle of "unremitting exploration, and strive to innovation, integrity and dedication, aestheticism is the only" objective "quality policy, standard management, careful manufacturing, quality first, dedicated service". The pursuit of excellence, innovation and value!
We will make unremitting efforts, with you to create brilliant.
