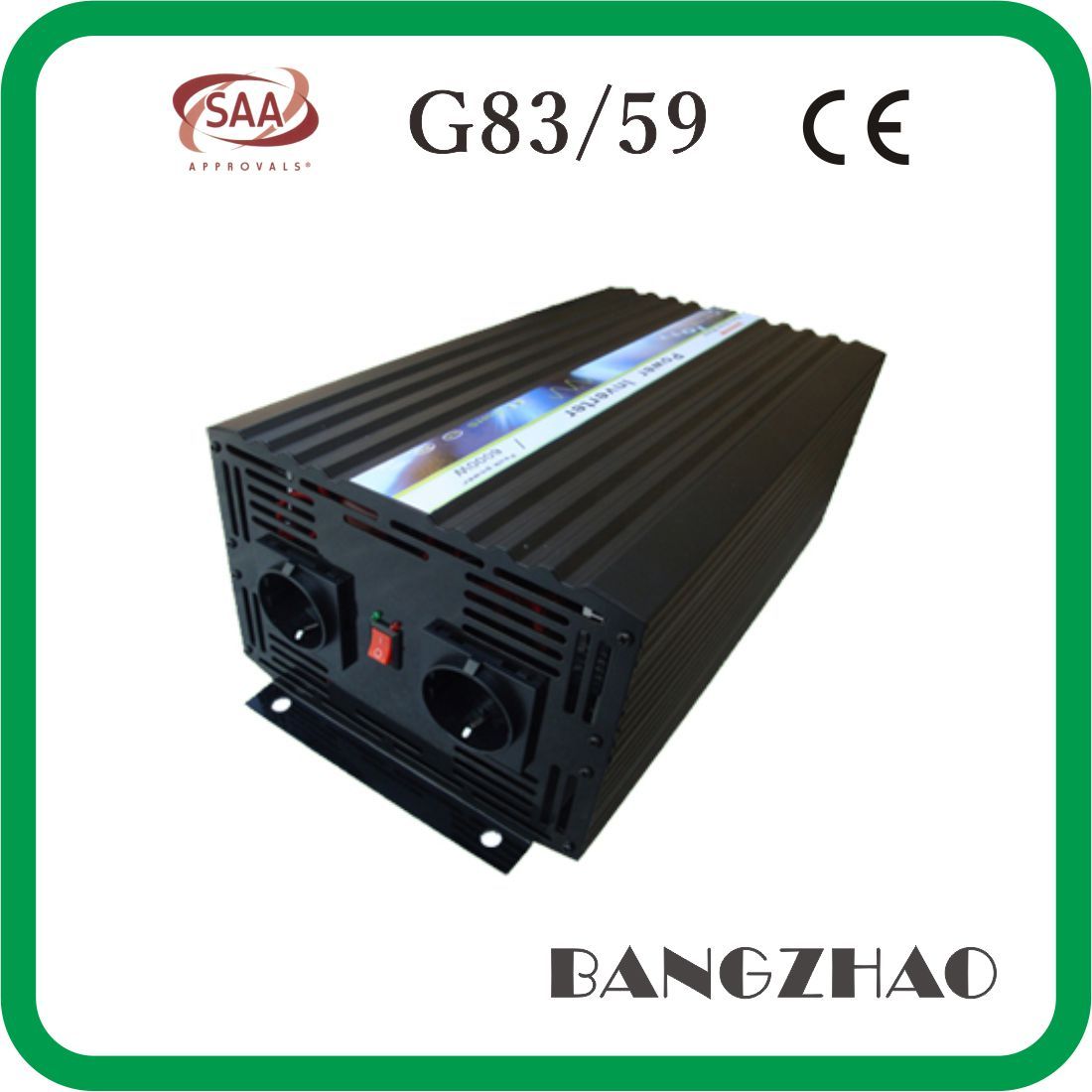

High Frequency Transformer PV Inverter with Battery Charger

Prod Model:	BZH-6000W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Wave Form:	Pure Sine Wave
Input Voltage:	12V,24V,48V Optional
Output Voltage:	110V,120V,220V,230V,240V Optional
Display:	LED
Transformer:	Without

Product Description

High Frequency Transformer PV Inverter with Battery Charger Products Features: -       High Transform efficiency, fast start -       Pure sine wave output waveform -       Strong adaptability and stability -       With automatic over-current and output short circuit protection to avoid damage the equipment -       Safe and reliable with built in fuse Function details: Model BZH-6000-121 BZH-6000-241 BZH-6000-481 BZH-6000-122 BZH-6000-242 BZH-6000-482 Rated Power 6000W 6000W 6000W 6000W 6000W 6000W Max. Continuous Power 12000W 12000W 12000W 12000W 12000W 12000W DC input voltage 12V 24V 48V 12V 24V 48V AC output voltage 110VAC 220VAC No-load current 2A 1A 0.5A 2A 1A 0.5A AC output frequency 50Hz/60HZ AC output waveform Pure Sine Wave Waveform distortion THD<2%(linear load="" p=""> Efficiency >85% >88% >90% >85% >88% >90% DC input voltage range 10.5-15V 21-30V 42-60V 10.5-15V 21-30V 42-60V Low Voltage Alarm 10.5+/-0.3V 21+/-0.3V 42+/-0.3V 10.5+/-0.3V 21+/-0.3V 42+/-0.3V Low Voltage Shutdown 10+/-0.3V 20+/-0.3V 40+/-0.3V 10+/-0.3V 20+/-0.3V 40+/-0.3V Over Voltage Protection 15.5+/-0.5V 31+/-1V 62+/-2V 15.5+/-0.5V 31+/-1V 62+/-2V Low Voltage Recovery 12+/-0.5V 24+/-1V 48+/-2V 12+/-0.5V 24+/-1V 48+/-2V Over Voltage Recovery 14.8V 29.5V 59V 14.8V 29.5V 59V Protective Function Low/Over voltage: LED  Red light, automatic recovery Over load: LED  Red light, automatic recovery Over temperature : LED  Red light, automatic recovery Short circuit: LED  Red light, automatic recovery Input reverse connection: Fuse burn-out Working Temp. 0ºC-40ºC Storage Temp. Humidity -30ºC-70ºC Dimension 540*240*220mm Wight 16.5kg Remarks: 1.300w, 500w, 600w, can be built-in charger: 12v 4A, 24v 2A, 48v, 1 A, 2.800w, 1000w, can be built-in charger: 12v 20A, 24v 10A, 48v 50A, High current: 12v 60A, 24v 30A, 48v 15A, Little Current: 12v 20A, 24v10A, 48v 5A, 4.4000w, 5000w can be built-in charger: 12v 20A, 24v 10A, 48v 5A, 5. The charger can be individually configured High Current: 12v60A, 24v30A, 48v15A, Little Current: 12v 20A, 24v10A, 48v 5A, Q 1. What's the payment term?   A. We accept TT,Western Union,Paypal,MoneyGram. Q 2.How's the delivery time ? A. Is due to order quantity, usually it will take about 3-7days for sample production, Q 3.Tell me the standard of package? A. For the small capacity, it use carton, but for big capacity, we should use honeycomb carton and pallet or  wooden case for protection. Q 4.Would you accept to use our logo ? A.It's no problem to do OEM. Q 5.We want to know month capacity.   A. It depends on which model.For example for relay type small capacity , month capacity can reach near 2000pcs  and big capacity near 500pcs. Q 6.Where is your market? A. Our products are popular in Australia,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation. Q 7. What is the warranty period ? A. Normally 1 year. OEM Services 1.Logo Please offer us your own high resolution logo in JPG format,there should be two colors at most in the logo and there should be no gradient effect in the logo. 2.Label Please offer us your own model numbers. 3. Manual Please offer us the finished manual file that can be printed directly. Lead Time 1.Sample orders will be delivered from our factory within 3-7 working days. 2.General orders will be delivered from our factory within 15-30working days. 3.Big orders will be delivered from our factory within 45 working days at most Shipment 1.By EMS,DHL,FedEx,TNT,UPS or other express. 2.By our forwarding agent(by air or by sea). 3.By your own forwarding agent. 4.By domestic forwarding agents to any city in China.
