| Prod Model: |
TJGL800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operating Frequency: |
6.8GHz |
| Wave Beam Angle: |
24 ° Tjgl-801, Tjgl-802, as Required |
| Measuring Range: |
0 ... 35m |
| Repeatability: |
3mm |
| Resolution: |
1mm |
| Sample: |
Echo Sampling 55 Times/S |
| Current Signal: |
4 ... 20mA |
| Antenna Material: |
PP/PTFE, 316L, as Required |
| Communication Interface: |
Hart Communication Protocol |
| Warranty: |
1 Year |
| Type: |
Radar Level Transmitter |
| Display Type: |
No LCD Display |
Product Description

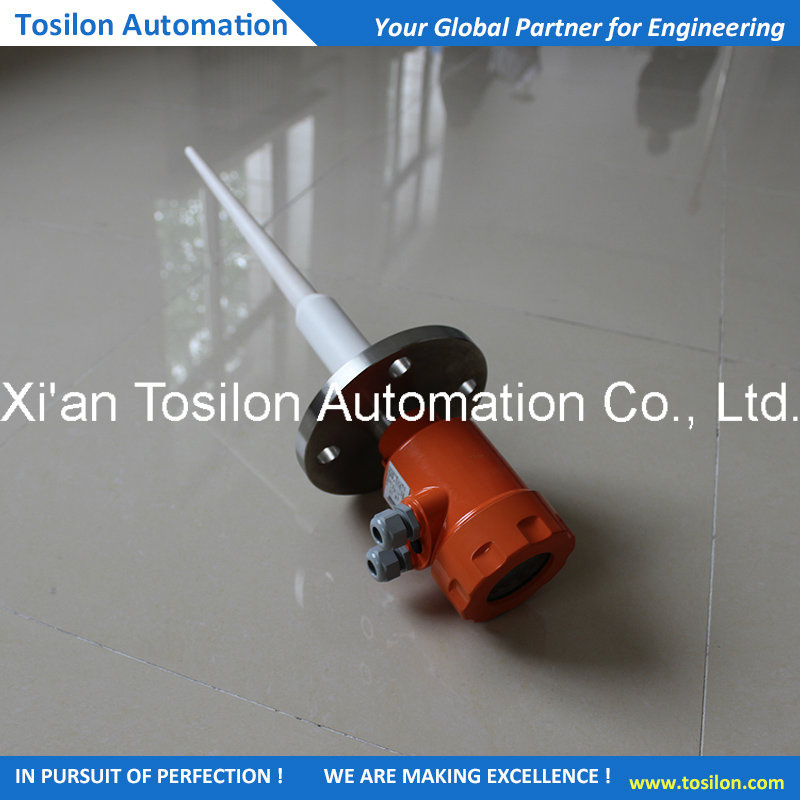

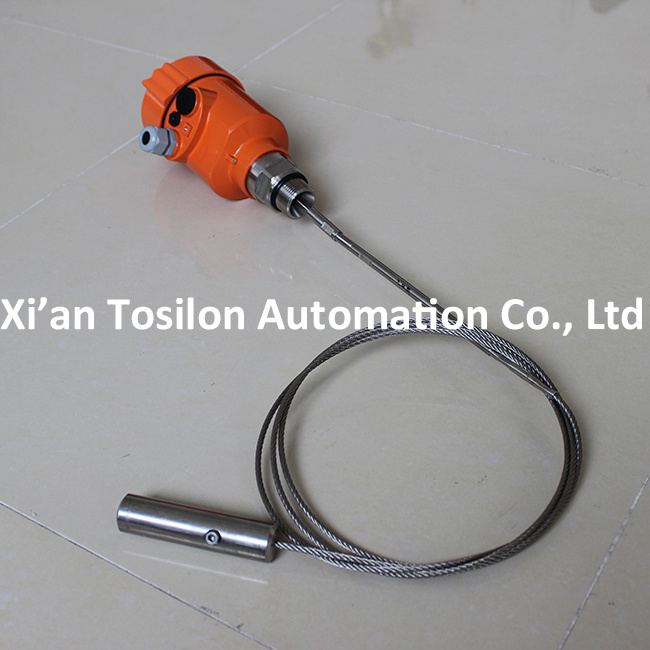

Tosilon Guided Wave Radar Level Transmitter for Liquid Tank (Ex Approved)Design and Manufacturing according to ATEX StandardIntroduction
Low emission energy very short microwave pulses through the launch and receive antenna systems. Radar speed of light running. Running time can be converted to the electronic components of level signals. Time extension of a special way to ensure stability in a very short time and accurate measurement.
Even more complicated conditions, the existence of a false echo, using the latest micro-processing technology, and debugging software can accurately analyze the echo of level.

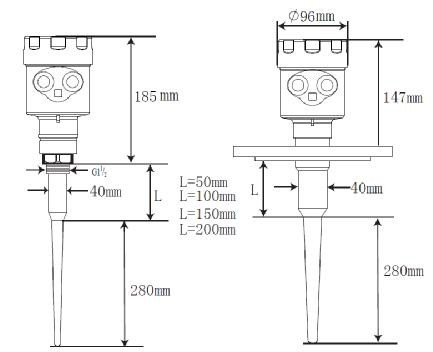

Outline Structure
Technical Data (For details, please contact Tosilon)Basic Parameters Measuring range
Operating frequency: 6.8GHz 0 ... 35m
Wave Beam angle
24 ° TJGL-801, TJGL-802
18 ° TJGL-803 with DN150 flange
14 ° TJGL-803 with DN200 flange
12 ° TJGL-803 with DN250 flange
Repeatability Resolution
± 3mm 1mm
Sample Response Speed
Echo Sampling 55 times/s > 0.2s (according to the specific use case may be)
Current Signal Accuracy
4 ... 20mA <0.1%
Antenna Material
TJGL-801,TJGL-802 PP/PTFE
TJGL-803 for the 316L stainless steel
Communication Interface
HART Communication Protocol
Process Connection
TJGL-801: (PP, PTFE Antenna), G1-1/2, 316L Stainless Steel
TJGL-802 (Rod Antenna), Flange DN50, DN80, DN100, DN150
TJGL-803 (Trumpet Form of Antenna), Flange DN50, DN80, DN100, DN150, DN200, DN250
Power Supply Ripple Voltage Power Consumption
24V DC (+ / -10%) 1Vpp max22.5mA For more information, please contact Tosilon
