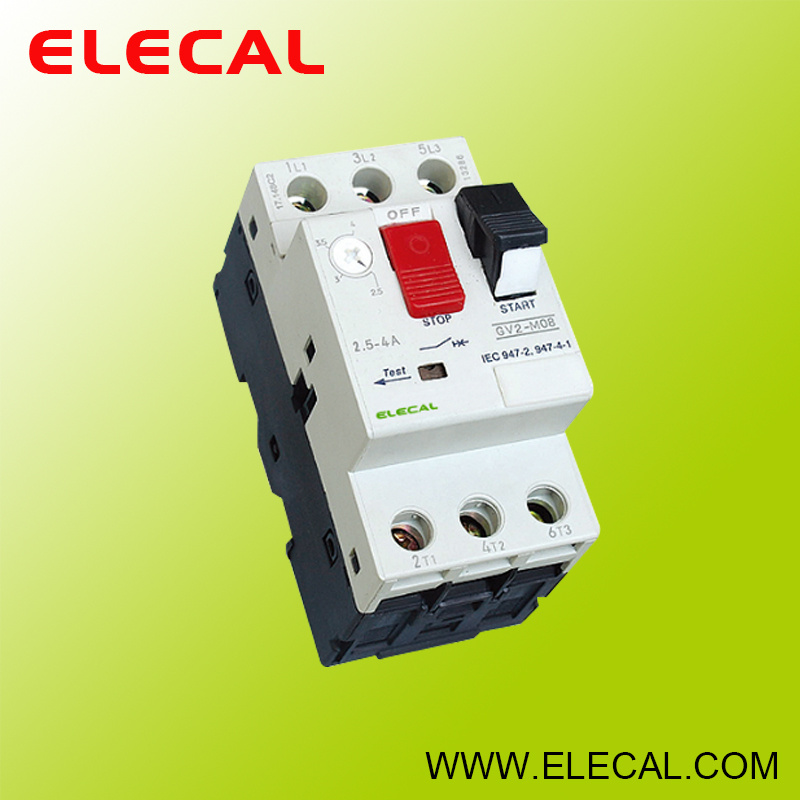

Gv Motor Protection Circuit Breaker

Name: Gv Motor Protection Circuit Breaker
Brand: all-electronics-online.com
SKU: 765488005
Availability: InStock
Rating: 4.9 (90 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	CCC

Product Description

1.Application

GV series motor protection circuit breaker are mainly used fo the overload and short circuit protection of the motor in AC 50/60Hz, up to 660V, 0.1-80A power circuit, as a full-voltage starter to start and cut off the motor, under the AC3 load or for the overload and short circuit protection of the circuit and power equipment in the power distribution network.

2.Specification

Type	Standard power ratings of 3-phase motors 50/60Hz in category AC-3	Current setting range (A)
220V	380V	415V	440V	500V	660V
kW	kW	kW	kW	kW	kW
GV1-M01	-	-	-	-	-	-	0.1-0.16
GV1-M02	-	-	-	-	-	-	0.16-0.25
GV1-M03	-	-	-	-	-	-	0.25-04
GV1-M04	-	-	-	-	-	0.37	0.4-0.63
GV1-M05	-	-	-	0.37	0.37	0.55	0.63-1
GV1-M06	-	0.37	-	0.55	0.75	1.1	1-1.6
GV1-M07	0.37	0.75	1.1	1.1	1.1	1.5	1.6-2.5
GV1-M08	0.75	1.5	1.5	1.5	2.2	3	2.5-4
GV1-M10	1.1	2.2	2.2	3	3.7	4	4-6
GV1-M14	2.2	4	4	4	5.5	7.5	6-10
GV1-M20	4	7.5	7.5	7.5	10	11	10-16
GV1-M21	5.5	10	9	9	11	15	16-20
GV1-M22	5.5	11	11	11	15	18.5	20-25
GV2-M32	7.5	15	15	15	18.5	26	24-32
GV3-M25	5.5	11	11	11	15	18.5	16-25
GV3-M40	11	18.5	22	22	25	33	25-40
GV3-M63	15	30	33	33	40	55	40-63
GV3-M80	22	40	45	45	55	63	56-80
