Gw4 Series Two-Column AC Disconnectors (40.5~252kV) , Circuit Breaker

Name: Gw4 Series Two-Column AC Disconnectors (40.5~252kV) , Circuit Breaker
Brand: all-electronics-online.com
SKU: 707914825
Availability: InStock
Rating: 4.7 (22 reviews)

Price:	US $ 2000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	RTL-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Fixed
Structure:	ACB
Poles Number:	1
Certification:	CCC

Product Description

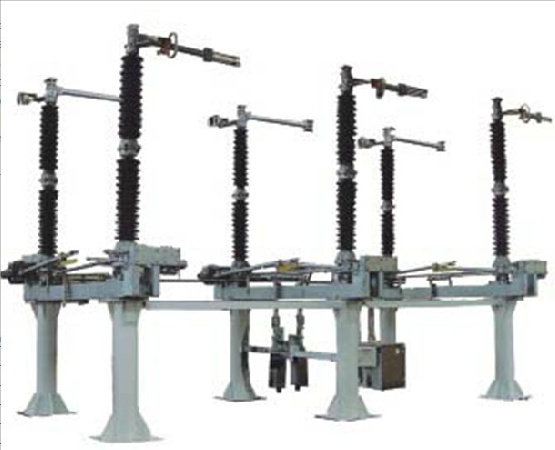

Gw4 Series Two-Column AC Disconnectors (40.5~252kV),Circuit Breaker

-Application:

In rated voltage 40.5~252kV power system, for separating the circuits under off-load status, setup air electrical clearing between the tested electrical apparatuses and electrified circuit.
Ratings: Up to 252kV, 3150A
Standards: IEC 62271-102

-Features:

1. Outstanding performance and reliable operation;
2. Maintenance free due to its stable contact pressure and self-cleaning capability;
3. High anticorrosion capability;
4. Easy installation and adjustment.

- Technical Parameter as follows:

No.	Item				Unit	Parameter
1	Rated Voltage				KV	40.5	126	145	252
2	Rated Current				A	630, 1250	1250, 2000	1250, 2000	1250, 2000, 3150
3	Rated Short Time Withstand Current, 3s				KA	31.5	31.5, 40	31.5, 40	31.5, 40, 50
4	Rated Peak Withstands Current				KA	80	80, 100	80, 100	80, 100, 125
5	Rated Power Frequency Withstand Voltage (rms)		To Earth		KV	95	230	275 (330)	460
5	Rated Power Frequency Withstand Voltage (rms)		Open Contacts		KV	110	265	315 (378)	530
6	Rated Lightning Impulse Withstand Voltage (peak)		To Earth		KV	185	550	650 (780)	1050
6	Rated Lightning Impulse Withstand Voltage (peak)		Open Contacts		KV	215	630	750 (900)	1200
7	Rated Tension of Connecting Terminal		Longitudinal		N	750	1000	500	1500
			Horizontal			400	750	170	1000
			Vertical			500	1000	1000	1000, 1250
8	Creepage Distance		II		mm/KV	20	20	20	20
			III			25	25	25	25
			IV			31	31	31	31
9	Minimum Failing Load				N	4000	4000, 6000	4000, 6000	6000, 8000
10	ES Induction Current Switching Capacity	Electromagnetic Coupling		Rated Induction Current	A	-	50	80	80
		Electromagnetic Coupling		Rated Induction Voltage	KV	-	0.5	2	1.4
		Electrostatic Coupling		Rated Induction Current	A	-	0.4	2	1.25
		Electrostatic Coupling		Rated Induction Voltage	KV	-	3	6	5
11	Bus Switching Transferring Circuit				A	-	1600	1600	1600
12	Mechanical Life				Time	3000	3000	3000	3000
13	Single Pole Weight				Kg	80	240	300	650
