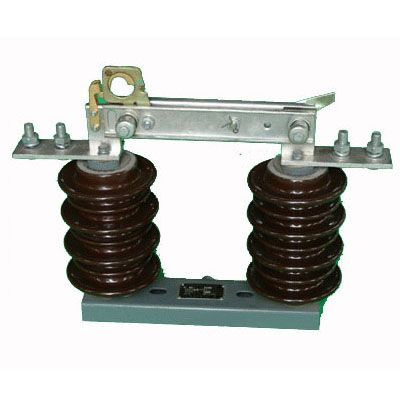

Gw9 Outdoor High Voltage Isolating Switches

Name: Gw9 Outdoor High Voltage Isolating Switches
Brand: all-electronics-online.com
SKU: 817304215
Availability: InStock
Rating: 4.4 (82 reviews)

Price:	US $ 1-5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GW9
Applicaton:	Distribution and Translation
Type:	High-voltage
Structure:	Double-column Disconnector
Installation:	Outdoor High-voltage
Operation:	Manual
Grounding:	Single Ground
Series:	Three
Run:	Vertical Rotation
Switching Mode:	Single Throw-in
Certification:	ISO
Common Model:	Gw9
Brand:	Powery

Product Description

Product Info
1. Material: Porcelain
2. Structure: ACB
3. Connection Method: Fixed
4. Color: customized
5. Application:The"GW9-12type outdoor high voltage isolator switch is the high voltage switch equipment of single phase AC50Hz. The product is suitable for power system with rated voltage 12KV to make or break power supply under circumstances of high voltage.
6. Structure feature:
GW9-12 disconnect switch is single type
1. This series switch have normal and anti-pollute models, it includes pedestal, supporting insulator, the dominate electric circuit
part and self-lock device. It use the switch type structure to break and close the line. Every phase switch is made of two conductive blade, the external blade is fixed with pressure spring. If you adjust yhe height of spring, you can get the needed contact pressure value of the change of the switch.
2. Each pole have two pieces blade, there is press spring near press, there is a support structure on the blade, it can be locked after closing, so it will not be closed by itself under any condition, under normal or short-circuit condition, it can ensure the reliable performance of dynamic and thermic stability
6. echnical specification:

Model	Rated voltage(KV)	Rated current(KA)	Rated peak withstand current(KA)	Rated time withstand current(KA)	Rated short-circuit period(s)	Note

GW9-12/200	12	200	8	31.5	4	No self-locking
GW9-12/400		400	31.5	12.5
GW9-12/630		630	40	16
GW9A-12/200	12	200	8	31.5	4	self-locking
GW9A-12/400		400	31.5	12.5
GW9A-12/630		630	40	16

Shanghai Powery Industries Co., Ltd. Located in Shanghai China, our factory located in the beautiful seaside city--Qingdao, covering more than 10000sqm, with the workshop covering an area of 5000sqm, is a advanced management company, which is about 15 minutes' drive away from the Qingdao airport and about half-hour's drive away from the port.

We are engaged in the design, manufacture and marketing services of rigging, vessel and container fittings, electric power fittings, and high and low voltage transmission and distribution line fittings. We have been equipped all kinds of forging machines, casting machines, punching machines, lathes and drilling machines. "Quality and Service" is our top belief. Our products have been exported to Asia, America and Africa for many years. Most of our friends and customers are satisfied with our quality and services, on the basis of which, long-term friendships have been established.

Being ISO9001: 2008 certified and with permits for all products, we produce all products according to relative International Standards and customers' requirements.

You and your esteemed company are welcomed to visit us. Our best services, famous Qingdao beach sightseeing and delicious seafood are waiting for your presence.
