GWE CCFX series intensive type busbar

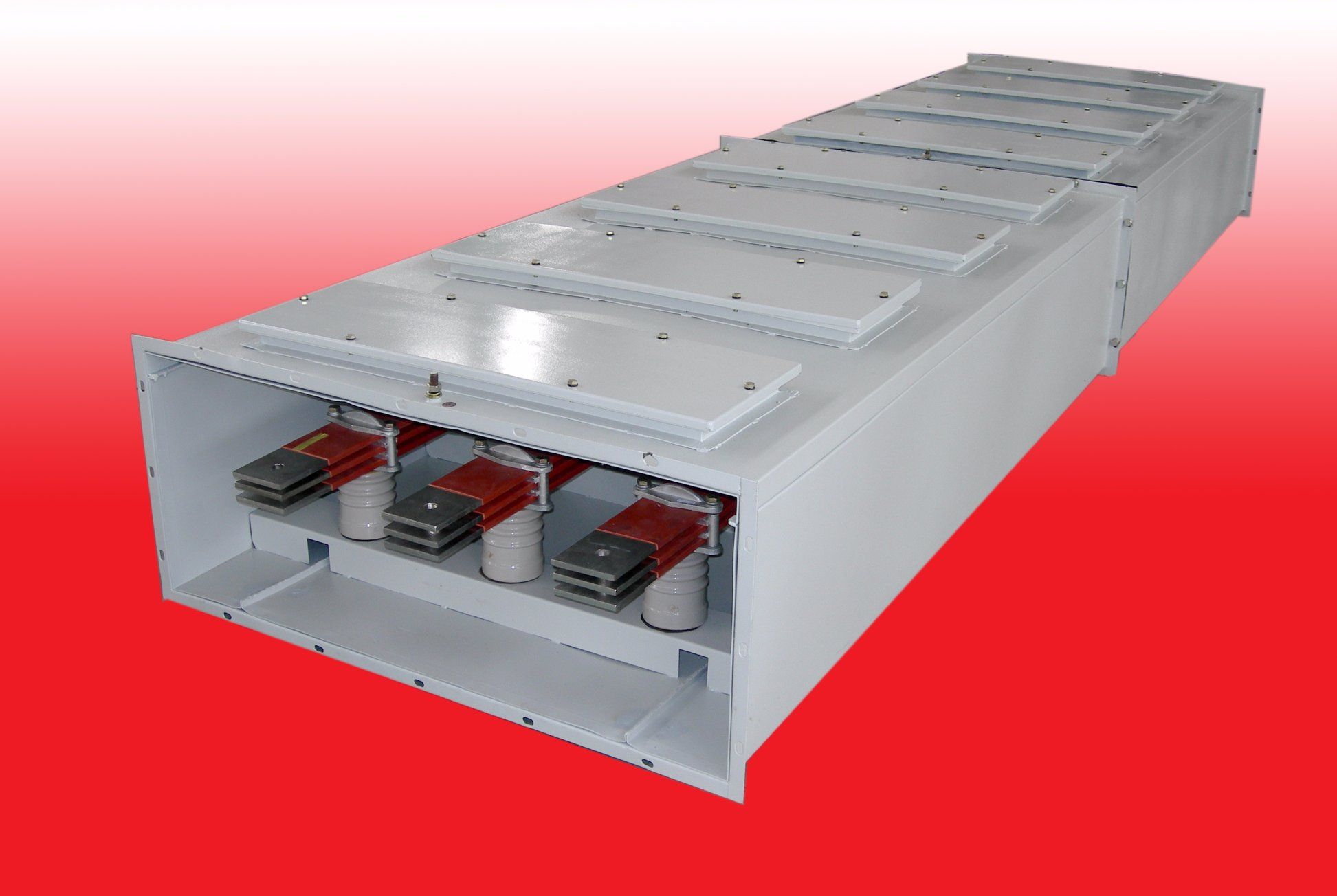

Name: GWE CCFX series intensive type busbar
Brand: all-electronics-online.com
SKU: 838521975
Availability: InStock
Rating: 4.8 (71 reviews)

Price:	US $ 20-200/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	busbar CCFX
Type:	busbar for your Power distribution equipment
Structure:	long, elbow,intensive, Fully enclosed air reinforc
Size:	1 unit,2 unit, 3 unit , 4 unit etc.
Application Range:	high-rise buildings,power plants etc.
Shell Protection Grade:	23,30,55,56
Brand:	GWE

Product Description

1. Application:
CCFX Series intensive type Busbar is widely used in power stations, distribution rooms, industrial buildings, malls, high-rise buildings and so on that is regard as supply and distribute equipment transport power energy. It has many advantages, such as a good cooling performance, compact structure, good shape, economical and practical, reliable power supply, quick installation and convenient, which is a perfectly big equipment for current transport power.
2.Condition of work and installation

-5ºC+40ºC,24h +35ºC.

The lowest environment temperature is -5ºC, the highest environment temperature is +40ºC, and within 24 hours, the average temperature is not more than + 35 ºC.
2000m,2000m.
The installation site altitude is no more than 2000 m, when exceed 2000m, it is need special order.
,+40ºC50%;.+20ºC,90%,\.
Clean air in installation site, at the highest temperature is + 40 ºC relative humidity less than 50%, high relative humidity is allowed at lower temperatures. Such as, at the +20ºC, relative humidity is 90%, however, due to temperature change, it is need pay attention to production moderate condensation.

3.Main technical parameter

Name	Parameter
Frequency Hz	50(60)
V Rated insulator voltage	1000
V Rated operational voltage	220 380 690 Alternating current
A Rated current	100 160 200 250	400 630 800	1000 1250 1500	1600 2000 2500 3150	4000 5000 6300
KA/S Rated short time withstand current	12	30	50	80	100
KA Rated peak withstand current	25	63	105	176	220
wiring system	Three phase three wires Three phase four wires Three phase five wires
Protection grade	IP54

Lanzhou Great Wall Electrical Power Equipment Co., Ltd. (EPE for short) is established in 2009, and is the centralized export business platform of Lanzhou Great Wall Electrical Corporation (GWE for short). The main business is to market high-voltage, medium-voltage and low-voltage switchgear and electrical components, system integration for projects at abroad.

Great Wall Electrical products are widely used in power generation, transmission and distribution, nonferrous metals, metallurgy, petrochemical, coal, transportation, municipal infrastructure construction and other areas of the national economy.

The company's products export to about 62 countries and regions in Europe, Aisa, Africa, Austria, America. At current our company has established office agencies in North America, Southeast Asia, South Asia and Middle East. Company adopts direct and indirect export marketing mode, formed a certain scale of export in the international market, yearly adding up sales of $100 million in recent years. Company overseas customer focus on Aluminum distribution box in America, subway project in Pakistan, social housing project in Angola, the state grid project in Equatorial Guinea.
