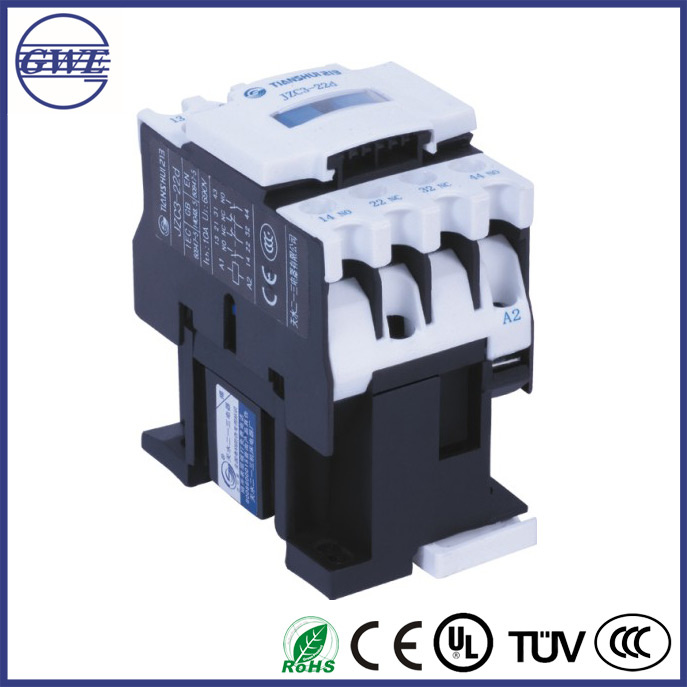

Name: GWE Contactor Type Relay
Brand: all-electronics-online.com
SKU: 835424625
Availability: InStock
Rating: 5 (113 reviews)

Price:	US $ 6.41-6.5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JZC3-d(GWE)

Product Description

JZC3-d range contactor type relay is used in 50Hz (or 60Hz), in circle voltage is up to 380V and DC voltage is up to 220V, for controlling various electromagnetic coil, expending information or transmission signal.

Type	Power frequency Hz	Coil Voltage V
Type	Power frequency Hz	24	48	110	220	380	415
JZC3-d	60	/	/	/	/	Q	/
JZC3-d	60	/	/	/	/	/	Q
JZC3-d	50/60	B7	E7	F7	M7	/	/

Type	Contact volume
Type	Open (NO)	Close(NC)
JZC3-40d	4	0
JZC3-31d	3	1
JZC3-22d	2	2
JZC3-13d	1	3

Parameters		JZC3-d
Standard		IIc60947-5; GB14048.5
Rated insulation voltage		690
Rated work voltage		AC:380V,DC:220V
Rated current Inductive load	AC-15 (380V)	0.95
	DC-13(220V)	0.15

Lanzhou Great Wall Electrical Power Equipment Co., Ltd. (EPE for short) is established in 2009, and is the centralized export business platform of Lanzhou Great Wall Electrical Corporation (GWE for short). The main business is to market high-voltage, medium-voltage and low-voltage switchgear and electrical components, system integration for projects at abroad.

Great Wall Electrical products are widely used in power generation, transmission and distribution, nonferrous metals, metallurgy, petrochemical, coal, transportation, municipal infrastructure construction and other areas of the national economy.

The company's products export to about 62 countries and regions in Europe, Aisa, Africa, Austria, America. At current our company has established office agencies in North America, Southeast Asia, South Asia and Middle East. Company adopts direct and indirect export marketing mode, formed a certain scale of export in the international market, yearly adding up sales of $100 million in recent years. Company overseas customer focus on Aluminum distribution box in America, subway project in Pakistan, social housing project in Angola, the state grid project in Equatorial Guinea.
