GWE DC Operate Contactor Way Relay JZC3-dZ Range

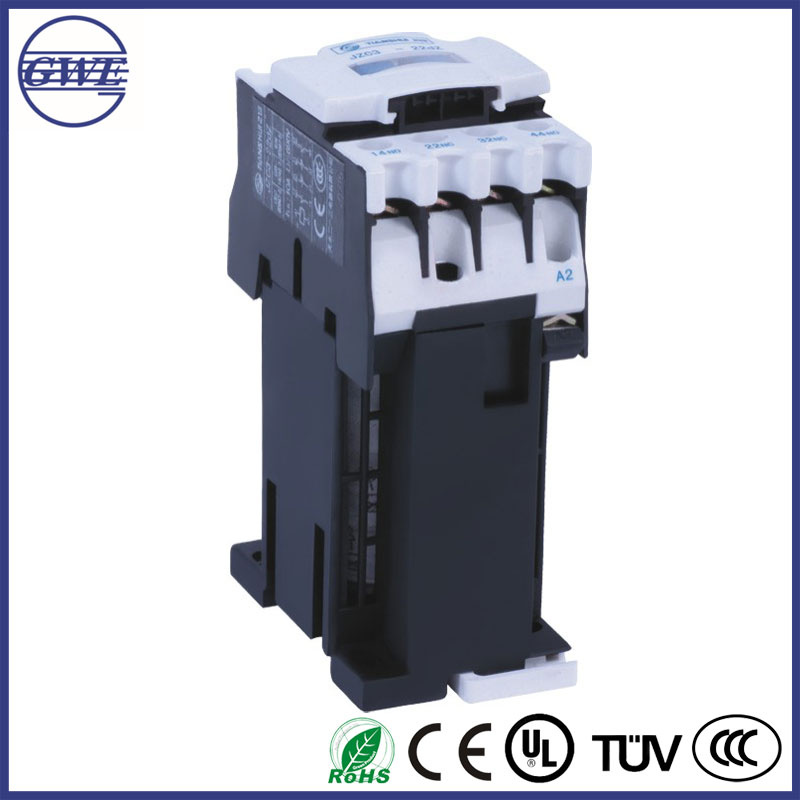

Name: GWE DC Operate Contactor Way Relay JZC3-dZ Range
Brand: all-electronics-online.com
SKU: 732013712
Availability: InStock
Rating: 4.5 (65 reviews)

Price:	US $ 15-30/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JZC3-dZ(GWE)

Product Description

1.STRUCTURE FEATURE
Direction-moving, double breaking contact terminals;
△ Both sides can be fixed auxiliary contact arrangement (F3-d1); can be added installation(F3-d) or air time-delay(SK4-d)on the above;
△  Wiring terminal can be added time-delay, absorption overload voltage and other function model.
△  Protect way: protect class IP10;
△  Compulsory friction structure contact, dynamic-static contact constitutes net contact, can enhance high contact reliability, and have self-cleaning effect.
2.WORKING AND INSTALLATION CONDITION
△  Ambient temperature: -25ºC~+60ºC;
△  Elevation≤3000m;
△  Relative humidity is not exceeding 85% at the maximum ambient     temperature +40ºC. Should give consideration to the dews, which would
    appear due to temperature change;
△  Pollution protection: Grade 3;
△  installing grade: Class II
△  Mounting way: mounted on screw or with 35mm standard rail.
△  rated work rule
a)  8h working rule
b)  intermittent work cycle rule, operation frequency≤12times/h
c) on going work rule
