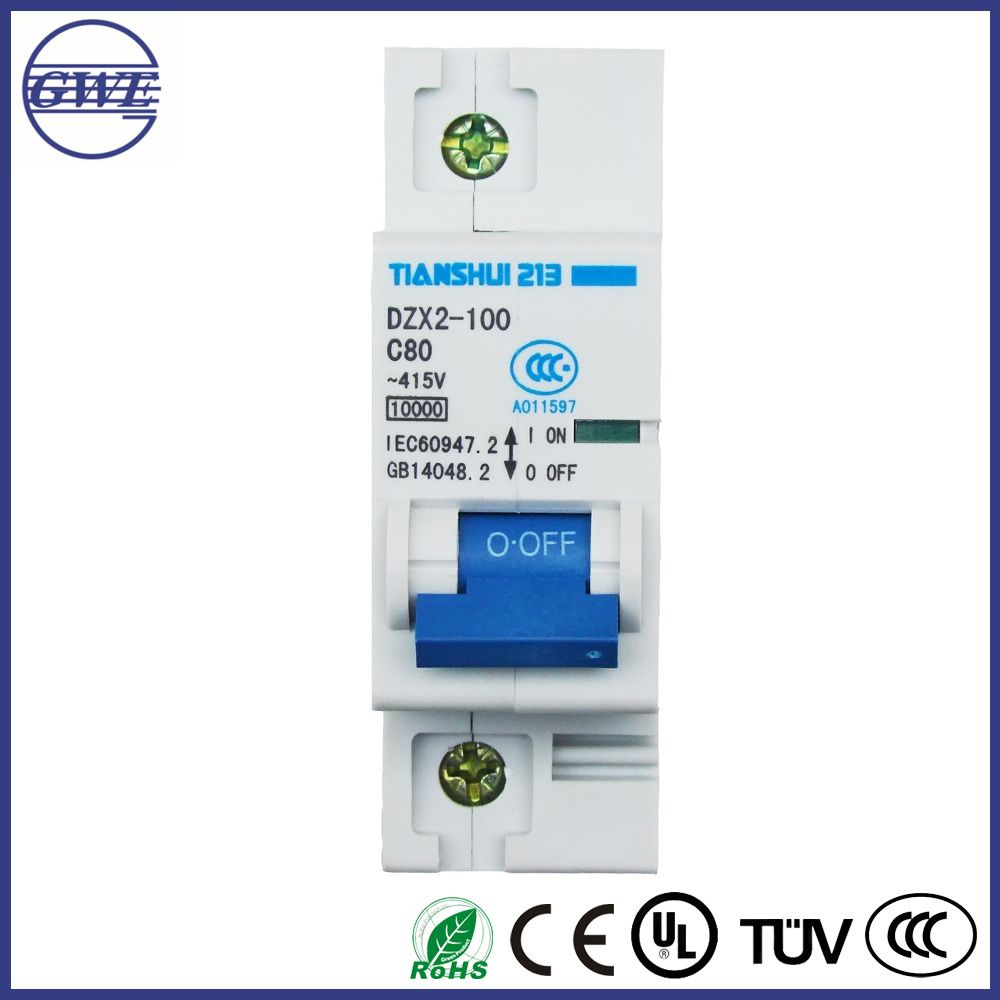

GWE DZX2/4-100 MCB

Name: GWE DZX2/4-100 MCB
Brand: all-electronics-online.com
SKU: 732013582
Availability: InStock
Rating: 4.3 (57 reviews)

Price:	US $ 6-250/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DZX2/4-100(GWE)
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Insert
Structure:	MCB
Certification:	CCC
Poles Number:	1,2,3,4

Product Description

no.	type	Instantaneous rated current	Initial state	Testing current	Order time	Expectancy ending	Benchmark temperature	remark
a	DZX2/4-100	ln≤63	cold state	1.05 ln	t≥1h	Not release	30ºC
		ln>63			t≥2h
b	DZX2/4-100	ln≤63	hated state (follow a)	1.30 ln	t<1h	Release		Testing current improve to order value in 5s
		ln>63			t<2h
c	DZX2-100	All standards of current	cold state	7 ln	0.2 s	Not release		Close auxiliary switch and put through current
	DZX4-100			10 ln
d	DZX2-100	All standards of current	cold state	10 ln	0.2 s	Release
	DZX4-100			14 ln

Lanzhou Great Wall Electrical Power Equipment Co., Ltd. (EPE for short) is established in 2009, and is the centralized export business platform of Lanzhou Great Wall Electrical Corporation (GWE for short). The main business is to market high-voltage, medium-voltage and low-voltage switchgear and electrical components, system integration for projects at abroad.

Great Wall Electrical products are widely used in power generation, transmission and distribution, nonferrous metals, metallurgy, petrochemical, coal, transportation, municipal infrastructure construction and other areas of the national economy.

The company's products export to about 62 countries and regions in Europe, Aisa, Africa, Austria, America. At current our company has established office agencies in North America, Southeast Asia, South Asia and Middle East. Company adopts direct and indirect export marketing mode, formed a certain scale of export in the international market, yearly adding up sales of $100 million in recent years. Company overseas customer focus on Aluminum distribution box in America, subway project in Pakistan, social housing project in Angola, the state grid project in Equatorial Guinea.
