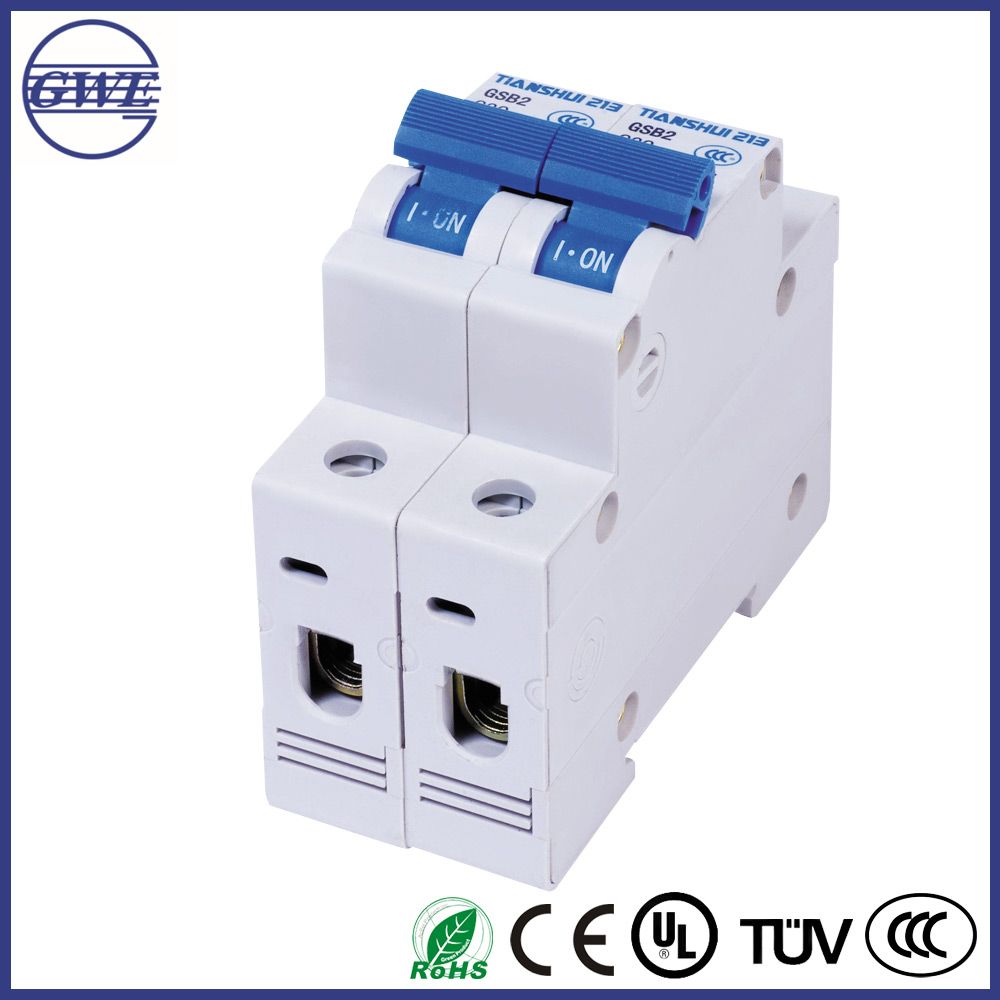

GWE GSB2 Series Mini Circuit Breaker

Name: GWE GSB2 Series Mini Circuit Breaker
Brand: all-electronics-online.com
SKU: 835181895
Availability: InStock
Rating: 5 (36 reviews)

Price:	US $ 3.14-16.82/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GSB2 (GWE)
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Installation:	Fixed
Structure:	MCB
Certification:	RoHS
Poles Number:	1,2,3,4

Product Description

GSB2 series mini breaker are mainly used in AC 50HZ or 60HZ,rated voltage up to 415V ,rated current up to 63A and below to protect the circuit equipment or devices and similar purpose, it also has isolation functions .the breakers can be match witch accessories such as the auxiliary contacts, the alarming contacts, shunt trip etc. So as to supply the auxiliary signals ans realize its remote breaking functions.

Basic technical parameters

Type	Instantaneous release type	Pole	Rated Voltage V	Rated current A
GSB2	B type, C type, D type	1P	240V	1,2,3,4,6,10,16,20, 25,32,40,50,63
		2P, 3P, 4P,	415V
GSB2-63Z GSB2-63G	Z type G type	1P	240V	1,3,6,10,16,20,32, 40,50,63
		2P, 3P, 4P,	415V

Instantaneous release type and applicable (as the following table )

Instantaneous release type	Applicable
B type	Purely resistive load and low sense of lighting system to provide line protection
C type	To protect normal load and distribution lines,cable
D type	Protection starting current impact load such as motors
GSB2-63Z	Lighting distribution
GSB2-63G	Industrial distribution
