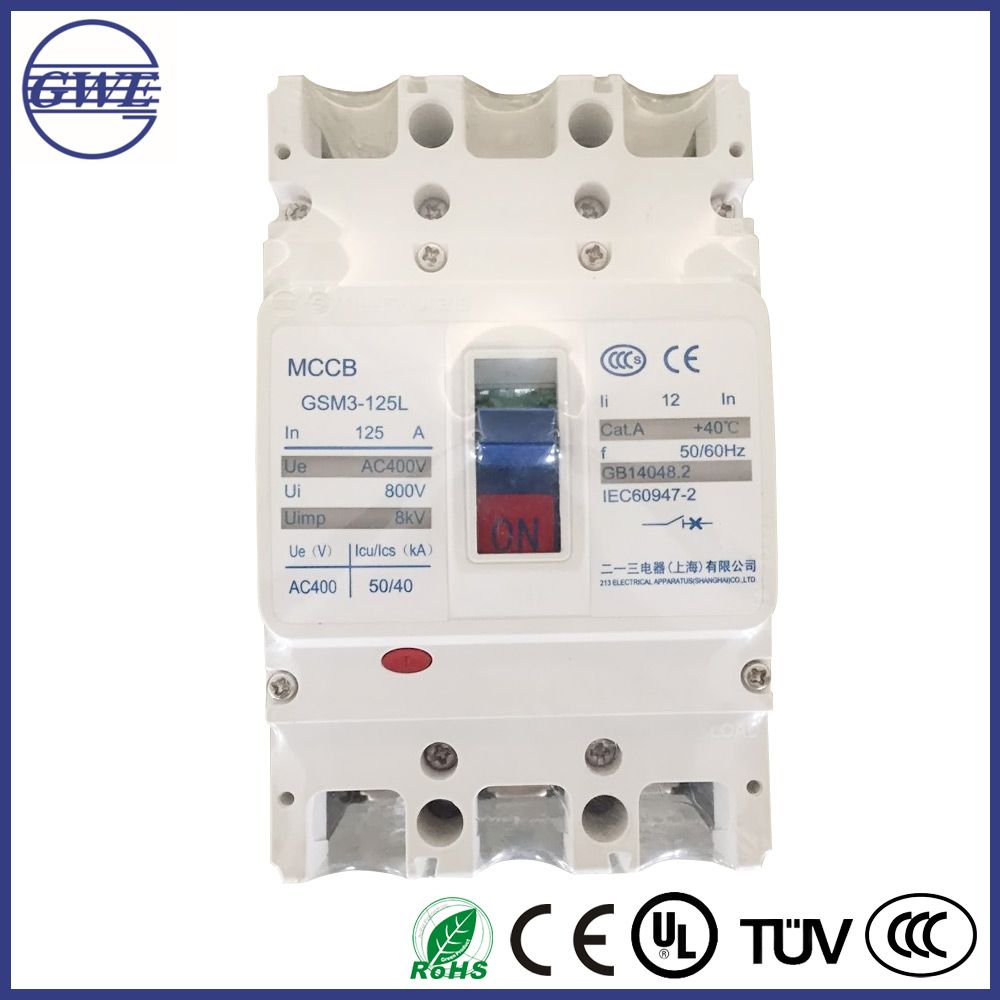

GWE GSM3 Series Moulded Case Circuit Breaker

Name: GWE GSM3 Series Moulded Case Circuit Breaker
Brand: all-electronics-online.com
SKU: 835420235
Availability: InStock
Rating: 4.4 (80 reviews)

Price:	US $ 124-730/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GSM3(GWE)
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Poles Number:	4
Certification:	CCC

Product Description

GSM3 series moulded case circuit breaker suitable for turn-on and turn-off not frequently and starting in a motor not frequently in a circuit of 50Hz/60Hz,rated insulation up to 800V,rated work voltage 690V or below,rated work current up to 800A. The breakers of 4 poles mainly suitable for cable short current protection,cable overload protection and turn-on and turn-off not frequently in the power supply system.meanwhile can open neutral contactor and leg contactor together as to keep high electric potential transferring and protection operators. Beside having short current and overload protection for circuit and motor. The breakers can assembly many function modules such as under-voltage realease, shunt realease, alarm contact, auxiliary contact, motor driven-operation device and so on, meeting all kinds of protection and control function.

Type	Rated current (A)	Icu/Ics KA Breaking capacity of limit short-circuit
Type	Rated current (A)	AC 400V	AV 690 V
GSM3-125L	10,16,20,25,32,40,50,63,80,100,125	50	/
GSM3-125M		75	20
GSM3-125H		100	/
GSM3-250L	100,125,140,160,180,200,225,250	50	/
GSM3-250M		75	20
GSM3-250H		100	/
GSM3-400L	225,250,315,350,400	50	/
GSM3-400M		75	20
GSM3-400H		100	/
GSM3-630L	400,500,630	55	/
GSM3-630M		75	20
GSM3-630H		100	/
GSM3-800L	630,700,800	50	/
GSM3-800M		75	35
GSM3-800H		100	/
