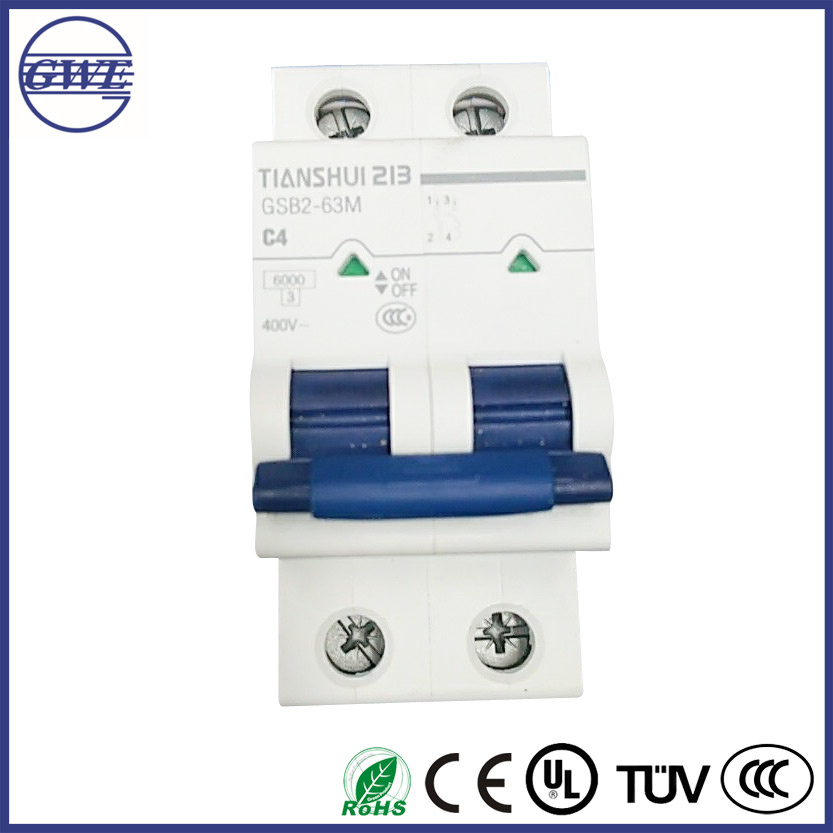

GWE GSB Series Miniature Circuit Breaker

Name: GWE GSB Series Miniature Circuit Breaker
Brand: all-electronics-online.com
SKU: 835417955
Availability: InStock
Rating: 4.9 (117 reviews)

Price:	US $ 7-71/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GSB1-63L/M/H(GWE)
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Certification:	CCC
Poles Number:	1p,2p,3p,4p

Product Description

GSB series miniature circuit breaker used for protection of industrial,civil construction,energy and infrastructure and other areas terminal distribution,including AC product is suitable for circuit with AC 50/60HZ,rated voltage to 415v,rated current to 63A,DC product is suitable for circuit with rated voltage up to 1000V,rated current to 63A.The full series of products all can add status indication contact,alarm indication contact and shunt trip accessories and other electrical accessories,and provide residual current action protection accessories and convenient wiring bus bar other electrical accessories,to help the circuit breaker to realize multiple functions.

description		GSB1-63L/M/H DC		GSB1-63L/M/H DC		GSB2-63L/M/H
poles		1P,2P,3P,4P
Rated current		1-63A
Breaking capacity		GSB1-63L Icu=4.5KA GSB1-63M Icu=6KA GSB1-63H Icu=10KA		GSB1-63L Icu=4.5KA (1P:AC220V/AC230V;2P/3P/4P:AC380V/400V/415V) GSB1-63M Icu=6KA (1P:AC220V/AC230V;2P/3P/4P:AC380V/400V/415V) GSB1-63H Icu=10KA (1P:AC220V/AC230V;2P/3P/4P:AC380V/400V/415V)		GSB2-63L Icu=4.5KA (1P:AC220V/AC230V;2P/3P/4P:AC380V/400V/415V) GSB2-63M Icu=6KA (1P:AC220V/AC230V;2P/3P/4P:AC380V/400V/415V) GSB2-63H Icu=10KA (1P:AC220V/AC230V;2P/3P/4P:AC380V/400V/415V)
Impulse withstand voltage		6KV		6KV		4KV
Current limiting level		3
Fast closing		To ensure reliable operation of load,prolong service life of the circuit breaker
Mechanical life		20000 times
Electrical life		10000 times
Environment		Use ambient temperature:-25ºC---+70ºC Storage ambient temperature:-40ºC---+80ºC
Anti wet and heat resistance		2 class(temperature is 55ºC,relative humidity 95%)
Reference weight	Model	1P	2P		3P		4P
	Weight	120	240		360		480

Lanzhou Great Wall Electrical Power Equipment Co., Ltd. (EPE for short) is established in 2009, and is the centralized export business platform of Lanzhou Great Wall Electrical Corporation (GWE for short). The main business is to market high-voltage, medium-voltage and low-voltage switchgear and electrical components, system integration for projects at abroad.

Great Wall Electrical products are widely used in power generation, transmission and distribution, nonferrous metals, metallurgy, petrochemical, coal, transportation, municipal infrastructure construction and other areas of the national economy.

The company's products export to about 62 countries and regions in Europe, Aisa, Africa, Austria, America. At current our company has established office agencies in North America, Southeast Asia, South Asia and Middle East. Company adopts direct and indirect export marketing mode, formed a certain scale of export in the international market, yearly adding up sales of $100 million in recent years. Company overseas customer focus on Aluminum distribution box in America, subway project in Pakistan, social housing project in Angola, the state grid project in Equatorial Guinea.
