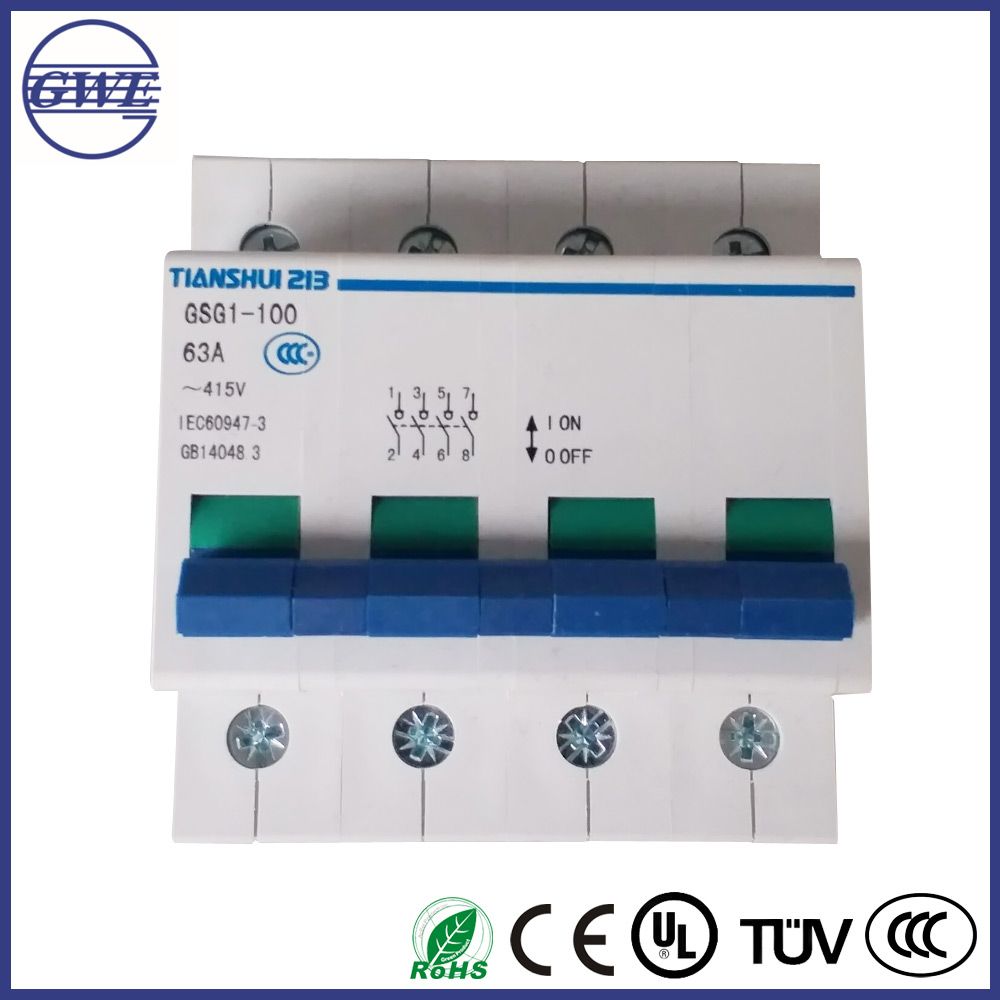

GWE GSG1-100 Series Separated Switch

Name: GWE GSG1-100 Series Separated Switch
Brand: all-electronics-online.com
SKU: 835188245
Availability: InStock
Rating: 4.8 (84 reviews)

Price:	US $ 2.14-9.27/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GSG1(GWE)
Type:	Separated Switch
Kind:	1,2,3,4 Pole

Product Description

GSG1-100 series separated switch (shorted form separated switch) mainly use in the electricity-distribution networks as the master switch of power supply to break or make the circuit with loads. When it in switching -on status, it can take the normal working current as well as the specified faulty current within the specified time to ensure the power continuousness of the network and circuits; while it is in the switching -off status, it can provide the reliable insulation gap to make the electricity-consumer equipment as well as the circuit to be isolated with the power supply and to prevent the electricity-consumer equipment from being damaged due to the over voltage and also ensure the safety maintenance working for the electricity-consumer equipment.

Item	Parameters
Type	GSG1-100
Usage classification	AC -22A
Rated insulation Voltage	415V
Rated operating current	240V /415V
Frequency	50/60HZ
Conventional thermal	100A
Rated operating current	32A,63A,100,
Pole	1,2,3,4
Rated impulse withstand voltage	6000V
Short-time with stand current	20Ie time tolerance 1s
Rated short-circuit the ability to connect	30Ie making time ≥ 0.1s
