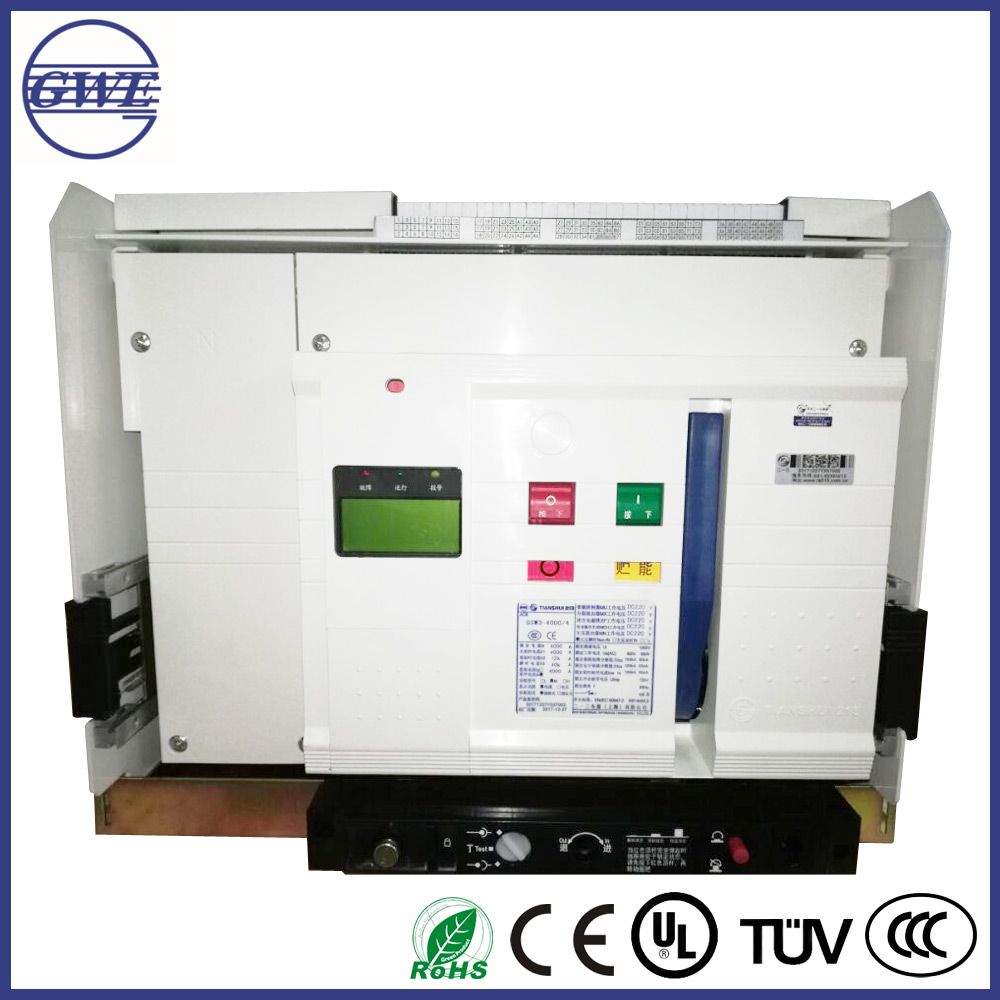

GWE GSW3 Universal Circuit Breaker

Name: GWE GSW3 Universal Circuit Breaker
Brand: all-electronics-online.com
SKU: 834885425
Availability: InStock
Rating: 4.7 (43 reviews)

Price:	US $ 1640-21668/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GSW3 (GWE)
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	ACB
Certification:	CCC
Poles Number:	3,4

Product Description

Type	Draw-out	GSW3-2500	GSW3-4000
	Fixed
Poles		3P, 4P	3P, 4P
Rated Current In (A)		630,800,1000, 1250,1600,2000,2500	2000,2500,2900,3200,3600,4000
Rated Operational Voltage Ue(V)		AC400,690V, 50Hz
Rated Insulation Voltage Ui(V)		AC1000V, 50Hz
Rated Impulse Withstand Voltage Uimp(kV)		12
Power Frequency Withstand Voltage U(V)		AC3500V, 1min 50Hz
Rated Limit Short Circuit Breaking Ability Icu(kA)	400V	85	100
	690V	65	85
Rated Running Short Circuit Breaking Capability Ics(kA)	400V	85	100
	690V	65	85
Rated Short-Time Withstand Current Icw(kA)/1s	400V	85	100
	690V	65	85
Rated Short-Time Making Capacity Icm(kA)	400V	187	220
	690V	143	187

Lanzhou Great Wall Electrical Power Equipment Co., Ltd. (EPE for short) is established in 2009, and is the centralized export business platform of Lanzhou Great Wall Electrical Corporation (GWE for short). The main business is to market high-voltage, medium-voltage and low-voltage switchgear and electrical components, system integration for projects at abroad.

Great Wall Electrical products are widely used in power generation, transmission and distribution, nonferrous metals, metallurgy, petrochemical, coal, transportation, municipal infrastructure construction and other areas of the national economy.

The company's products export to about 62 countries and regions in Europe, Aisa, Africa, Austria, America. At current our company has established office agencies in North America, Southeast Asia, South Asia and Middle East. Company adopts direct and indirect export marketing mode, formed a certain scale of export in the international market, yearly adding up sales of $100 million in recent years. Company overseas customer focus on Aluminum distribution box in America, subway project in Pakistan, social housing project in Angola, the state grid project in Equatorial Guinea.
