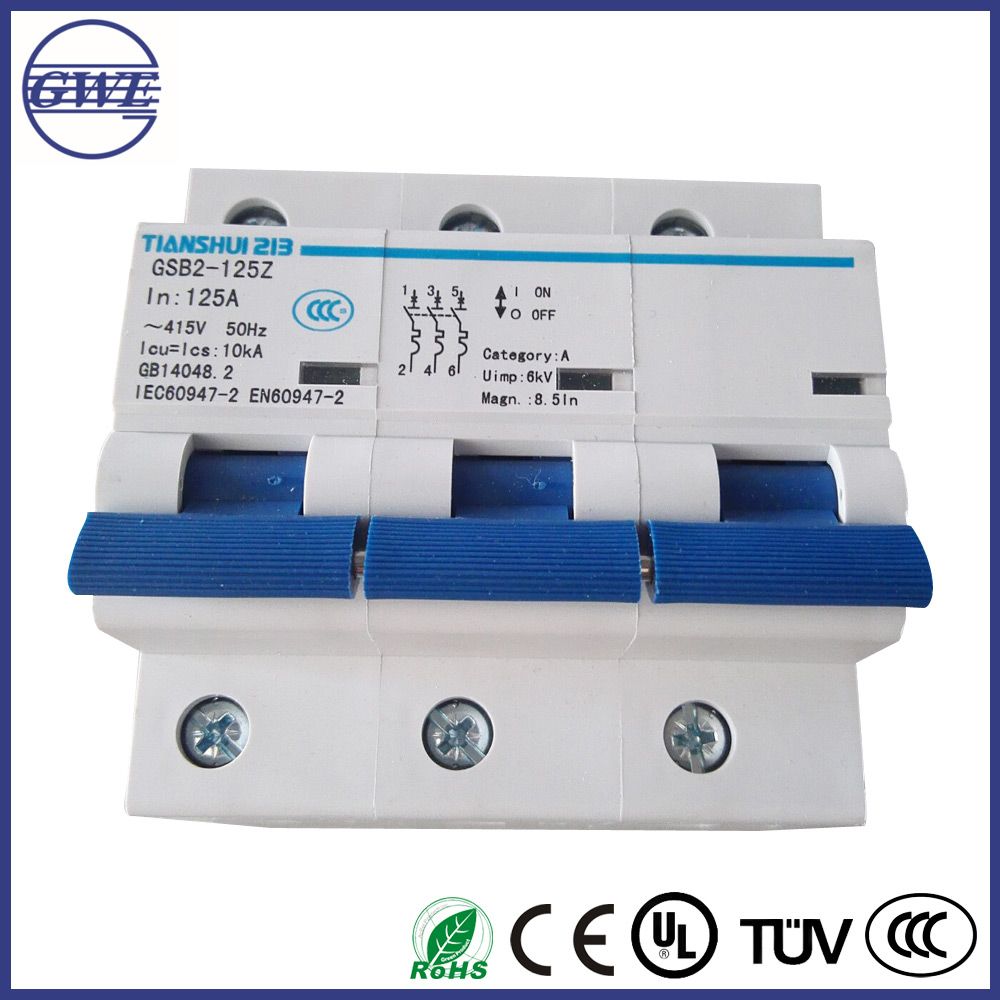

GWE Moulded Case Circuit Breaker (MCB)

Name: GWE Moulded Case Circuit Breaker (MCB)
Brand: all-electronics-online.com
SKU: 835404915
Availability: InStock
Rating: 4.8 (121 reviews)

Price:	US $ 7-50/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GSB2-125(GWE)
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Certification:	RoHS
Poles Number:	2-4

Product Description

Type	GSB2-125
Type of instantaneous release	C curve (GSB2-125Z), D curve (GSB2-125G)
Rated insulation voltage Ui(V)	AC 500V
Rated operational voltage Ue (A)	1P	AC 240V
	2P, 3P, 4P	AC 415V
Rated frame size Inm (A)	125A
Rated operational current In(A)	50A, 63A, 80A, 100A, 125A
Rated service short circuit breaking capacity (A)	10000A
Rated impulse withstand voltage (V)	4000V
Mechanical life (times)	10000
Protection grade	IP20
Poles	1P, 2P, 3P, 4P
Width of one pole	27mm
Wiring capacity	25mm²

Lanzhou Great Wall Electrical Power Equipment Co., Ltd. (EPE for short) is established in 2009, and is the centralized export business platform of Lanzhou Great Wall Electrical Corporation (GWE for short). The main business is to market high-voltage, medium-voltage and low-voltage switchgear and electrical components, system integration for projects at abroad.

Great Wall Electrical products are widely used in power generation, transmission and distribution, nonferrous metals, metallurgy, petrochemical, coal, transportation, municipal infrastructure construction and other areas of the national economy.

The company's products export to about 62 countries and regions in Europe, Aisa, Africa, Austria, America. At current our company has established office agencies in North America, Southeast Asia, South Asia and Middle East. Company adopts direct and indirect export marketing mode, formed a certain scale of export in the international market, yearly adding up sales of $100 million in recent years. Company overseas customer focus on Aluminum distribution box in America, subway project in Pakistan, social housing project in Angola, the state grid project in Equatorial Guinea.
