Gydts Outdoor Ribbon Optical Fiber Cable for Network

Name: Gydts Outdoor Ribbon Optical Fiber Cable for Network
Brand: all-electronics-online.com
SKU: 727199792
Availability: InStock
Rating: 4.6 (70 reviews)

Price:	Negotiable/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYDTS
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC-SC
Certification:	Tlc
Brand:	Dumei
Sheath Material:	PE

Product Description

Gydts Outdoor Ribbon Optical Fiber Cable for Network

Cable Type:GJDTS
Tube Type Optical Fiber
Central Strength Member
SZ layer stranded fiber filling with special filling Compound
Double APL adheres tightly with PE Sheath

Description
The ribbon fibers, are positioned in a loose tube made of a high modulus plastic. The tube and filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene(PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes(and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate(APL) is applied around the cable core, which is filled the filling compound to protect if from water ingress. Then, the cable is completed with a PE sheath.

Application:
1,Long distance and local area network
2,Suitable for Aerial and pipeline laying method
3,Operating Temperature:-40ºC-+60ºC

Cable Characteristic:
1,Low dispersion and attenuation
2,Proper design,precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental performance.
3,Strength Member and water blocking filling compound is applied to keep the cable moisture proof and water proof
4,Fiber counts are high and intensive.

Note:
1. To design flame retardant ,anti-rodent,anti-ant cable for customers.
2. The construction of GYDTS is plastic coated steel tape,PE sheath ,other construction is the same as the items described.

Product perameter

Model Number	GYDTS
Type	Optical Fiber
Number of Conductors	Multicore
Certification	TLC, ISO
OEM	Welcome to OEM
Jacket Material	PE
Outdoor Laying Mod	Access network fiber ribbon cable
Standards	YD/T981 ,IEC6O794
Application	1.Duct/Aerial 2.Metropolitan area network and access network etc.
Operating Temperature	-40 to 60 degree

Technical parameters:

Items		unit	Details
Fiber counts		--	Multicore
Optical fiber	Type	--	G652D
PE sheath		--	YES
Tension (Long/Short Term)		N	600/1500
Crush (Long/Short Term)		N/100mm	300/1000
Min. Bending radius		Dynamic	30times cable diameter
Min. Bending radius		Static	15times cable diameter
Temperature range		Operation	-40°C to 60°C
Application			Outdoor

1, Cable Factory

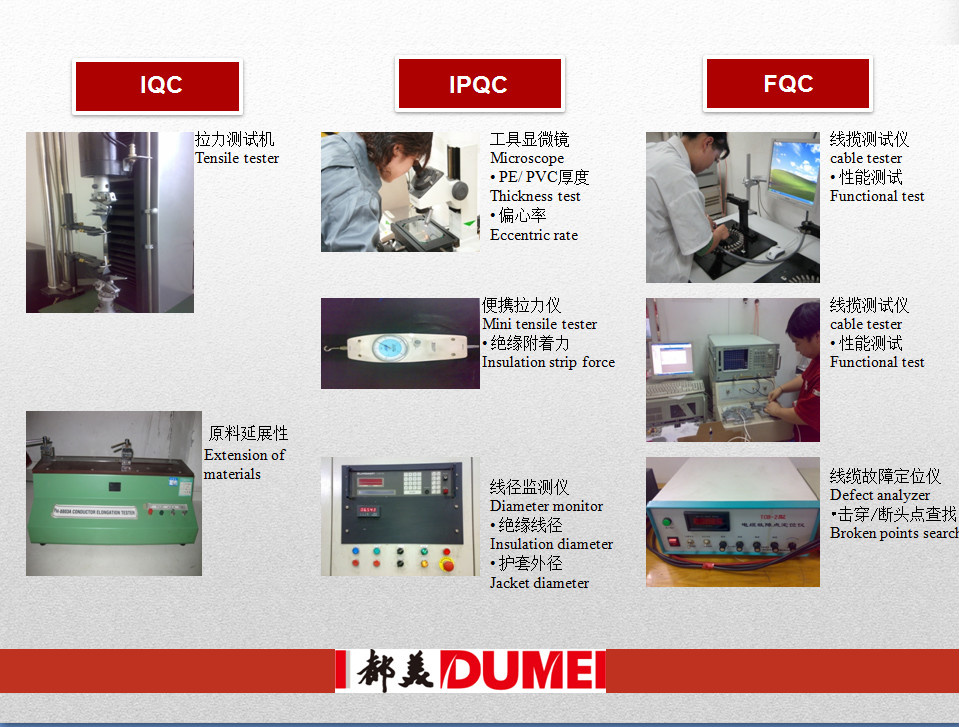

2, Advanced Measurement Equipments

3, Certifications

4, Contact Information

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect o UR service, we provide the products with good quality at the reasonable price.
