Gyftc8s Figure 8 Aerial FRP Strength Member Optical Fiber Cable

Name: Gyftc8s Figure 8 Aerial FRP Strength Member Optical Fiber Cable
Brand: all-electronics-online.com
SKU: 801350235
Availability: InStock
Rating: 4.6 (30 reviews)

Price:	US $ 0.5-10/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SL-GYFTC8S
Tensile Strength:	Over 1000n
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	SC
Certification:	CCC
Sheath Material:	PE

Product Description

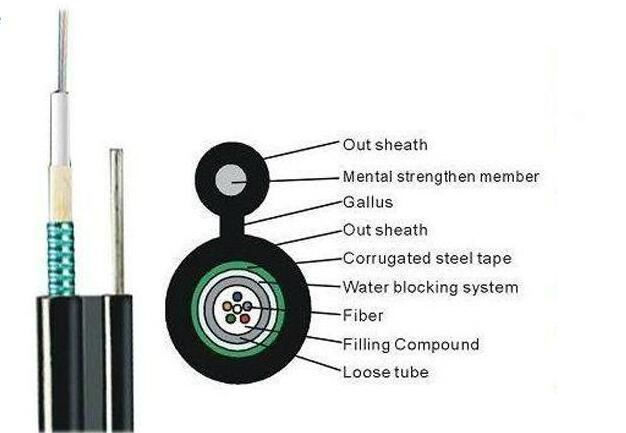

GYFTC8S Figure 8 aerial FRP Strength Member optical fiber cable

Introduction	GYXTC8S type optical cable is center pipe loosing jacket filling type,steel-PE adhesive jacket,8 font self undertaken type communication outdoor optical cable.
Characteristics	Being used full section water retardant structure it possesses good water retardant and dampproof property
	Special factice is filled into inside of loosing jacket and takes key protection to optical fiber
	Vertical wrapped steel strip strengthens resisting lateral pressure ability
	8 font self undertaken type structure possesses high tensile strength and is convenient for aerial installation and its installation cost is cheap
	The service life of the product will be more 30 years
Standards	Complies with standard YD/T 1155-2001 as well as IEC60794-1.

Technical Parameters of GYXTC8S

Cable type	Fiber count	Max fiber count	Cable diameter mm	Cable weight Kg/km	Tensilse Strength Long/Short term N	Crush Resistance Long/Short term N
GYXTC8S-2-8	2-8	8	8.1×16.9	117	≥2000/≥6000	≥300/≥1000
GYXTC8S -10-12	10-12	12	8.1×16.9	121	≥2000/≥6000	≥300/≥1000

Package


Package 1	Package 2
Package 1: usually for indoor cable, light weight cables. Package 2: usually for outdoor cable, heavy weight cables Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

Mark

Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross / Net weight
3. Drum No: XX
4. Cable Length : XX
