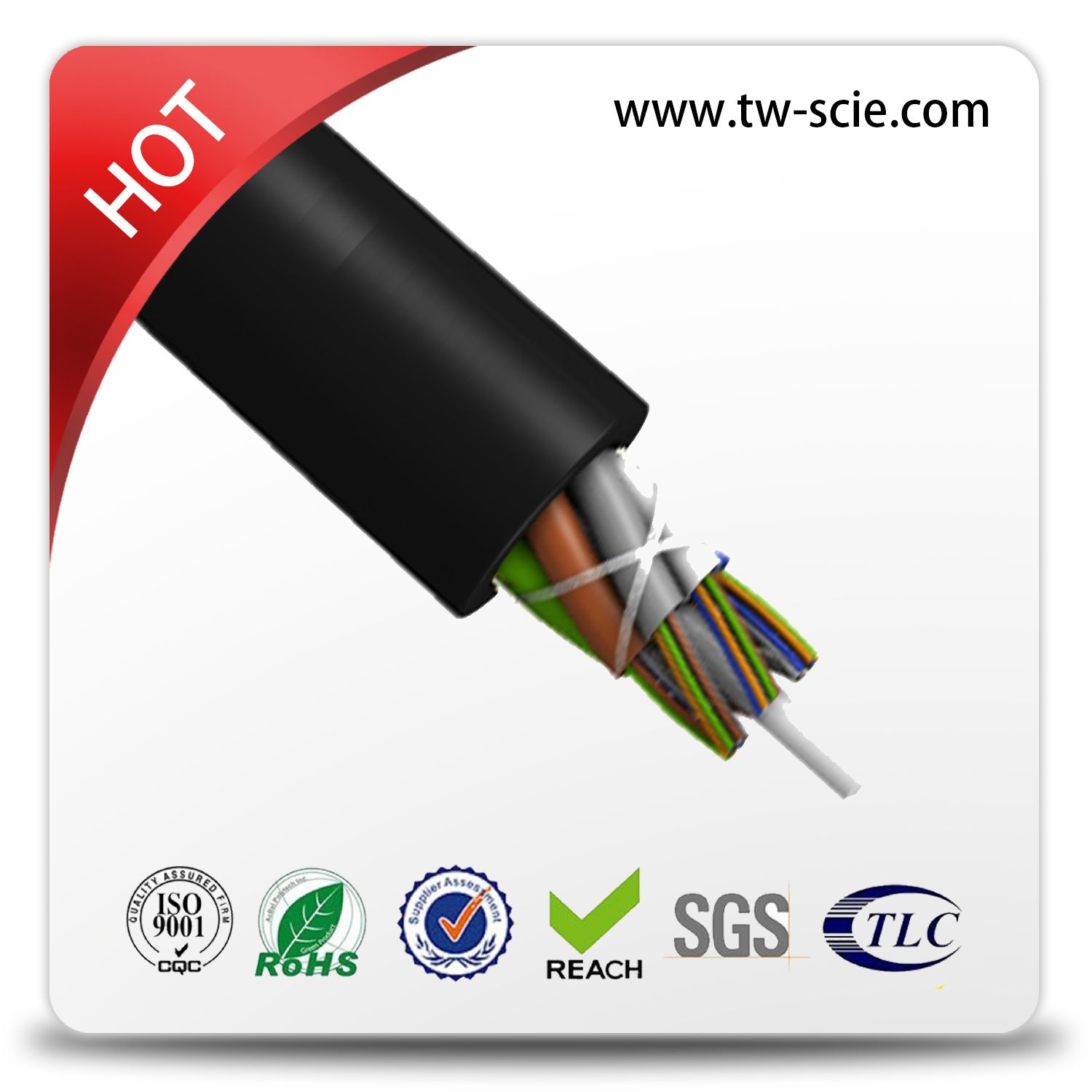

GYFTY 24core Outdoor Fiber Optic Cable with FRP

Prod Model:	GYFTY
Model No:	GYFTY Optic Fiber Cable
Fiber Count:	2-288 Core
Brand Name Of Fiber:	Corning ,Yofc,Draka, Fujikura...as Your Requiremen
Loose Tube Material:	PBT
Loose Tube Filling Material:	Jerry
Color Of Loose Tube:	Blue,Orange,Green, Brown, Grey, White, Red etc
Central Strength Member:	Non-Metallic
Strength Material:	Glass or Aramid Yarn
Core Moisture Protection Methodology:	Water Blocking Tape or Filling Compound
Installation Style:	Aerial
Application:	144 Core Optic Fiber Cable
Certification:	Reach,Tlc,etc
Type:	Single-Mode or Multimode Fiber
Connection Structure:	144 Core Optic Fiber Cable
Allowed Lateral Pressure:	Short Term 1500n; Long Term 600n
Allowed Tensile Strength:	Short Term 1000n; Long Term 300n
Core:	2-288 Core
Brand:	Tw-Scie or OEM
Sheath Material:	MDPE / HDPE / LSZH PE

Product Description

Description

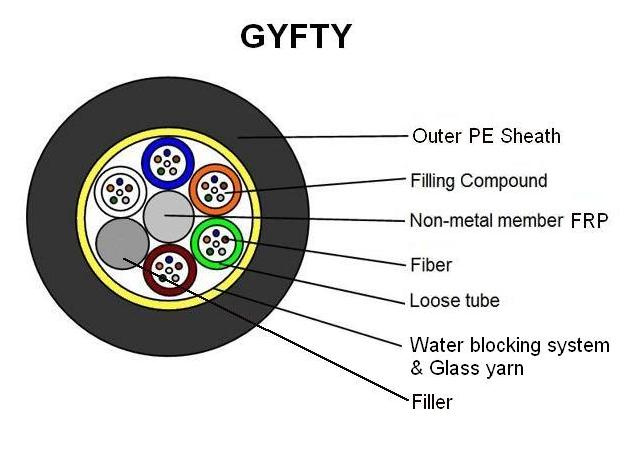

The fibers,250um,are positioned in a loose tube made of a high modulus plastic.The tube are filled with a water-resistant filling compound.Asteel wire,sometimes sheathed with PE for cable with high fiber count,locates in the center of core as a metallic strength member.Tubes(and fillers) are stranded around the strength member into a compact and circular cable core.The cable is completed with a PE sheath.

Features:
1. Good mechanical and temperature performance.
2. High strength loose tube that is hydrolysis resistand
3. Specially tube filling compound ensure a critical protection of fiber
4. Specially designed compact structure is good at preventing loose tubes from shrinking
5. PE sheath protects cable form ultraviolet radiation
6. Steel wire used as the central strength member
7.100% cable filling core filling
8. Loose tubes filling compound
9. PSP enhancing mostiure-proof

GYFTY Optic Fiber Cable Applicable Fields:
1.Long distance telecom, LAN in high voltage area or access to telecom network;
2.For power transmission system, much thunder areas and high electro-magnetic inerference.



GYFTY Optic Fiber Cable Technical data:

Technical data:
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Min.Bending radius(mm)		Tension (N)		Crash loading (N/100mm)
			Static	Dynamic	Short term	Long term	Short term	Long term
2-36	10.4	90	10 times O.D.	20 times O.D.	1500	600	1000	300
38-60	10.2	110
62-72	11.7	115
74-96	13.4	150
98-120	15.0	190
122-144	16.6	230
146-216	16.9	240
218-240	19.3	305
242-288	21.5	375

GYFTY Optic Fiber Cable Packaging Detail:
GYFTY Optic Fiber Cable package are  wooden drum, 3-4KM per drum. We also accept custom cabledrum from customers.

Our Quality & Service:
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1.Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.

Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate

As professioanl manufacturer on optical fibre cables, we can not only offer you optical fibre cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.

Contact with me for this GYFTY FRP 6/8/12/24/36/48/60/72/96/144 Core Optic Fiber Cable.
