| Prod Model: |
GYTA-48B1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dameter: |
10 Mm |
| Be Suitable For: |
Duct Type |
| Drum: |
2km/Drum |
| Application: |
Sensor |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
Fiber Optic |
| Brand: |
OEM or Geyida |
| Sheath Material: |
PE |
Product Description
Detailed Description
Detailed introduction to GYTA fiber-optic cable:

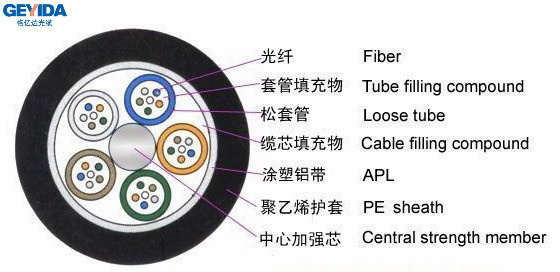

Stranded loose tube cable with aluminum tape (GYTA)
Application
1. Laying method: Duct/Aerial
2. Suitable for long-distance trunk and LAN communication.
3. Fiber type: Single-mode/Multimode
Characteristics
1. LAP Aluminum belt is applied around the cable core, which is filled with the filling compound to protect it from water-ingress.
2. Accurate fiber excess length ensures good mechanical and temperature performance.
3. Specially designed compact structure is good at preventing loose tubes from shrinking.
4. High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a citical protection of fiber.
5. Moisture proof and ratproof.
Options
Fiber type: G652, G655 or G657 single-mode fiber, A1a or A1b, OM3 or OM4 multi-mode fiber, or other types of fiber.
Fiber count: The fiber count is usually 1-6, or other contracted fiber count;
Jacket Material: Environmental thermos plastic PE(TPU), or other contracted material;
Jacket Color: Black, or other contracted color;
Cable Dimension: The nominal cable dimension, or other contracted dimension;
Delivery Length: 1km or 2km, or other contracted length;
Other Requirements: Other contracted special requests.
Mechanical and Environmental Characteristics| Items | Unite | Specifications |
| Tension(Long Term) | N | 600 |
| Tension(Short Term) | N | 1500 |
| Crush(Long Term) | N/10cm | 300 |
| Crush(Short Term) | N/10cm | 1000 |
| Min. Bend Radius(Dynamic) | mm | 20D |
| Min. Bend Radius(Static) | mm | 10D |
| Installation Temperature | ºC | -20~+60 |
| Operating Temperature | ºC | -40~+70 |
| Storage Temperature | ºC | -40~+70 |
Fiber Parameters| No. | Items | Unit | Specification |
| G.652D |
| 1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
| 1550nm | μm | 10.4±0.5 |
| 2 | Cladding Diameter | μm | 124.8±0.7 |
| 3 | Cladding Non-Circularity | % | ≤0.7 |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
| 5 | Coating Diameter | μm | 245±5 |
| 6 | Coating Non-Circularity | % | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 |
| 9 | Attenuation(max.) | 1310nm | dB/km | ≤0.4 |
| 1550nm | dB/km | ≤0.3 |
| optical characteristics |
|
|
| | | | | | |
| | | G.652 | G.655 | 50/125um | 62.5/125um |
| attenuation(+20ºC) | @850nm | | | ≤3.0db/km | ≤3.0db/km |
| @1300nm | | | ≤1.0db/km | ≤1.0db/km |
| @1310nm | ≤0.36db/km | ≤0.4db/km | | |
| @1550nm | ≤0.22db/km | ≤0.23db/km | | |
| @850nm | | | ≤600mhz.km | ≤200mhz.km |
| bandwidth(class A) | @1300nm | | | ≥1200mhz.km | ≥600mhz.km |
| numerical Aperture | | | | 0.200±0.015na | 0.275±0.015na |
| cable cut-off waveleng th xcc | | | | ≤1620nm | ≤1450nm |
| storage/operating temperature:-40ºC to +70ºC |
|
