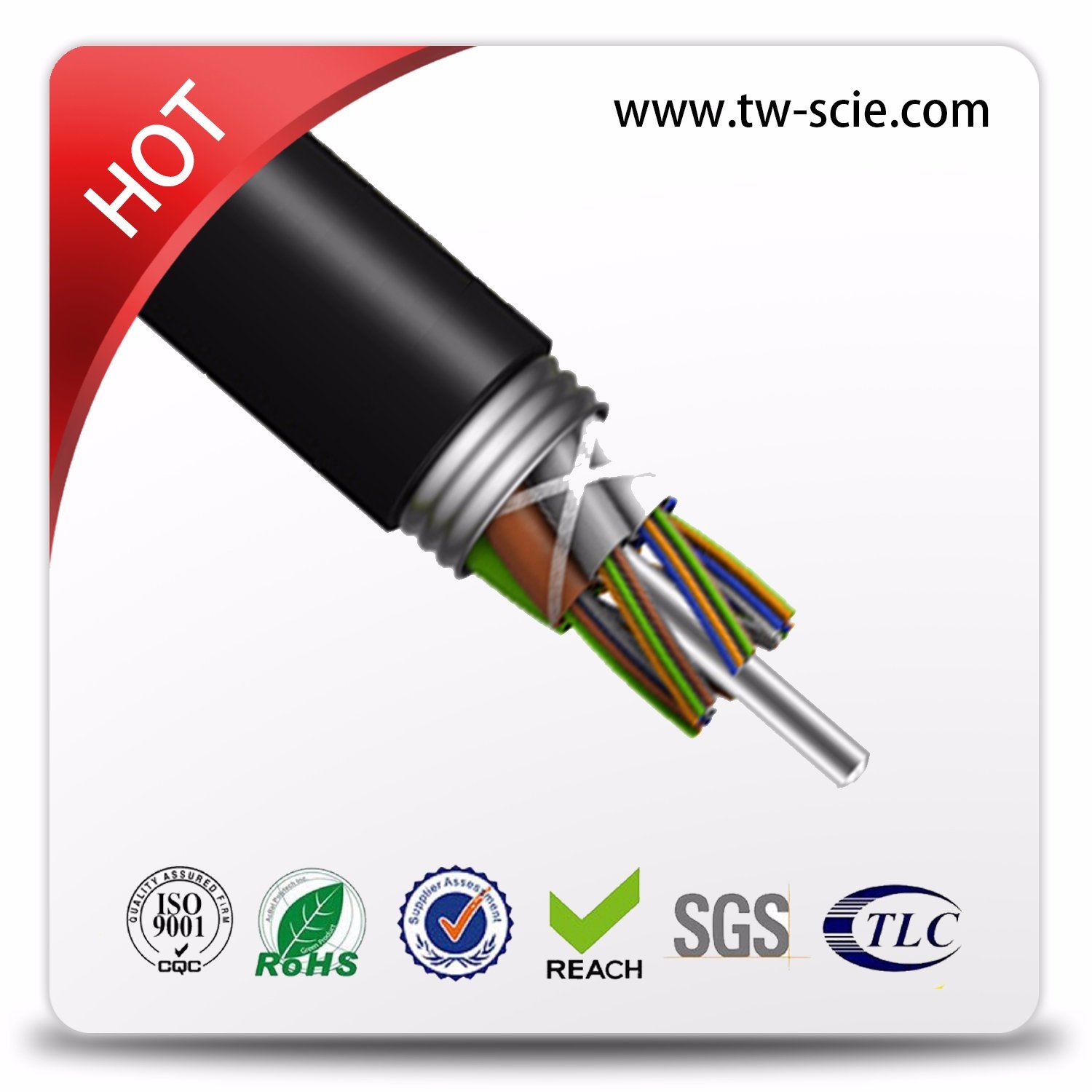

GYTA Outdoor Singlemode or Multimode 12 Core Optical Fiber Cable

Prod Model:	GYTA 12 Core Optical Fiber Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No:	GYTA 12 Core Optical Fiber Cable
Fiber Count:	12 Core Optical Fiber Cable
Brand Name Of Fiber:	Corning ,Yofc,Draka, Fujikura...as Your Requiremen
Loose Tube Material:	PBT
Loose Tube Filling Material:	Jerry
Color Of Loose Tube:	Orange,Green , Brown,Red etc
Central Strength Member:	Steel Wire or FRP
Single Armour Material:	Corrugated Aluminium Tape
Core Moisture Protection Methodology:	Water Blocking Tape or Filling Compound
Installation Style:	Duct,Aerial
Application:	12 Core Optical Fiber Cable
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	12 Core Optical Fiber Cable
Allowed Lateral Pressure:	Short Term 1000n; Long Term 300n
Allowed Tensile Strength:	Short Term 1500n; Long Term 600n
Core:	12 Core
Sheath Material:	MDPE / HDPE / LSZH PE

Product Description

GYTA Outdoor Singlemode or Multimode 12 Core Optical Fiber Cable Details:




Product Description

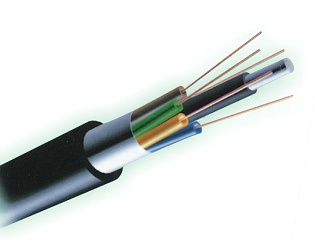

This GYTA Outdoor Singlemode or Multimode 12 Core Optical Fiber Cable has been designed for long haul / backbone application. Our stranded loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunication grade optical fiber. GYTA Outdoor Singlemode or Multimode 12 Core Optical Fiber Cable are designed for easy and economical installation.

GYTA Outdoor Singlemode or Multimode 12 Core Optical Fiber Cable Feature:
Excellent optical, mechanical & environmental performance
Moisture-proof & roden-proof
High strength-to-weight ratio
High tensile strength
High crush strength
Corrosion resistance
Very light weight
Very flexible  bending radius

GYTA Outdoor Singlemode or Multimode 12 Core Optical Fiber Cable Application:
Long haul / backbone application
Duct and aerial installation

GYTA Outdoor Singlemode or Multimode 12 Core Optical Fiber Cable Technical data:

Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Min. Bending radius(mm)		Tension (N)		Crash loading (N/100mm)
			Static	Dynamic	Short term	Long term	Short term	Long term
2-30	9.8	95	10 times O. D.	20 times O. D.	1500	600	1000	300
32-36	10.3	115
38-60	10.7	115
62-72	11.3	140
74-96	12.9	175
98-120	14.4	210
122-144	15.8	245
146-216	16.3	260
218-240	19.5	345
242-288	21.7	415


GYTA Outdoor Singlemode or Multimode 12 Core Optical Fiber Cable Packaging Detail:

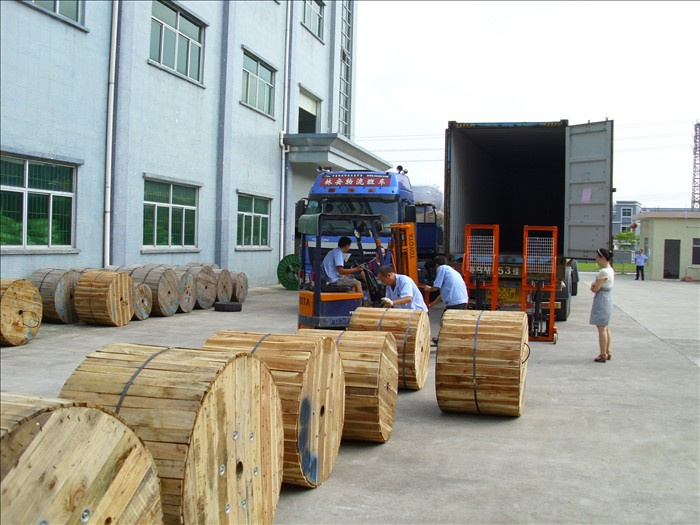

GYTA 2-288 Core Optical Fiber Cable package are  wooden drum.  Outdoor 2-288 Core Optical Fiber Cable's wooden dimension is 100cm*75cm*75cm, 0.57CBM
Outdoor cable's delivery length according to 2-288 Core Optical Fiber Cable cores. Also accept custom cabledrum from customers. welcome to contact us!


Our Quality & Service:
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1.Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.


Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate

As professioanl manufacturer on optical fibre cables, we can not only offer you optical fibre cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.

Contact with me for this GYTA Outdoor Singlemode or Multimode 12 Core Optical Fiber Cable.
