GYTA53 Direct Buried Optical Fiber Cable GYTA53

Name: GYTA53 Direct Buried Optical Fiber Cable GYTA53
Brand: all-electronics-online.com
SKU: 729372395
Availability: InStock
Rating: 4.6 (47 reviews)

Price:	US $ 0.2/Meter
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYTA53
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

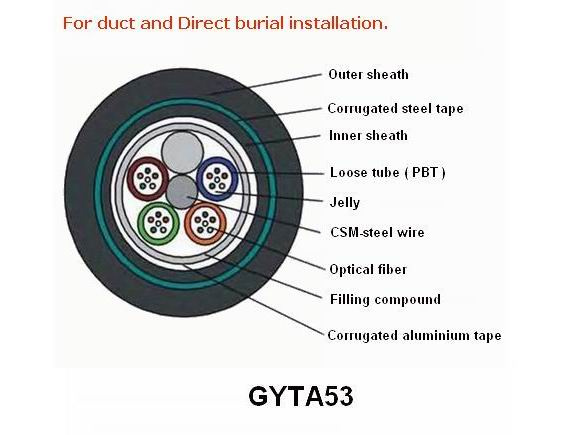

Installation Style:	Duct & Direct Buried
Brand Name Of Fiber:	Corning ,Yofc,Draka, Fujikura...as Your Requiremen
Loose Tube Material:	PBT
Waterblocking Material:	Water Blocking Tape or Filling Compound
Outer Sheath Material:	MDPE / HDPE /Lszh
Outer Sheath Color:	Black
First Armour Material:	Corrugated Steel Tape
Second Armour Material:	Corrugated Aluminium Tape
Central Stranding Member:	Steel Wire or FRP
Fiber Count:	2-288 Core
Application:	Submarine Cable
Cover Material:	PE
Certification:	RoHS
Conductor Material:	Glass Fiber
Type:	Fiber Optic Cable

Product Description

Application:
These corrugated steel tape and aluminum tape armored and double sheath cables are suitable for installation in harsh environments where mechanical impact on the cable is to be expected. E. G. Direct buried opplication. They are also suitable for installation in ducts where the rodent resistance is to be expected or the moisture resistance is expected.

Features:
1. Up to 288 fibers.
2. The loose tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in the tube. Which keeps the fiber stress-free while the cable is subjected to longitudinal stress.
3. Corrugated steel tape armored and double PE sheath providing excellent crush resistance and rodent resistance.
4. Metal strength member provides excellent strain performance.

Technical data:
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Min.Bending radius(mm)		Tension (N)		Crash loading (N/100mm)
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Static	Dynamic	Short term	Long term	Short term	Long term
2-24	13.3	210	12.5 times O.D.	25 times O.D.	3000	1000	3000	1000
26-36	13.6	220
38-60	14.1	225
62-72	14.6	255
74-96	16.2	305
98-120	17.7	350
122-144	19.1	395
146-216	19.6	420
218-240	22.8	530
242-288	25	620

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
