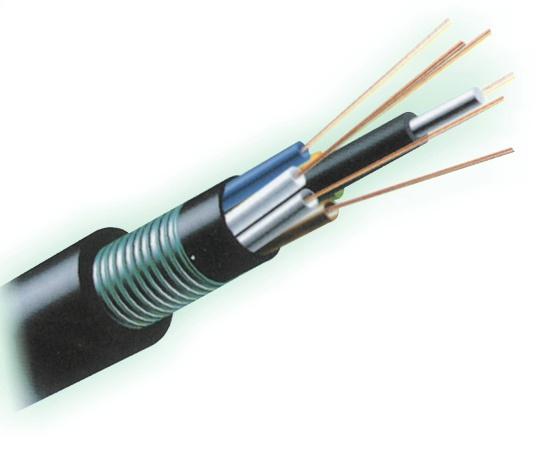

GYTY53 Single Armored and Double Sheathed Optical Network Cable

Prod Model:	GYTY53 optic fiber cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Installation Style:	Duct & Direct Buried (Fiber Cable)
Brand Name Of Fiber:	Your Requiremen
Loose Tube Material:	PBT with Jerry (Optic Cable)
Waterblocking Material:	Water Blocking Tape or Filling Compound
Outer Sheath Material:	MDPE / HDPE /LSZH
Outer Sheath Color:	Black ( Opitc Cable)
Armour Material:	Corrugated Steel Tape Optical Cable
Central Stranding Member:	Steel Wire or FRP Fiber Cable
Color Of Fiber And Loose Tube:	Red, Black, Yellow, Violet, Pink, Aqua
Fiber Count:	2-288 Core Fiber Optic Cable
Application:	Optical Fiber
Certification:	Reach
Type:	Single More or Multimode
Connection Structure:	Single More or Multimode
Sheath Material:	Fiber Optic Cable

Product Description

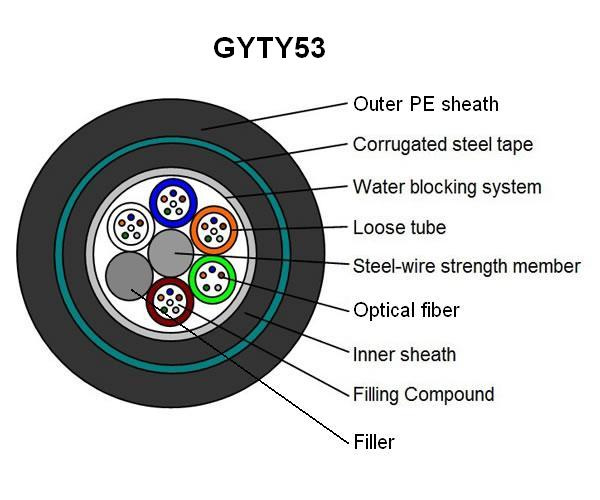

GYTY53 Single Armored and Double Sheathed Optical Network Cable




GYTY53 Fiber Optic Cable Specifications
1.2-288 core fiber optic cable / GYTY53 Fiber Optic Cable / Fiber Optic Cable
2. PE jacket 2-288 core Fiber Optic Cable
3. GYTY53 Fiber Optic Cable
4. Burial Fiber Optic Cable


Technical data:
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Min.Bending radius(mm)		Tension (N)		Crash loading (N/100mm)
			Static	Dynamic	Short term	Long term	Short term	Long term
2-24	13.3	210	12.5 times O.D.	25 times O.D.	3000	1000	3000	1000
26-36	13.6	220
38-60	14.1	225
62-72	14.6	255
74-96	16.2	305
98-120	17.7	350
122-144	19.1	395
146-216	19.6	420
218-240	22.8	530
242-288	25	620

GYTY53 Fiber Optic Cable Applications
1. Adopted to Outdoor distribution
2. Suitable for direct buried method
3. Long distance and local area network communication
4. Used outdoor cabling

Fiber Optic Cable Feature Description
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
5. The following measures are taken to ensure the cable watertight
6. Loose tube filling compound, 100% cable core filling
7. Enhancing moisture-proof
8. Water-blocking material
9. Single Fiber Reinforced Plastic as the central strength memberFiber optic cable cable GYTY53 comply with Standard YD/T 901-2001 as well as IEC 60794-1

Package Details:
The cables will be shipped on disable wooden or treated wooden drums or Steel reel on wooden drums.
Out packing: Protected by wooden batterns.
PS: The inner and outer ends of cable will be capped and made accessible for testing. A direction
Of rotation arrow is marked on the drum together with the identification




Our advantage:
1. OEM fiber optic cable manufacturer
2. Fiber brand: YOFC, CORNING, FUJIKURA
3. Quality certification: ISO9001. ROSH. REACH
4. Cooperate with Vietnam telecom, Thai telecom, Singapore telecom, Dubai telecom and other big projects
5. We known as the fiber optic cable manufacturer for the excellent products quality, competitive prices, fast delivery and good service

Our Company:

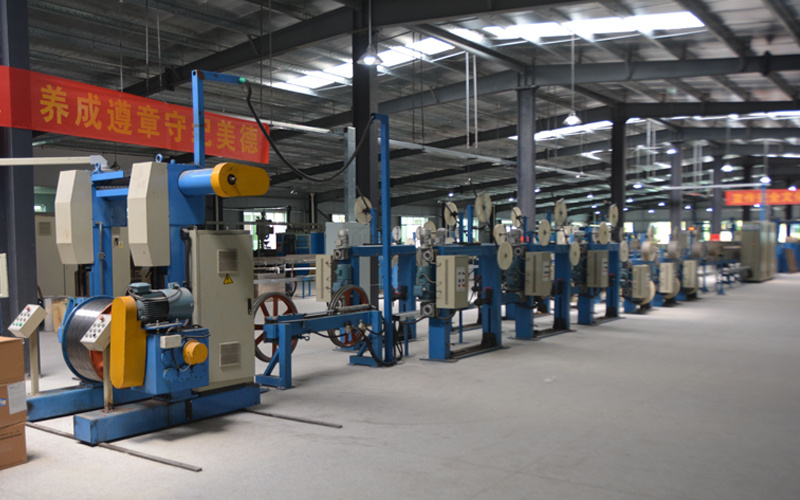

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.




Why choose us?
1. Introduction of foreign advanced production equipment and technology, have 14 year production experience, 80% employees have more than 10 years experience, excellent enterprise culture and management team.
2. FAST SHIPPING from factory
3. Item shipped in 3-15 working days after payment is received depends on the quantity of the order.
4. We accept T/T, L/C, Western Union, just choose what you like.
5. We accept OEM. The cable size and material are customized. Ur own logo and own design are welcome. We will produce according to ur requirment and description;
