Gyxtc8s Amored Figure 8 Self-Supporting Fiber Cable for Arial Layout

Name: Gyxtc8s Amored Figure 8 Self-Supporting Fiber Cable for Arial Layout
Brand: all-electronics-online.com
SKU: 801349975
Availability: InStock
Rating: 5 (62 reviews)

Price:	US $ 0.5-10/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SL-GYXTC8S
Tensile Strength:	Over 1000n
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	SC
Certification:	CCC
Sheath Material:	PE

Product Description

optical fiber cable loose tube figure 8 cable fibre optique GYXTC8S

Product Attenuation

		G.652	50/125μm	62.5/125μm
Attenuation (+20ºC)	@850nm		≤3.0dB/km	≤3.0dB/km
	@1300nm		≤1.0 dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km
	@1550nm	≤0.22dB/km
Bandwidth (Class A)	@850nm		≥500MHz/km	≥200MHz/km
Bandwidth (Class A)	@1300nm		≥1000MHz/km	≥600MHz/km
Numerical Aperture			0.2±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm

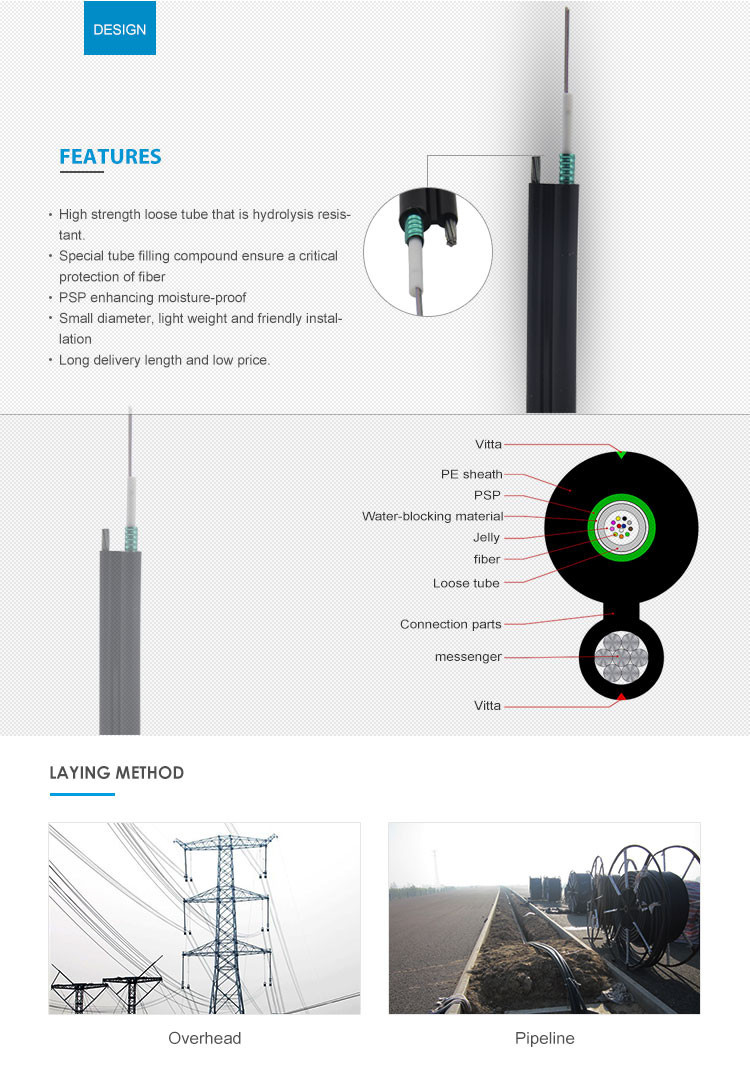

Description

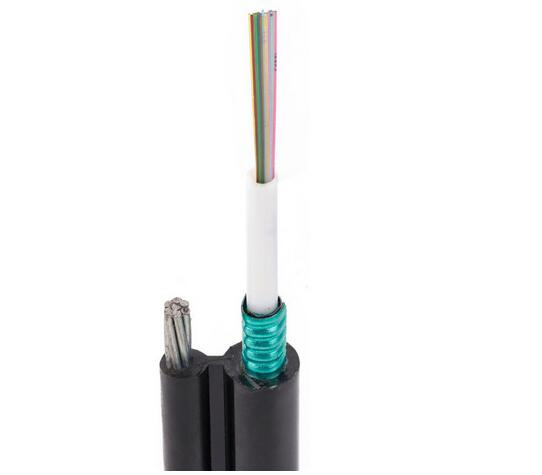

The fibers, 250μm,are positioned in a loose tube made of a high modulus plastic, the tubes are filled with a water-resistant filling compound. The two sides PSP are longitudinally applied over the outer loose tube. Steel wires and loose tubes filled with water proof compound to ensure compact and longitudinally water blocking ,this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.

Package


Package 1	Package 2
Package 1: usually for indoor cable, light weight cables. Package 2: usually for outdoor cable, heavy weight cables Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

Mark

Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross / Net weight
3. Drum No: XX
4. Cable Length : XX

Star Link IT Co., Ltd was founded in 2007, one of the leading suppliers of LAN Cables, Fiber Optic Cables, HDMI Cables, USB Cables, Patch Cords & CCTV Cables in China. Over the years, we have been serving customers from over 15 countries & regions, helping them lower their buying costs for copper data cabling as well as fiber optic products.

Star Link IT Co., Ltd leads the Cables & Wires manufacturing services industry in technical expertise and operational experience. Through strategic movement and an established long-term customer base, we have deep insight into the needs of the market, the technical convergence requirements and the competitive challenges that drive the need for continuous reevaluations of the supply chain. These insights drive our strategy of providing end-to-end solutions for networking and optical products.

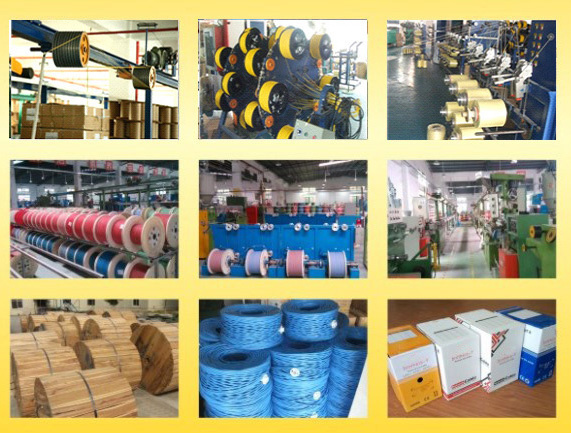

Over the years, we have brought in advanced product facilities and built up a well-trained, qualified team, which continuously guarantees state-of-the-art quality and first-class service. We are young but dynamic, creative, flexible and continually striving to provide our customers with easy solutions. We pride ourself to partner with a certain number of the cross-regional top 500 companies.

Our goal is to be your very first source for data cabling.
