| Prod Model: |
GYXTC8S fiber optic cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Jacket Material: |
PE Fiber Optic Cable |
| Armored: |
Steel Armored Optical Cable |
| Installation Style: |
Aerial Fiber Optic Cable |
| Brand Name Of Fiber: |
Corning ,Yofc,Draka, Fujikura...as Your Requiremen |
| Fiber Counts: |
2-288 Core Optic Cable |
| Outer Sheath Material: |
MDPE / HDPE / Lszh |
| Standard Length For Delivery: |
2-5 Km Optic Cable |
| Armour Material: |
Corrugated Steel Tape |
| Stranding Member: |
Steel Wire or FRP Fiber Optical Cable |
| Steel Wire: |
1.4mm or 1.0/7-3.0mm,1.2/7-3.6mm |
| Application: |
Glass Fiber |
| Certification: |
Reach |
| Type: |
Single More or Multimode |
| Connection Structure: |
Fiber Optic Cable |
| Sheath Material: |
LSZH,HDPE,MDPE |
Product Description

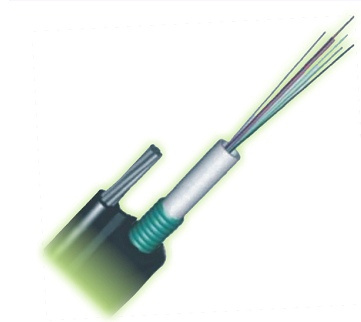

GYXTC8S Central Tube Self Supported Singlemode Multicore Fiber Optic Cable

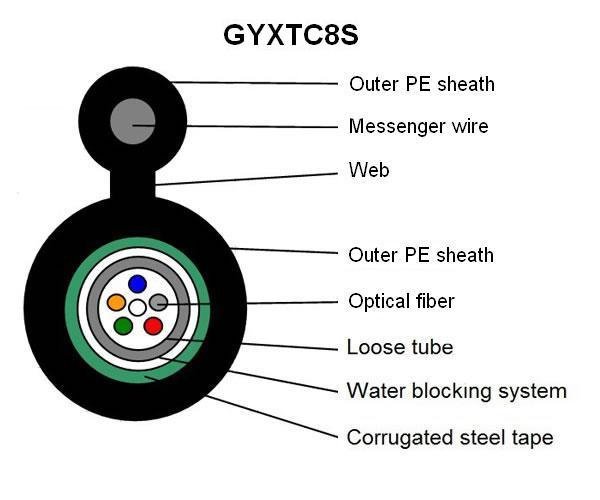

Description
1.250μm Coloured Fiber
2.PBT loose Tube
3.Tube Filling Compound(Gel)
4.APL Moisture barrier
5.Stranded wires as the self-supporting messenger
Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· 100% cable core filling
· PSP enhancing moisture-proof
Optical Characteristics: | | | G.652D | 50/125μm | 62.5/125μm |
| Attenuation | @850nm | | ≤3.0 dB/km | ≤3.0 dB/km |
| (+20ºC) | @1300nm | | ≤1.0 dB/km | ≤1.0 dB/km |
| | @1310nm | ≤0.36 dB/km | | |
| | @1550nm | ≤0.22 dB/km | | |
| Bandwidth (Class A) | @850nm | | ≥500 MHz·km | ≥200 MHz·km |
| | @1300nm | | ≥1000 MHz·km | ≥600 MHz·km |
| Numerical Aperture | | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelengthλcc | | ≤1260nm | | |
Standards:
GYTC8YA/S cable complies with Standard YD/Y 1155-2001 as well as IEC 60794-1
Storage/Operating Temperature: -40°C to + 70°C

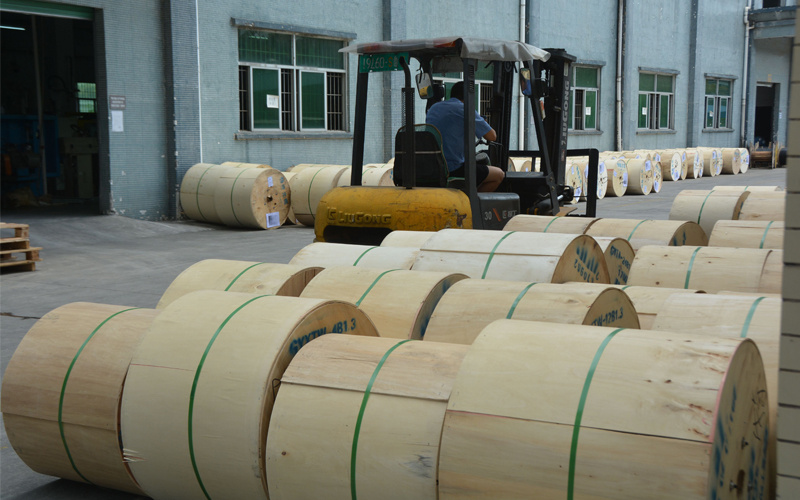

Packaging & Delivery:Packaging Details: wooden drum or as customized.
Delivery Time: According to the order quantity,usually within 1 week
Why Choose Our Fiber Optic Cable 1.Introduction of foreign advanced production equipment and technology, have 12 years production experience, 80% employees have more than 10 years experience, excellent enterprise culture and management team.
2.FAST SHIPPING from factory
3.Item shipped in 3-15 working days after payment is received depends on the quantity of the order.
4.We accept T/T, L/C, Western Union, Money Gram and Paypal, just choose what you like.
5.We accept OEM. The cable size and material are customized. Your own logo and own design are welcome. We will produce according to ur requirement and description;
6.With more than 12 years experience in fiber optic cable,we already cooperated and established long-term business relationship with both domestic and overseas famous enterprise.
FAQ:
1.Are you the real manufacturer?
Yes. We are the real manufacturer with 10 years' history.
2.What is your fiber brand ?
Corning,FiberHome, etc
3.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001, SGS, UL, RoHs.
6.What is your delivery time?
Usually within 2-3 working days
7.What is your payment way?
T/T, L/C, Western Union and Paypal.
8.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
Tag: GYXTC8S
DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
The main products of our enterprise are:
Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
