Gyxtc8s G625D Sm Fiber Optic Cable

Name: Gyxtc8s G625D Sm Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 830439395
Availability: InStock
Rating: 5 (139 reviews)

Price:	US $ 0.3/Meter
Min Order:	3000/Meter
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYXTC8S
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	Optical Fiber
Brand:	Tw-Scie or OEM
Sheath Material:	PE

Product Description

Single Mode GYXTC8S 2~24 Fiber Outdoor Fiber Optic Cable

Specifications

1.self-supporting multi core
2.PE Sheath
3.Waterproof loose tube
4.The most competitive price

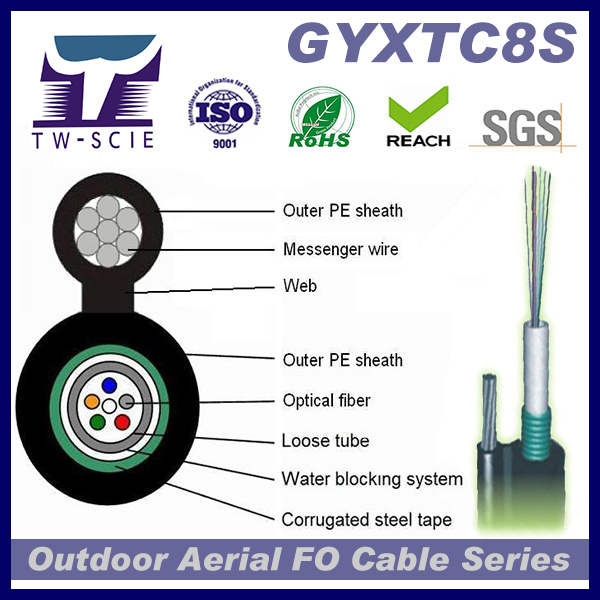

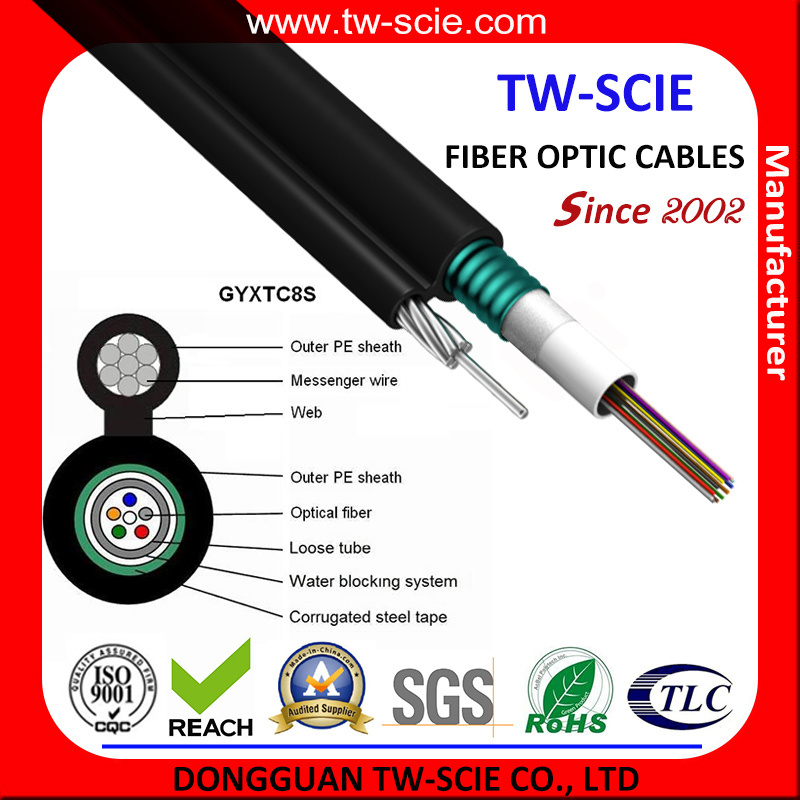

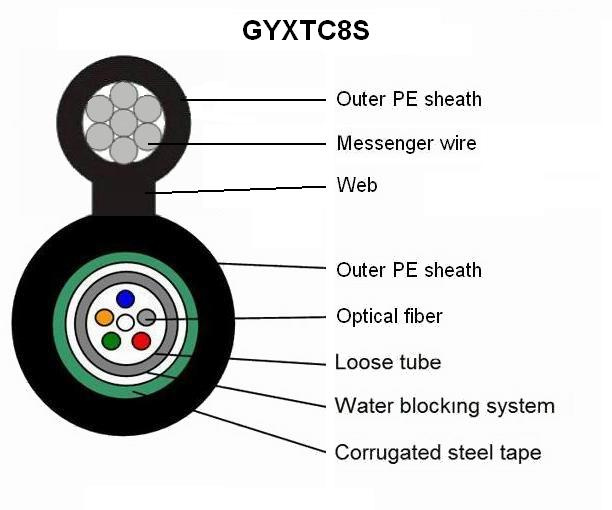

DESCRIPTION
1.Selfsupporting loose-bubed stranded padding outdoor communication cable with metallic strengthened hanging line andsteel-PE cementing sheath
2.Cove the innerfulfilled waterproof compoundloose tube, with the single mode andmulti-mode optical fiber
3.A FFRP in the middle of the optical cablecore
4.Sheath Material:PE
4.Outdoor Aerial Self-supporting GYXTC8S Optical Fiber Cable

Application
1.Long distance and local area network communication.
2.Adopted to Outdoor distribution.

Technical specification

Fiber count(core)	2-30	32-36	38-40	42-48	50-60	62-72
Diameter of suspension sheath(mm)	6.0	6.0	6.0	6.0	6.0	6.0
Outer diameter(mm)	9.4	9.7	10.2	10.6	11.2	12.0
Cable weight(kg/km)	170(190)	180(200)	180(200)	195(215)	200(225)	205(235)
Minimum tensile strength(N)	Short-term: 8000
Minimum tensile strength(N)	Long-term: 3000
Minimum crushing(N/100mm)	Short-term: 1000
Minimum crushing(N/100mm)	Long-term: 300
Bending radius	Static:10 times of diameter Dynamic:20 times of diameter
Standard length for delivery(km)	2~6
Temperature range(⁰C)	-40~+60

Packaging & Shipping

Packaging Detail: Wooden drum or iron wooden drum

Delivery Detail: 30 days after confirmation of order and payment

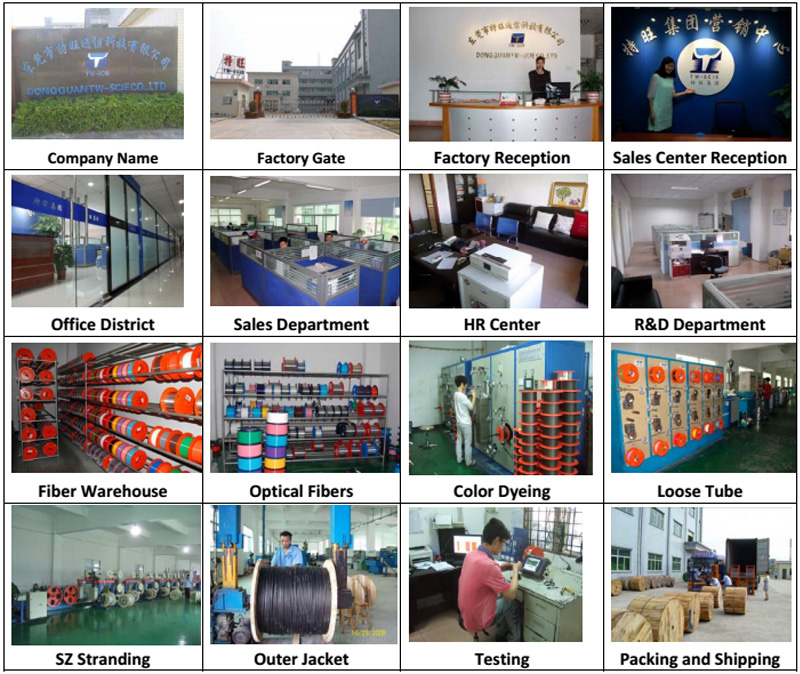

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
