Gyxts Optical Fiber Cable/Computer Cable/Data Cable/Communication Cable/Audio Cable/Connector

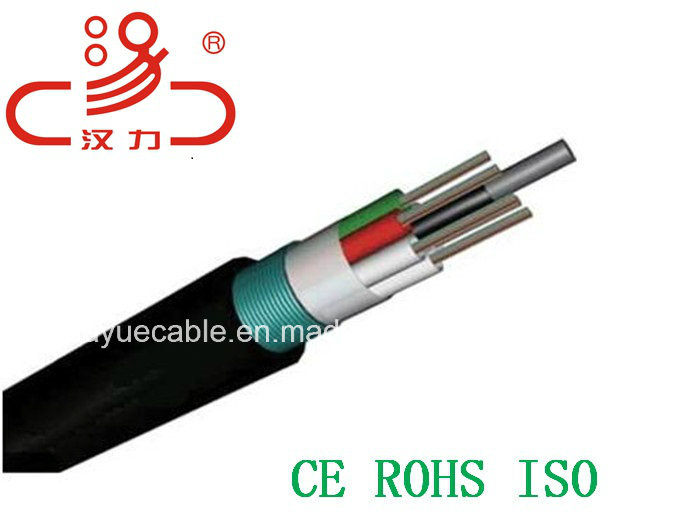

Name: Gyxts Optical Fiber Cable/Computer Cable/Data Cable/Communication Cable/Audio Cable/Connector
Brand: all-electronics-online.com
SKU: 810416405
Availability: InStock
Rating: 4.4 (70 reviews)

Price:	US $ 150-300/Roll
Min Order:	20/Roll
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYXTS Optical Fiber Cable
Type:	Single-mode Fiber
Connection Structure:	LC
Material Shape:	Round Wire
Allowed Lateral Pressure:	>1000（N/100mm）
Allowed Tensile Strength:	>10000N
Core:	Single Core
Certification:	CE, RoHS, ISO9001
Sheath Material:	PE
Application:	Communication, Probe, Medicine

Product Description

Product Model :GYXTS

Central loose tube optical fiber

Fill gel into cores

Strand 12 steel wires around the loose tube evenly

Two-sided plastic-coated aluminum tape bonded PE sheath

Application Range:Suitable for long-distance communication and interoffice communication

Laying Method:Pipeline, aerial or buried

Applicable Temperature:-40ºC~+60ºC

Product Features:

1.Low optical fiber transmission loss and low dispersion;

2.Endowing cables with excellent mechanical properties and environmental performance due to reasonable design and precision control over excess length of optical fibers in loose tube.

3.Light weight and convenient laying.

4.Excellent flexibility and bending resistance capacity.

5.Excellent compressive resistance of wire armouring.

6.Longitudinally wrap the cores with aluminum tape, showing excellent moisture proof effect.

Technical Parameters

Fiber cores	Outer diameter of optical cable mm	Weight of optical cable kg/km	Minimum bending radius mm		Allowable minimum tensile strength N		Allowable minimum crush resistance mN/100mm
Fiber cores	Outer diameter of optical cable mm	Weight of optical cable kg/km	Static	Dynamic	Short-term	Long-term	Short-term	Long-term
2~12	10.4	165	120	240	3000	1000	3000	1000

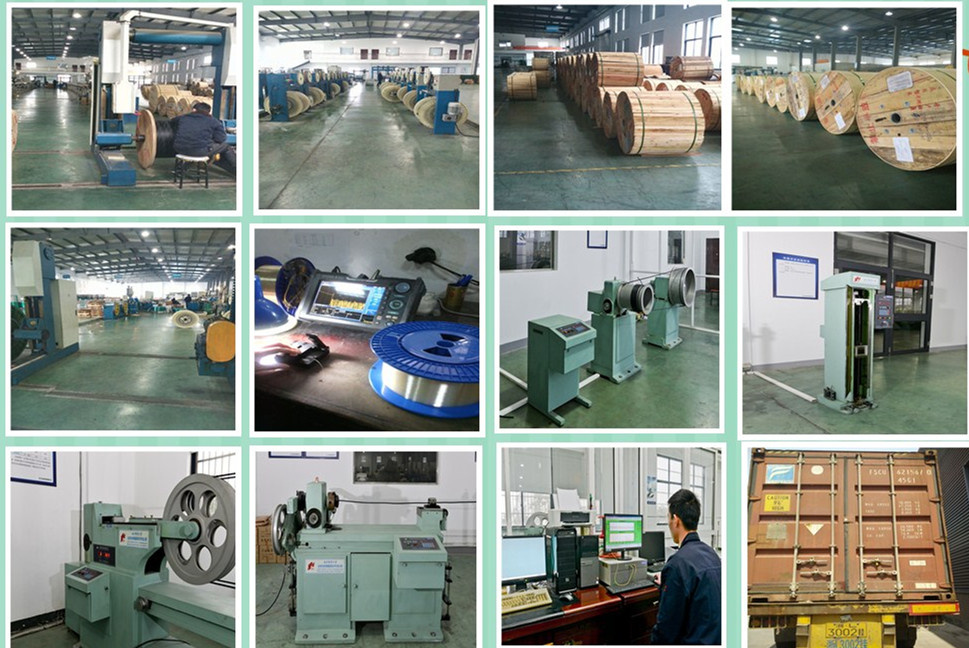

Welcome to visit our factory and  get our samples.
  Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.

Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
