GYXTW 6 12 24 Core Single Mode Armor Optical Fiber Cable

Prod Model:	gyxtw
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.:	GYXTW Fiber Optic Cable
Fiber Count:	6 Core Fiber Optic Cable
Strengthen Member:	Steel Wire or FRP
Strengthen Material:	Corrugated Steel Tape
Waterblocking Material:	Water Blocking Tape or Filling Compound
Brand Name Of Fiber:	Corning,Yofc,Draka,Fujikura...
Color Of Fiber /Loose Tube:	Blue,Orange,Green,Brown,Grey,White, etc
Applicable Fields:	Long Distance Communication and LAN
Installation Style:	Aerial
Nominal Cable Delivery Length (Km):	3km± 3%
Application:	Communication
Certification:	Tlc, Reach etc.
Type:	Single-Mode or Multi-Mode Fiber
Connection Structure:	Fiber Optic Cable
Allowed Lateral Pressure:	Long Term 300n; Shot Term 1000n
Allowed Tensile Strength:	Long Term 600n; Shot Term 1500n
Core:	24 Core
Brand:	Tw-Scie or OEM
Sheath Material:	MDPE / HDPE / LSZH PE

Product Description

GYXTW 6 12 24 core single mode armor optical fiber cable




Technical data:

Fiber Count	Nominal Diameter            (mm)	Nominal Weight         (kg/km)	Allowable Tensile Load                (N)		Allowable Crush Resistance                   (N/100mm)
			Short Term	Long Term	Short Term	Long Term
2~12	7.8	60	1500	600	1500	600
14~24	8.5	85	1500	600	1500	600

Optical Charateristics

Fiber Type		G.652	G.655	50/125^m	62.5/125^m
Attenuation (+20X)	850 nm			<3.0 dB/km	<3.3 dB/km
	1300 nm			<1.0 dB/km	<1.0 dB/km
	1310 nm	<0.36 dB/km	<0.40 dB/km
	1550 nm	<0.22 dB/km	<0.23 dB/km
Bandwidth	850 nm			>500 MHz-km	>200 Mhz-km
	1300 nm			>500 MHz-km	>500 Mhz-km
Numerical Aperture				0.200±0.015 NA	0.275±0.015 NA
Cable Cut-off Wavelength cc		<1260 nm	<1450 nm

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact me for more detailed information.

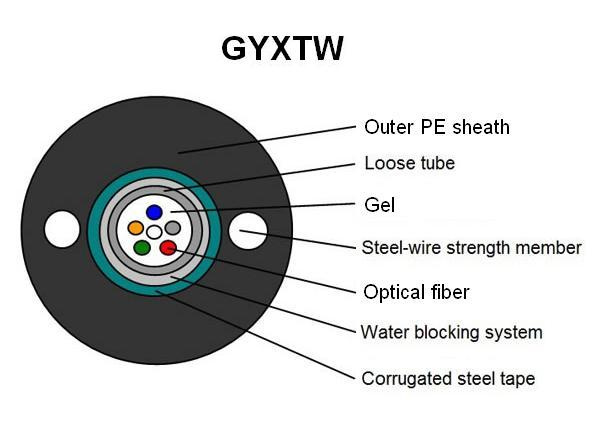

Structure Characters:

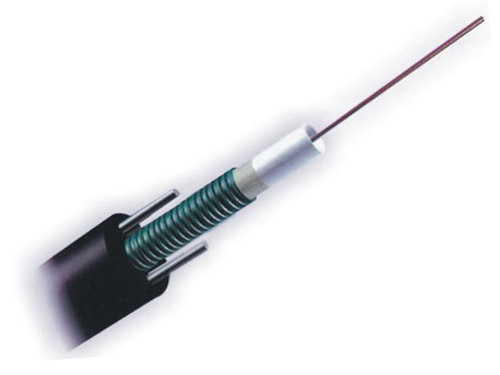

     Armored Uni-Tube Single Jacket/Single Armor fiber optic cable with fibers placed in loose buffer tube. The cable core is protected with a corrugated steel tape armor and cover with a black polyethylene outjacket. Two embedded steel wire provide desire tension.

Application:
1. Suitable for  aerial.
2. Long distance communication system.
3. Local area network system.
4. Subsriber network system.

Our Quality & Service:
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1.Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.


Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate

Packaging & Delivery:
Packaging Details
wooden drum ,iron-wooden drum with fumigated or not
Delivery Time
Shipped in 15 days after payment


As professioanl manufacturer on optical fiber cables, we can not only offer you cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.
