GYXTW Outdoor Optical Cable Optic Fiber Optic Cable
| Price: |
US $ 0.228-2.28/Meter |
| Min Order: |
5000/Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
GYXTW |
| Laying Method: |
Aerial |
| Application: |
Probe |
| Certification: |
ISO9001 |
| Type: |
Sm/mm |
| Sheath Material: |
PE |
Product Description
Application:
Laying method: AerialSuitable for long-distance trunk and LAN communication.Fiber type: Single-mode/Multimode
Characteristics

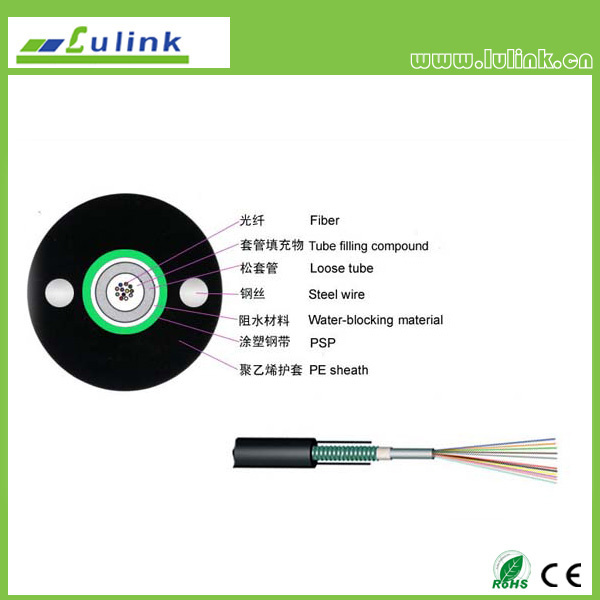

Two parallel steel wires ensure tensile strengthPSP enhances the cable crush resistance, impact resistance and moisture-proof.Accurate fiber excess length ensures good mechanical and temperature performance.Specially designed compact structure is good at preventing loose tubes from shrinking.High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a citical protection of fiber.Small diameter, light weight and it is easy to be installed.Crush resistance and flexibility
Fiber characteristic:
| Fiber style | Unit | SM G652D | MM 50/125 | MM 62.5/125 | MM OM3-300 |
| Condition | nm | 1310/1550 | 850/1300 | 850/1300 | 850/1300 |
| Attenuation | dB/km | 0.36/0.23 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 |
| Dispersion | 1550nm | Ps (nm ·km) | ≤18 | ----- | ----- | Dispersion |
| 1625nm | Ps (nm ·km) | ≤22 | ----- | ----- | |
| Bandwidth | 850nm | MHZ ·.km | ----- | ≥400 | ≥160 | Bandwidth |
| 1300nm | MHZ. ·km | ----- | ≥800 | ≥500 | |
| Zero dispersion wavelength | nm | ≥1302 ,≤1322 | ------ | ------ | ≥1295 ,≤1320 |
| Zero dispersion slope | nm | ≤0.091 | ------ | ------ | ≤0.11 |
| PMD Maximum Individual Fibre | um | ≤0.2 | ------ | ------ | ------ |
| PMD Design Link Value | Ps/(nm2*km) | ≤0.08 | ------ | ------ | ------ |
| Fibre cutoff wavelength λc | nm | ≥1180 ,≤1330 | ------ | ------ | ------ |
| Cable cutoff wavelengthλcc | nm | ≤1260 | ------- | ------- | ------- |
| Mode field diameter(MFD) | 1310nm | um | 9.2±0.4 | ------ | ------- | ------- |
| 1550nm | um | 10.4±0.8 | ------ | ------- | ------- |
| Numerical Aperture(NA) | | ----- | 0.200±0.015 | 0.275±0.015 | 0.200±0.015 |
| Step(mean of bidirectional measurement) | dB | ≤0.05 | ≤0. 10 | ≤0. 10 | ≤0. 10 |
| Irregularities over fibre length and point discontinuity | dB | ≤0.05 | ≤0. 10 | ≤0. 10 | ≤0. 10 |
| Difference backscatter coefficient | dB/km | ≤0.03 | ≤0. 08 | ≤0. 10 | ≤0. 08 |
| Attenuation uniformity | dB/km | ≤0.01 | ----- | ------ | ----- |
| Core diameter | um | ----- | 50±1.0 | 62.5±2.5 | 50±1.0 |
| Cladding diameter | um | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
| Coating diameter | um | 242±7 | 242±7 | 242±7 | 242±7 |
| Coating/cladding concentricity error | um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 |
| Coating non-circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 |
| Core/cladding concentricity error | um | ≤0.6 | ≤1.5 | ≤1.5 | ≤1.5 |
| Curl(radius) | um | ≤4 | ----- | ----- | ----- |
Technical Requirements:
| Fiber Count | Cable Diameter(mm) | Weight (kg/km) | Min.Bending Radius(mm) | Max Tension(N) | Crush Pressure(N/100mm) |
| | | | Dynamic | Static | Short Term | Long Term | Short Term | Long Term |
| 2-6 | 8.0 | 70 | 20×D | 10×D | 1500 | 600 | 1000 | 300 |
| 8-12 | 8.5 | 75 | 20×D | 10×D | 1500 | 600 | 1000 | 300 |
