GYXTY Swa Armor Optical Fiber Cable

Name: GYXTY Swa Armor Optical Fiber Cable
Brand: all-electronics-online.com
SKU: 838684885
Availability: InStock
Rating: 4.5 (78 reviews)

Price:	US $ 0.2-0.7/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYXTY
Cable Structure:	Uni-Loose Tube Swa and Aluminum Armor
Applications:	Outdoor Duct or Aerial Lashed
Fiber Options:	Itu G652D ,G657A,Om1,Om2,Om3,Om4
Fiber Count:	2-24 Cores
Installation Tensile:	3000n
Bend Radius (Under Installation):	20 X External Diameter of Cable
Strength Member:	Overall Steel Wire
Material Of Jacket:	Black Polyethylene (PE)
Certificate:	ISO9001 Tlc RoHS Ce
Warranty (Year):	2
Application:	Communication
Type:	Single-mode Fiber
Certification:	CCC
Connection Structure:	Other
Core:	2-24
Brand:	Efon
Sheath Material:	HDPE/LSZH Sheath/Flame Retardant Sheath/Anti-Roden

Product Description

Product Description:

GYXTY SWA armor optical fiber cable

GYXTY Steel Wire Armored Uni Tube Single Jacket cable is designed with the flexibility and versatility required

for today's most demanding installations, including aerial, Conduit and Duct. Overall steel wire armoring provide

good tensile and crush resistant.

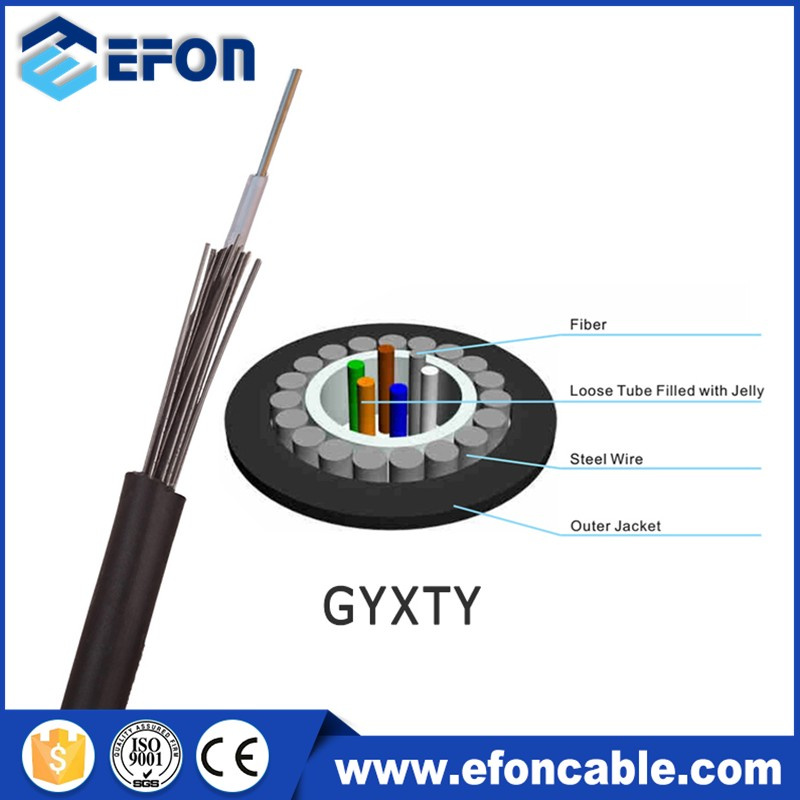

Product Construction
Fiber:
2-24 fibers
Uni-loose tube gel-filled

Armor:
Steel wire

OuterJacket:
Black UV-and moisture-resistant polyethylene (PE).

Features
Uni-tube gel-filled construction for superiorfiber protection.
Compact, easy to install.
UV and moisture-resistant design

Applications
Installed in duct, direct burial.
FTTx.

Optical Charateristics

Fiber Type		G.652	G.655	50/125 um	62.5/125 um
Attenuation (+20X)	850 nm			<3.0 dB/km	<3.3 dB/km
	1300 nm			<1.0 dB/km	<1.0 dB/km
	1310 nm	<0.36 dB/km	<0.40 dB/km
	1550 nm	<0.22 dB/km	<0.23 dB/km
Bandwidth	850 nm			>500 MHz-km	>200 Mhz-km
Bandwidth	1300 nm			>500 MHz-km	>500 Mhz-km
Numerical Aperture				0.200±0.015 NA	0.275±0.015 NA
Cable Cut-off Wavelength cc		<1260 nm	<1450 nm

Structure and Technical Specifications

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Short Term	Long Term	Short Term	Long Term
2~12	7.5	74	3000	1000	1500	600
14~24	8.0	80	3000	1000	1500	600

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales
people for more detailed information.

You May Like

Payment

For large orders, T/T , L/C, and E-credit lines are all offered.

For small orders, credit-cards are accepted.

Shipping & Delivery

We will send the products within 10 days.

We ship small batched by air, or large orders by container.

Return and Warranty:

All products have been tested before ship out

All products have 5 years warranty. If there is no man-made problem ,we will replace or repair for you freely.

We own the best after-sale service. If any problems happen ,our team will do our best to solve for customers.

We produce fiber optic cable, patch cord, pigtail, optical coupler, PLC splitter and other passive components for FTTX.

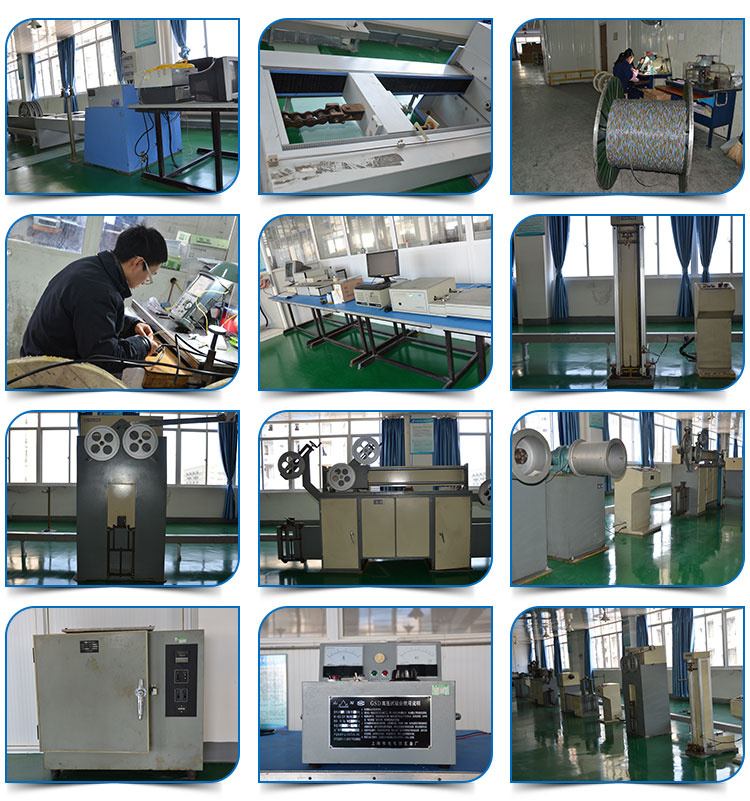

We offer products of a consistent quality. Our QC team monitors the manufacturing process and inspects all products before shipment.
