GYXY Unitube Non-Armored Optical Fiber Cable

Name: GYXY Unitube Non-Armored Optical Fiber Cable
Brand: all-electronics-online.com
SKU: 730768392
Availability: InStock
Rating: 4.7 (145 reviews)

Price:	Negotiable/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYXY
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001
Brand:	Yinet

Product Description

·Description

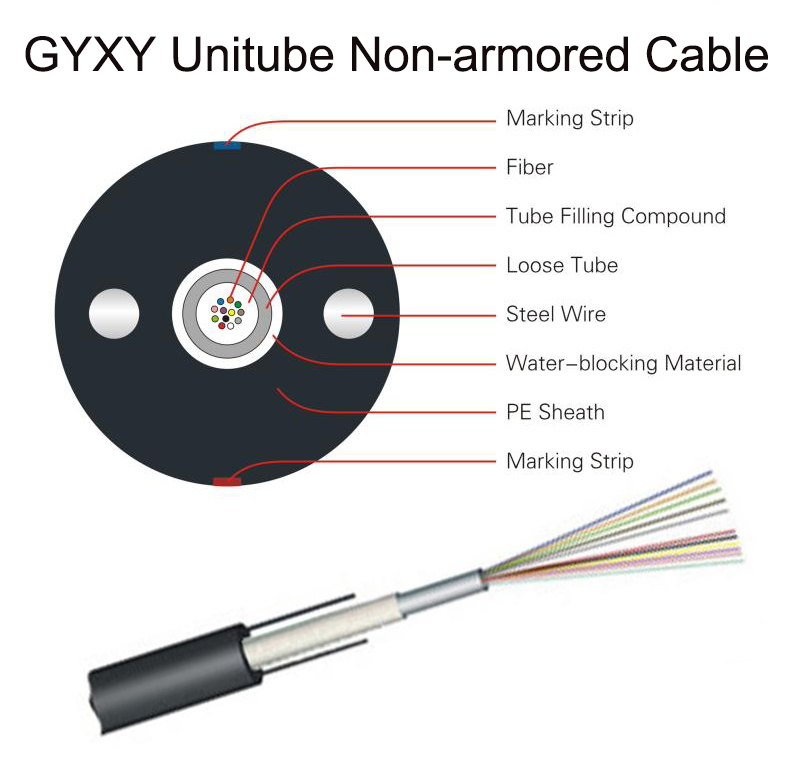

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel steel wires are placed at the two sides. The cable is completed with a polyethylene (PE) sheath.

·Characteristics

· Good mechanical and temperature performance

· High strength loose tube that is hydrolysis resistant

· Special tube filling compound ensure a critical protection of fiber

· Two parallel steel wires ensure tensile strength

· PE sheath protects cable from ultraviolet radiation

· Small diameter, light weight and friendly installation

· Long delivery length

·Standards

GYXY cable complies with Standard YD/T 769-2003.

·Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20ºC)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

·Technical Parameters

Cable Type

Fiber Count

Cable Diameter

Cable Weight kg/km

Tensile Strength

Long/Short Term N

Crush Resistance

Long/Short Term

N/100mm

Bending Radius

Static
/Dynamic

GYXY

2~12

9.5

600/1500

300/1000

10D/20D

GY XY

2~12

10.2

100

1000/3000

10D/20D

Storage/Operating Temperature : -40ºC to + 70ºC
