Unitube Non-Metallic Non-Armored Cable Gyfxy Optical Fiber Cable Multimode

Name: Unitube Non-Metallic Non-Armored Cable Gyfxy Optical Fiber Cable Multimode
Brand: all-electronics-online.com
SKU: 731127812
Availability: InStock
Rating: 4.7 (54 reviews)

Price:	Negotiable/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYFXY
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001
Brand:	Yinet

Product Description

·Description

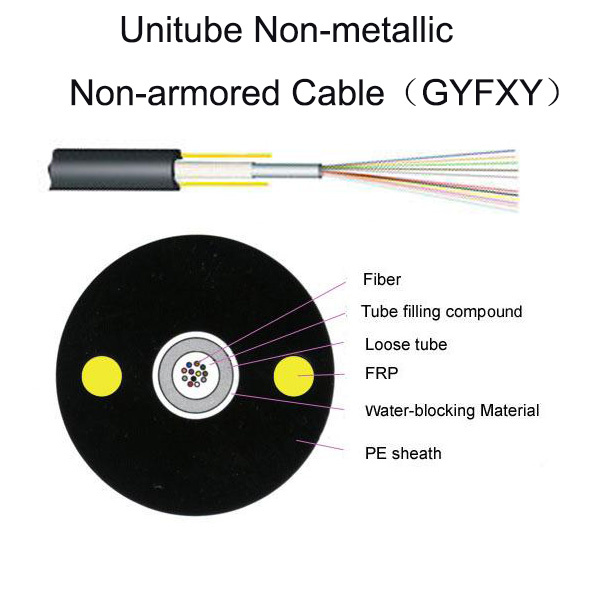

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube. water-blocking material is applied to keep the cable watertight. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two side. The cable is completed with a polyethylene(PE) sheath.

·Characteristics
        · Good mechanical and temperature performance
        · High strength loose tube that is hydrolysis resistant
        · Special tube filling compound ensure a critical protection of fiber
        · Two parallel FRPs ensure tensile strength
        · PE sheath protects cable from ultraviolet radiation
        · Small diameter, light weight and friendly installation
        · Long delivery length

·Standards
        GYFXY cable complies with Standard YD/T 769-2003.

·Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20ºC)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

·Technical Parameters

Cable Type (Increased by 2 fibers)	Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static /Dynamic mm
GYFXY -2~12	2~12	10.2	100	400/1000	300/1000	10D/20D

Storage/Operating Temperature : -40ºC to + 70ºC
