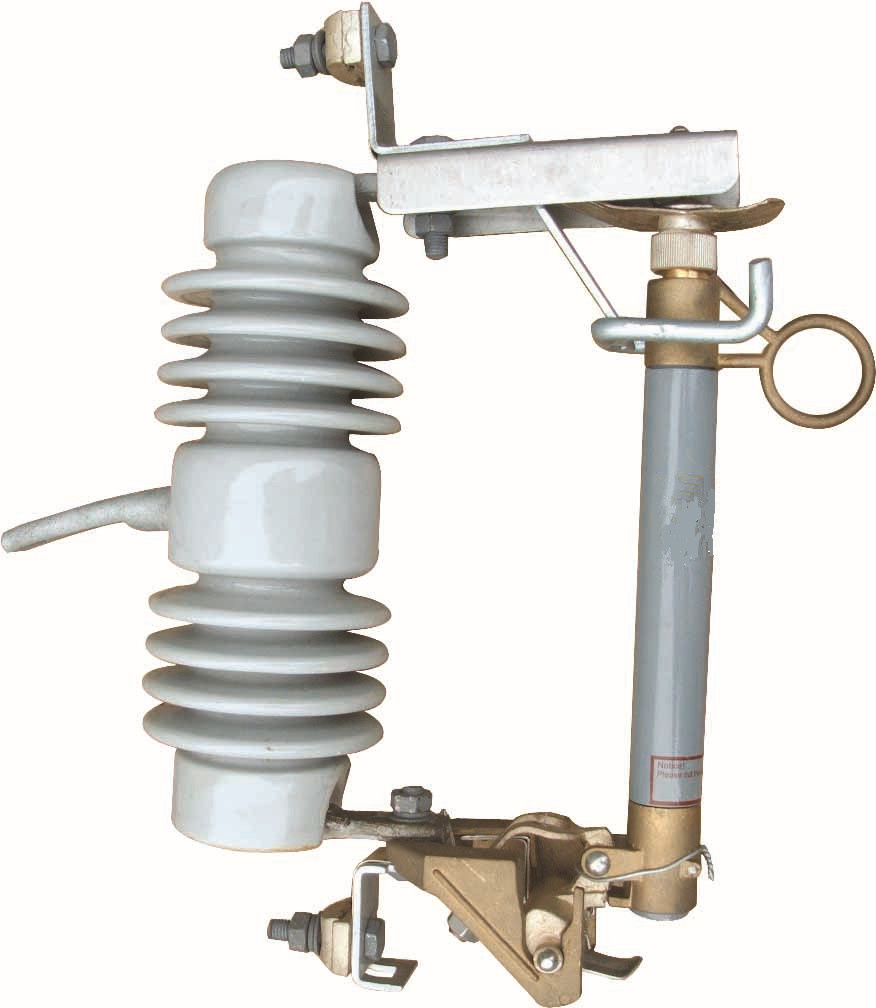

(H) RW12-12 12kv Drop-out Fuse

Name: (H) RW12-12 12kv Drop-out Fuse
Brand: all-electronics-online.com
SKU: 673776522
Availability: InStock
Rating: 4.9 (54 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	(H)RW12-12/100(200)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage
Shape:	See Picture
Fusing Speed:	K or T
Standard:	IEC 60282-2

Product Description

Drop-out fuse is high voltage protective devices used outdoors. To be connected with incoming feeder of distribution line it mainly protects transformer and line from short circuit and overload.

Type	Rated voltage kV	Rated current A	Breaking current kA	lmin Power frequency withstand vol (dry) kV(r.m.s)	Lightning impulse withstand vol kVp	Creepage distance mm
HRW12-12/100	12	100	6.3	40	110	440
HRW12-12/200	12	200	8	40	110	440
RW12-12/100	12	100	6.3	40	110	250(300)
RW12-12/200	12	200	8	40	110	250(300)

Note: 1.H-composite insulating ;Porcelain insulating is negligible.
2.Dimension: RW12-12(43 x36 x11) cm ;HRW12-12(44 x39 x11) cm.

Shanghai Powery Industries Co., Ltd. Located in Shanghai China, our factory located in the beautiful seaside city--Qingdao, covering more than 10000sqm, with the workshop covering an area of 5000sqm, is a advanced management company, which is about 15 minutes' drive away from the Qingdao airport and about half-hour's drive away from the port.

We are engaged in the design, manufacture and marketing services of rigging, vessel and container fittings, electric power fittings, and high and low voltage transmission and distribution line fittings. We have been equipped all kinds of forging machines, casting machines, punching machines, lathes and drilling machines. "Quality and Service" is our top belief. Our products have been exported to Asia, America and Africa for many years. Most of our friends and customers are satisfied with our quality and services, on the basis of which, long-term friendships have been established.

Being ISO9001: 2008 certified and with permits for all products, we produce all products according to relative International Standards and customers' requirements.

You and your esteemed company are welcomed to visit us. Our best services, famous Qingdao beach sightseeing and delicious seafood are waiting for your presence.
