H, U (W) Type Feed Through Terminal Blocks (PA, PE, PP material)

Name: H, U (W) Type Feed Through Terminal Blocks (PA, PE, PP material)
Brand: all-electronics-online.com
SKU: 615751124
Availability: InStock
Rating: 4.7 (65 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	2000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	H, U(W) Type
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Contact Termination Form:	Screws Fixed
Shape:	Rectangle

Product Description

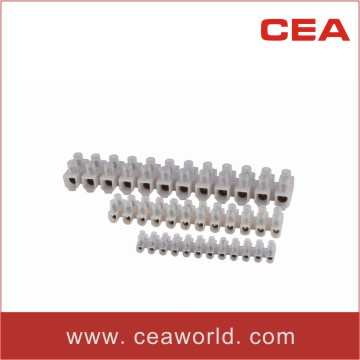

Terminal Block

Wiring terminal block: H, U(W) series.
Material: PA, PE and PP

Color: Creamy white, white and black. Special colors may be customized.

Application: For connecting terminals in such devices as electric distribution box, cabinet and disc.

Teachnical Data:

Type	Spec. and model				External dimensions (mm)					Packing
Type	Series	Rated Current (A)	Connecting wire (mm 2 )	Rated Voltage (V)	L	A	H	M	B	Packing
03	H	3	4	400	93	17	12	6	8	1000
03	U(W)	3	4	400	93	16	11	6	8	1000
06	H	6	6	400	113	19	15	6.5	10	1000
06	U(W)	6	6	400	112	16	14	6.5	10	1000
10	H	10	10	400	130	21	16.5	8.0	11.0	500
10	U(W)	10	10	400	126	20	15	8.3	10.5	500
16	H	15	12	400	139	22.5	18.5	8.0	12	500
16	U(W)	15	12	400	140	22.5	17.5	10.0	12	400
20	H	20	14	400	139	22.5	18.5	8.0	12	400
20	U(W)	20	14	400	140	22.5	17.5	8.3	12	400
30	H	30	16	400	168	26.0	20.0	11.0	14.0	400
30	U(W)	30	16	400	168	26.0	20.0	11.0	14.0	300
60	H	60	25	400	190	30	25.5	11.5	16.5	300
60	U(W)	60	25	400	191	30	24.0	13.5	16.5	200
80	H	80	35	400	205	38	27	15	17	200
80	U(W)	80	35	400	205	38	27	15	17	200
100	H	100	40	400	250	40	31	17	21	50
100	U(W)	100	40	400	250	40	31	17	21	50

Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.

The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.

Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.

Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
