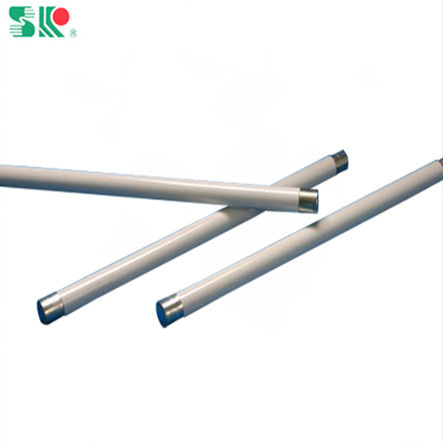

H. V HRC Fuse Type Xrnp for Transformer Protection

Name: H. V HRC Fuse Type Xrnp for Transformer Protection
Brand: all-electronics-online.com
SKU: 736960325
Availability: InStock
Rating: 4.6 (141 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	3/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	XRNP SERIES
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

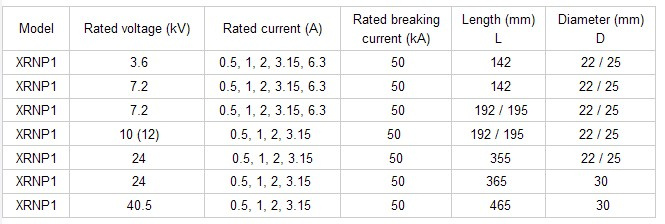

Rated Voltage (Kv) 3.6, 7.2, 12, 24, 40.:	Rated Current (a) 0.5, 1, 2, 3.15, 6.3
Rated Breaking Current (Ka) 31.5, 40, 50:	Material: Ceramic
Type:	Current Fuse
Breaking Capacity:	High
Standard:	GB15166.2,IEC282-1,Bs
Shape:	Tube
Fusing Speed:	Quick
Fusing Device:	Fuse Tube
Usaga:	Overload and Short-Circuit Protection for Electric

Product Description

Applications

H. V HRC current-limiting fuses type XRNP for transformer protection is mainly used in AC 50Hz, rated voltage 3.6-40.5KV, rated current up to 6.3A circuit for protection transformers from overload and short-circuit.
It conforms to IEC282-1, BS and GB15166.2

Desing Features

XRNP type H. V HRC current-limiting fuses is insert installation. It is convenient for install and removal.

The fuse link made of high-resistance metal wire and low-resistance metal wire. They are sealed in the fuse tube filled with chemically treated high-purity quartzsand.

The fuse tube is made from heat tesistance, high duty ceramic or epoxy glass. When fault circuit happens, the fuse link melts causing arc, quartz sand dxtiguish the arc immediately, signaling the melting or automatically cutting the circuit.
