| Prod Model: |
H05V-R |
| Conductor: |
Bare Copper or Tinned Copper |
| Color ID: |
in Accordance with DIN VDE 0281,Part 1,HD21.1 |
| Application Standard: |
HD21.3 S3,VDE-0281 Part-3,Ce Low Voltage Directive |
| Features: |
Easy-Peeling,Easy-Cutting,Convenient for Installat |
| Conformity Approval: |
RoHS Ce |
| Rated Voltage: |
300/500V |
| Min. Bending Radius(Fixed/Movable): |
12.5*D(Cable Od) |
| Temperature Range(ºC): |
Fixed Installation:-20to+70;Movable Installation:- |
| Norminal Section(mm2): |
0.5/0.75/1.0 |
| Appilcation: |
Electrical Installation and Connections |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Application: |
Electrical Installation and Connections |
| Range Of Application: |
Wiring in Switchboard of Electrical Appliance, etc |
| Brand: |
Jiukai |
Product Description
Item: H05V-R 0.75mm2 Electrical Connection Cable --- Code:8544492100 Product Description & ParametersModel/Nominal section (mm ² ) | Insulation thickness (mm) | Max. Ave. OD (mm) | Cable Weight (Kg/Km) | Conductor Max. DC resistance at 20 ºC ( Ω /Km) | Min.Insu.resistance at 70 ºC (M Ω .Km) |
| Non electroplating | Electroplating |
| H05V-R 0.5 | 0.6 | 2.4 | 8.8 | 36 | 36.7 | 0.014 |
| H05V-R 0.75 | 0.6 | 2.6 | 12.0 | 24.5 | 24.8 | 0.012 |
| H05V-R 1.0 | 0.6 | 2.8 | 14.8 | 18.1 | 18.2 | 0.011 |
APPLICATION
For internal wiring in switchboard of electrical appliance & wiring board of power distribution unit ,connecting switch cubicle of elecreical equipment, as well as wiring in installation of power supplying and lighting systems with exposed and embedded conduit.
STRUCTURE
Conductor: Stranded bare or tinned copper according to IEC 60228, Standards VDE 0295 Class 5
Insulation:PVC/TI1 in accordance with DIN VDE 0281, Part 1. HD21.1
Colour ID: in accordance with HD 402 Standard
STANDARD: HD 21.3 S3, VDE 0281 Part 3, CE Low Voltage Directive, 73/23/EEC and 93/68/EEC
FEATURES & CONFORMITY:Bendable single core cable
Easy peeling
Easy cutting
Convenient for installation
Conformity approval: RoHS CE
TECHNICAL PARAMETERS: Rated voltage: 300/500V
Test voltage: 2500V
Min. bending radius: Fixed installation: 12.5D
Movable installation: 12.5D
Temperature Range: Fixed installation: -20ºC~+70ºC
Movable installation:-5ºC~+70ºC
Packaging & Shipping | Packaging Details: | Package:
1. Plastic/Wooden Drum: 100M/Roll,500M/Roll,1000M/Roll.
2. According to customer requiremet. |
|---|
| Delivery Detail: | 7-15 days |
|---|

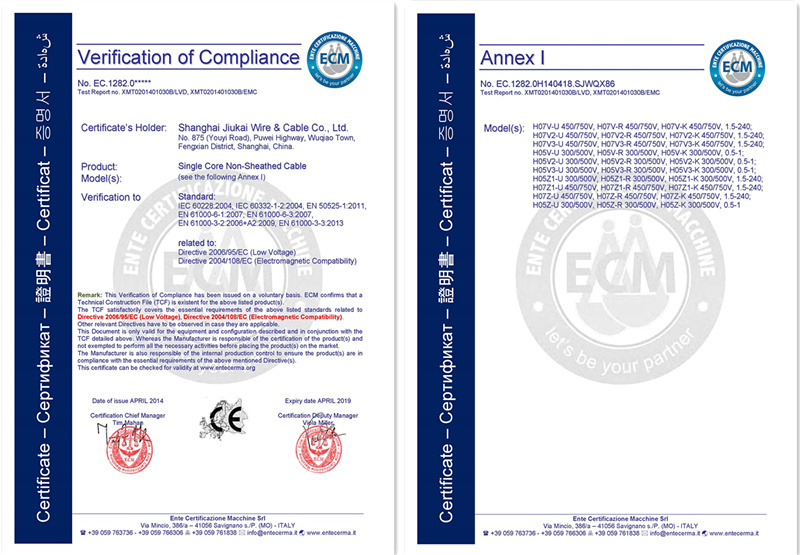

Certification
Related product 1: Electric Vehicle Charging Cable
2: Solar PV Cable
3: Elevator Cable
4: ULElectrical insulation and hook up wireWhy Choose US We are a professional wire and cable manufacturer
1.Quality control: Our defective products rate is 0.01%
2.Economically priced, exquisitely made
3.Adequate supply capacity, punctual delivery time

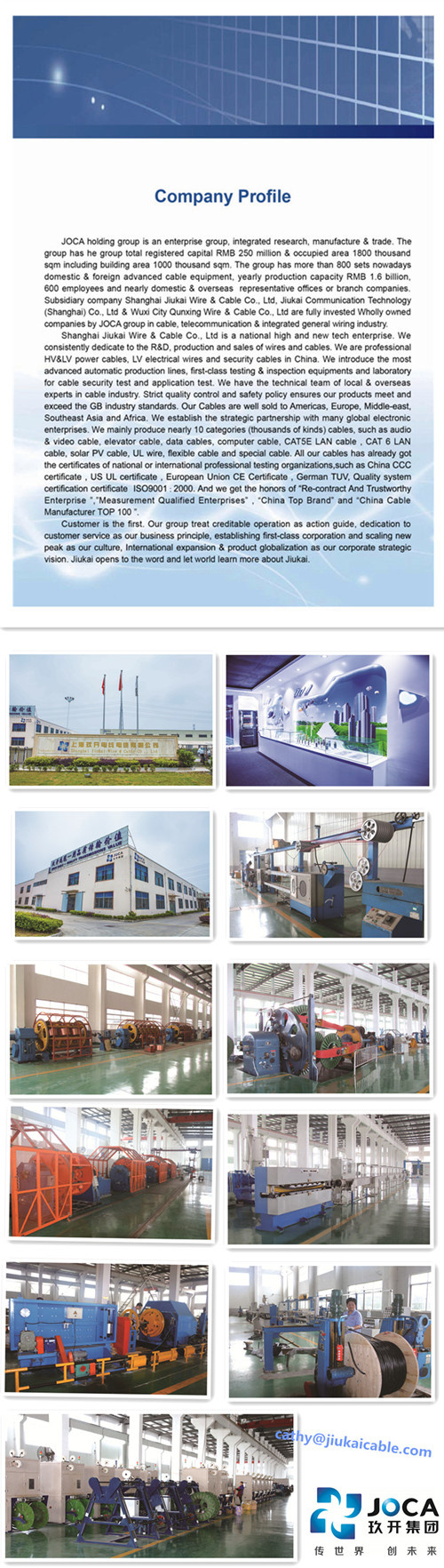

4.Best of sales service are providedCompany Information
FAQ Q:How long is the product's service life?
A: Very long service life more zhan 25 years at 90ºC
Q:What are the product's characteristics?
A:1.UV,ozone and hydrolysis resistant
2.High temperature resistant,the materials do not metl or flow
3.Good cold flexibility
Q:Scope of application?
A:Compatible to all popular connectors
Q:What is the size of your company?
A:JOCA holding group is an enterprise group, integrated research, manufacture & trade.
The group has he group total registered capital RMB 250 million & occupied area 1800 thousand sqm including building area 1000 thousand sqm.
The group has more than 800 sets nowadays domestic & foreign advanced cable equipment, yearly production capacity RMB 1.6 billion,600 employees and nearly domestic & overseas representative offices or branch companies.
Subsidiary company Shanghai Jiukai Wire & Cable Co., Ltd, Jiukai Communication Technology (Shangshai) Co., Ltd & Wuxi City Qunxing Wire & Cable Co., Ltd are fully invested Wholly owned companies by JOCA group in cable, telecommunication & integrated general wiring industry.
Q:What is the turnover of the company?
A:Our turnover was 7 billion last year.
Q:What kind of certifications do you have?
A:Such as China CCC certificate,US UL certificate,European Union CE Certificate,German TUV,Quality system certification certificate ISO9001:2000,Japanese Standard PSE certificate and so on,
And we get the honors of "Re-contract And Trustworthy Enterprise ","Measurement Qualified Enterprises" , "China Top Brand" and "China Cable Manufacturer TOP 100 " and so on.
Q:How long solar cable can be loaded in one 20" container?
A:Can load:1×4mm² solar cable 250km; 1×6mm² solar cable 200km;1×10mm² solar cable 120km;1×16mm² solar cable 80km;2×4mm² solar cable 128km;2×6mm² solar cable 80km.
Q: Does the company take relevant exhibition ?
A:Yes,of course!We have taken relevant exhibition in Australia,Japan, Thailand, the united Arab emirates,Mexico
| Name | Cathy |
| Tel/Mob | 0086-21-57186991
0086-15216837384 |
| QQ | 1138928118 |
| Your enquiry will be highly appreciated! |

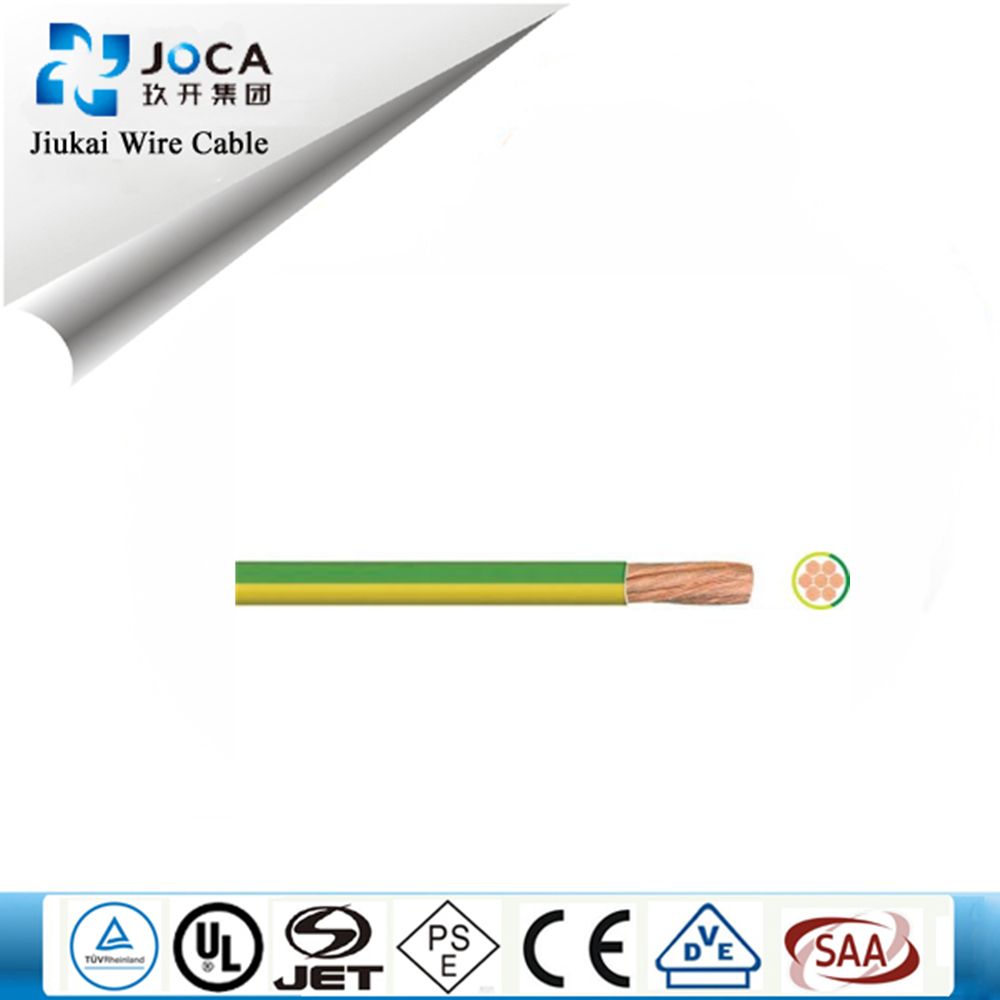

H05V-R 0.75mm2 Electrical Connection Cable
