H05z1z1 LSZH Flexible Cable Wire

Name: H05z1z1 LSZH Flexible Cable Wire
Brand: all-electronics-online.com
SKU: 834941775
Availability: InStock
Rating: 4.5 (88 reviews)

Price:	US $ 0.2-20/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	H05Z1Z1
Conductor Class:	5
Voltage:	300/500V
Type:	Insulated
Conductor Material:	Copper
Certification:	CCC
Conductor Type:	Flexible
Application:	Building Wire
Sheath Material:	LSZH
Insulation Material:	LSZH
Range Of Application:	Building Wire
Brand:	Jl

Product Description

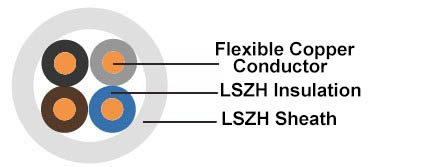

H05Z1Z1 LSZH Flexible Cable Wire Consruction:
Class 5 Flexbile copper conductors, LSZH (Low Smoke Zero Halogen) Insulation,LZSH (Low Smoke Zero Halogen) Sheath

H05Z1Z1 LSZH Flexible Cable Wire Application

The cable used as an indoor general wiring cable primarily for installations in public areas. Examples include use on pendant lighting drops or as a general supply lead within hospital or airport projects.
For installation where fire, smoke emission and toxic fumes create a potential risk to life and equipment.

H05Z1Z1 LSZH Flexible Cable Wire Standards
VDE-0282 , BS EN 50525-3-11, 2014/35/EU,Rosh,IEC 60332-1-2

H05Z1Z1 LSZH Flexible Cable Wire Technical Character:
Conductor:Flexible Copper Conductor, class 5
Working voltage:300/500V
Test Voltage: H07Z-R: 2000V
Working Temperature:0-70º C
Bending Radiu: 5 x overall diameter
Max. Conductor temperature: 70 º C
Short-circuit max. Conductor temperature:160°C
Insulation resistance: 20 MΩ x km
Cable Parameter:

No. of Cores x Nominal Cross Sectional Area	Nominal Thickness of Insulation	Nominal Overall Diameter	Nominal Weight
No x mm2	mm	mm	kg/km
2×0.75	0.6	6.3	57
2× 1	0.6	6.6	65
2× 1.5	0.7	7.4	84
2×2.5	0.8	9	130
2×4	0.8	10.4	180
3×0.75	0.6	6.7	68
3×1	0.6	7	78
3×1.5	0.7	8	107
3×2.5	0.8	9.9	163
3×4	0.8	11.1	212
4×0.75	0.6	7.3	83
4×1	0.6	7.9	100
4×1.5	0.7	9	134
4×2.5	0.8	10.8	201
4×4	0.8	12.2	290
5×0.75	0.6	8.1	103
5×1	0.6	8.3	130
5×1.5	0.7	10.4	170
5×2.5	0.8	12.1	255
5×4	0.8	15	360

Jiangsu Jinling Special cable Co., Ltd. Was founded in 1998. It is a comprehensive cable enterprise integrating research, development, production, sales and service. The company is located in nanjing, jiangsu province, the industrial concentration area, with convenient transportation. The registered trademark of the company is "Yong Heng", which covers an area of 30000 square meters, with a building area of 80, 000 square meters and annual production capacity of USD 190 million. The company has 159 employees, including 48 professional and technical talents.

The company is a high-tech manufacturing enterprise with high technical content, complete quality management system and advanced inspection methods. The company has the domestic first-class production line and testing equipment, the technical force is strong. Main products are: Medium and low Voltage power cables, control cables, instrument cables, Aluminum Alloy cable, bare conductor, Aerial bundled cable, electrical wire, compensation cable, high temperature resistant cable, fire resistant cable, fire retardant cable, wind cable, Marine cable, anti-corrosion, waterproof cable., are widely used in electric power, metallurgy, petroleum, chemical industry, automobile, papermaking, coal mine, shipbuilding, ports, lifting, building materials, pharmaceutical and other industries. Company strictly according to GB, IEC, CE, As, UL, VDS standards, and pass ISO9001 certification, to provide customers with a variety of specifications of wire and cable.

Excellent quality, perfect management and first-class service is our permanent puisuit.
