| Prod Model: |
H07V-U |
| Standards: |
IEC |
| Factory Area: |
100000mm2 |
| QC: |
25 |
| Trade Mark: |
Huatong |
| HS Code: |
8544492100 |
| Color: |
Yellow, Blue, Red. Brown |
| Use: |
Indoor or Underground |
| Voltage: |
LV |
| Original: |
China |
| Conductor: |
Solid |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Brand: |
Huatong |
Product Description

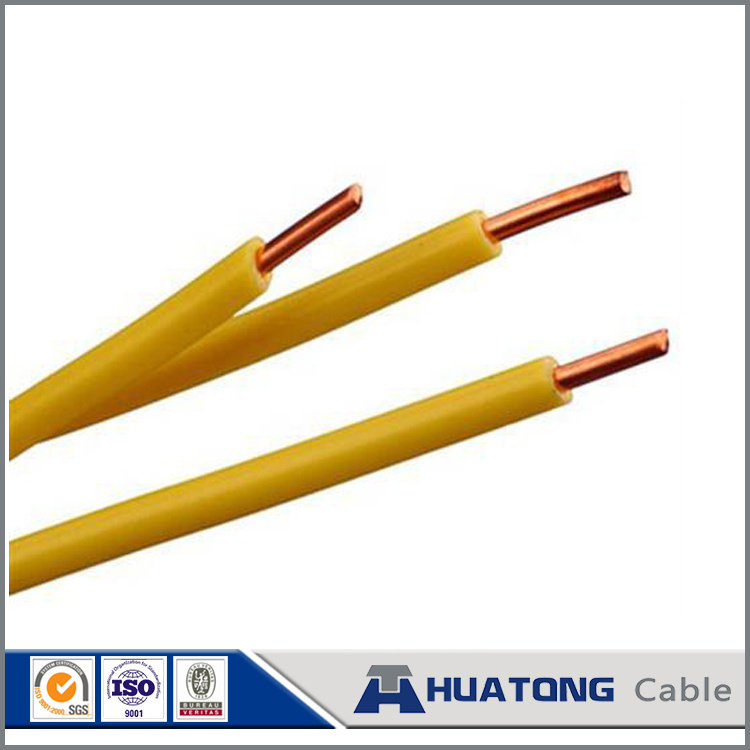

H07V-U BV Solid Wire Cable Bare Copper Electric Wire
Product Description:
Intruduction of the Electric Wire PVC Insulated Single Core H05V-U / H07V-U/ H07V-R wire:
1, The national certification of qualified manufacturers
2, Standard: GB 5023.1, IEC 60227/228, VDE
3, CE, RoHS, ISO ,SGS Certificate
4, Meet European standards and can be customized according to customer requirements
5, OEM, ODM cooperation
Applications:
H05V-U / H07V-U are harmonized PVC European single-conductor hook-up wires with a solid bare copper core. Ideal for the internal wiring of appliances, apparatus, switchboards and distributor boards or where a solid core is required. Suitable in dry rooms for fixed and flexible laying. May be used for exposed and embedded conduits. Found in electronic and electrical equipment and switchgear cabinets designed for export to a European country for MRO replacement of European made equipment wire.
The products is suitable for use in power installations, fixed wiring or flexible connections for electrical appliances, Like lighting, electronic equipment, instrument and communication equipment with rated voltage 300/500V, 450/750V, The Operating temperature: Allowing the wire of work for long time should not exceed +70 centigrade.
Nominal cross
section (mm2) | Number/diameter of core(mm) | Insulation thickness (mm) | Maximum outer diameter(mm) | Reference Weight(km/kg) | Conductor resistance at 20°C≤(Ω/km) |
| 0.5 | 1/0.80 | 0.6 | 2.4 | 8.44 | 36 |
| 0.75 | 1/0.97 | 0.6 | 2.6 | 11.02 | 24.5 |
| 1 | 1/1.13 | 0.6 | 2.8 | 13.85 | 18.1 |
| 1.5 | 1/1.38 | 0.7 | 3.3 | 20.2 | 12.1 |
| 1.5 | 7/0.52 | 0.7 | 3.4 | 21.62 | 12.1 |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 31.9 | 7.41 |
| 2.5 | 7/0.68 | 0.8 | 4.2 | 34.89 | 7.41 |
| 4 | 1/2.25 | 0.8 | 4.4 | 46.95 | 4.61 |
| 4 | 7/0.85 | 0.8 | 4.8 | 50.2 | 4.61 |
| 6 | 1/2.76 | 0.8 | 4.9 | 66.8 | 3.08 |
| 6 | 7/1.04 | 0.8 | 5.4 | 71.04 | 3.08 |
| 10 | 1/3.58 | 1 | 6.4 | 111.62 | 1.83 |
| 10 | 7/1.35 | 1 | 6.8 | 118.61 | 1.83 |
| 16 | 7/1.70 | 1 | 8 | 178.68 | 1.15 |
| 25 | 7/2.14 | 1.2 | 9.8 | 280.51 | 0.727 |
| 35 | 7/2.52 | 1.2 | 11 | 378.97 | 0.524 |
| 50 | 19/1.78 | 1.4 | 13 | 508.07 | 0.387 |
| 70 | 19/2.14 | 1.4 | 15 | 715.76 | 0.268 |
| 95 | 19/2.52 | 1.6 | 17 | 989.79 | 0.193 |
| 120 | 37/2.03 | 1.6 | 19 | 1228.03 | 0.153 |
| 150 | 37/2.25 | 1.8 | 21 | 1509.8 | 0.124 |
| 185 | 37/2.52 | 2 | 23.5 | 1892.29 | 0.0991 |
| 240 | 61/2.25 | 2.2 | 26.5 | 2489.14 | 0.0754 |
| 300 | 61/2.52 | 2.4 | 29.5 | 3114.25 | 0.0601 |
| 400 | 61/2.85 | 2.6 | 33.5 | 3967.07 | 0.047 |
If you are interested in our products, plsease free freel to contact our sales team. We will reply your in 24hours.
