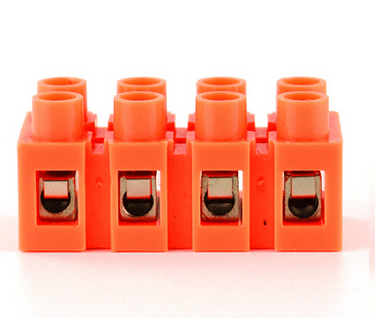

H2519-3 4 Core Waterproof Terminal Block

Name: H2519-3 4 Core Waterproof Terminal Block
Brand: all-electronics-online.com
SKU: 758820655
Availability: InStock
Rating: 4.9 (123 reviews)

Price:	US $ 0.125-0.13/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Lighting
Environmental Protection:	Resistance to Environmental
Connection Mode:	Push-Pull Connection
Shape:	Rectangle
Contact Termination Form:	Screws Fixed

Product Description

Features:
1) High precision

2) Excellent inoxidability

3) Great ingredient accuracy and high intensity

4) High corrosion resistance

5) Our own mold workshop and injection molding workshop

6) Specially designed for electrical appliances, lighting fixtures, small transformers, and for all kinds of all kinds of applications which require safety connections and have the possibility of withstanding high temperatures.

Specifications

Item No.	H 2519-4
Wire section	0.5~6 mm2
Rated current / voltage	36A/600V
Wide/ High /Thick	44/ 21 /21 mm

Item No.	Cable Size	Rated current	Rated voltage	Item Size mm	Poles
H2519-2	0.5-6mm²	36A	600V	212121mm	2P
H2519-3	0.5-6mm²	36A	600V	312121mm	3P
H2519-4	0.5-6mm²	36A	600V	442121mm	4P
H2519-5	0.5-6mm²	36A	600V	502121mm	5P
H2519-6	0.5-6mm²	36A	600V	662121mm	6P
H2519-8	0.5-6mm²	36A	600V	882121mm	8P
H2519-10	0.5-6mm²	36A	600V	1092121mm	10P
H2519-12	0.5-6mm²	36A	600V	1322121mm	12P

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
