Hall Type Proximity Switch (GK-1, GK-2)

Hall Type Proximity Switch (GK-1, GK-2)
Price: US $ 3.08-6.17/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Power: DC5-12V
Sensing Distance: Gk-1:5mm; Gk-2:10mm
Response Frequency: 3kHz
Output Current: PNP 20mA
Protection Grade: IP65-67
Principle: Hall
Wires: PNP (',Three-Wires)
Standard: Standard

Product Description

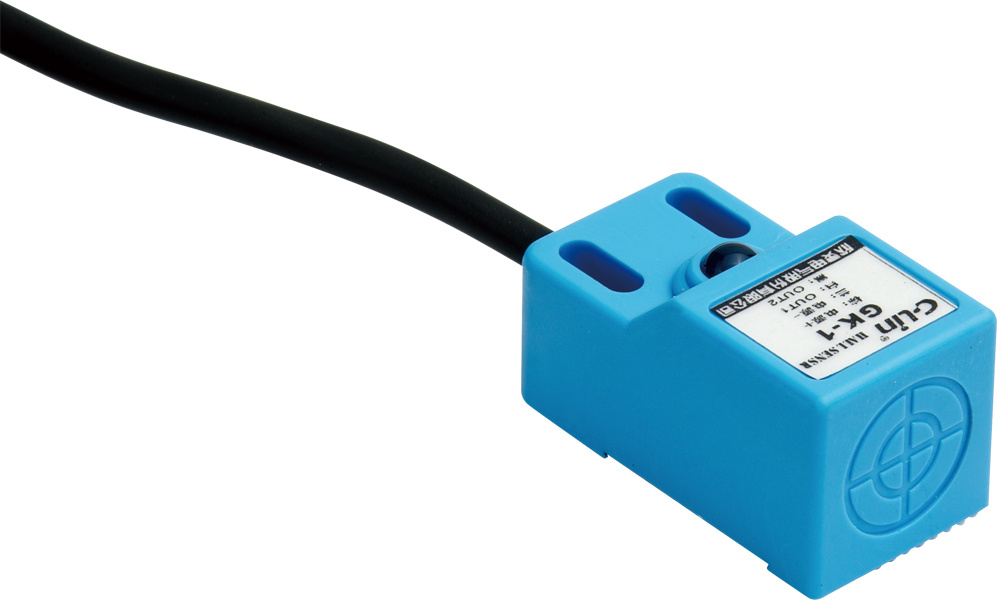

Hall Type Proximity Switch(GK-1, GK-2 )
1. Sending out signal when close to some target object
2. IP65-67 protection grade
3. Vibration proof, water proof and oil proof
4. Non-contact detecting device
5. Widely used in machinery, textile, metallurgy, tobacco, railway, war industry and so on
Switch  CategoryHall  Type  Proximity  Switch
Outward  Appearance  CodeCK-1,   GK-2
Working  PowerDC5-12V
Detection  DistanceGK-1: 5mm± 15%
GK-2: 10mm± 15%
Response  Frequency3KHz
Output  CurrentPNP  20mA
Working  EnvironmentTemperature: -25-  +75Centigrade(no  ice), Humidity: 35-95%RH
Protection  GradeIP65-IP67
InstallationGK-1: Angular  Column  Type
GK-2: Cylinder  Type
