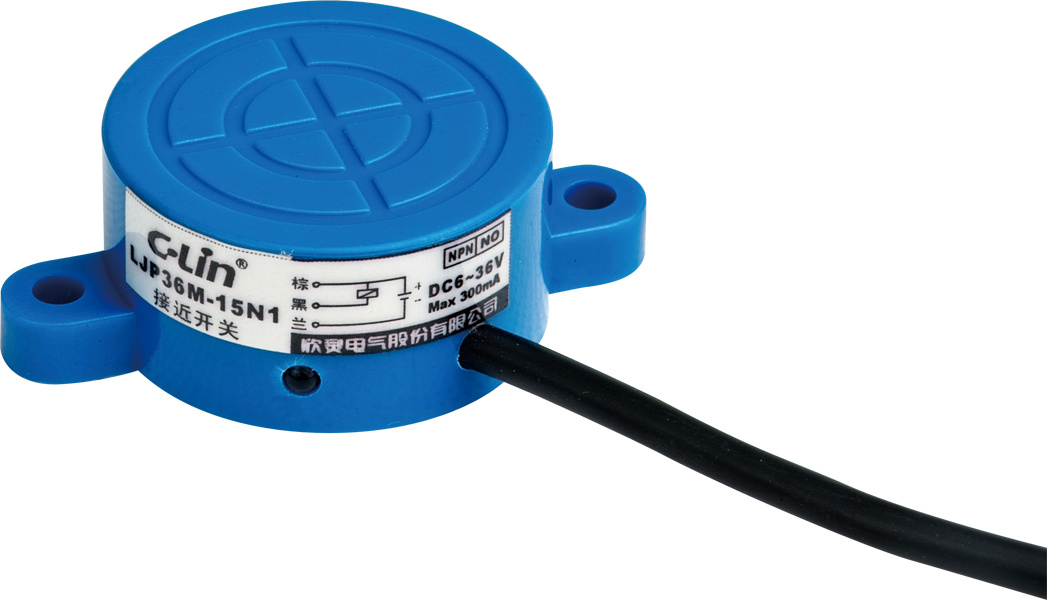

Inductive Plane Installation Type Proximity Switch/Sensor (LJP36, 42, 48, 55M Series)

Name: Inductive Plane Installation Type Proximity Switch/Sensor (LJP36, 42, 48, 55M Series)
Brand: all-electronics-online.com
SKU: 740331795
Availability: InStock
Rating: 4.5 (108 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LJP36, 42, 48, 55M Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Installation:	Non-Flush
Working Power:	DC6-36V, AC90-250V
Working Temperature:	-25 to +75 Centigrade(No Ice)
Detected Object:	Metal ( Iron, Steel, Copper etc. )
Output:	Switching Sensor
Usage:	Position Sensor
Theory:	Magnetic Sensor
Detection Distance:	15mm;18mm;20mm;25mm
Humidity:	35~95%Hr
Material:	Heat-Resisting ABS

Product Description

Description
Proximity switch is one of position switches. When it operates, no need to make a mechanical
contact. It is also called no contact switch. As soon as the detected object approaches to the
surface of the sensor distance range, It begins to act with no contact, no pressure form, then
drive AC or DC electrical or computer equipment to provide control instructions.
C. Lin brand proximity switches covers: Inductive proximity switches, Capacitive proximity switches,
Hall sensor, photoelectrical sensors. They are widely used in machinery, texitle, metallurgy, tobacco,
railway, war industry and so on.

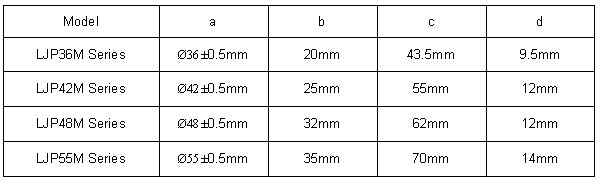

Outline Dimension

Model			LJP36M Series	LJP42M Series	LJP48M Series	LJP55M Series
DC Type	NPN	NO	LJP36M-15N1	LJP42M-18N1	LJP48M-20N1	LJP55M-25N1
	NPN	NC	LJP36M-15N2	LJP42M-18N2	LJP48M-20N2	LJP55M-25N2
	PNP	NO	LJP36M-15P1	LJP42M-18P1	LJP48M-20P1	LJP55M-25P1
	PNP	NC	LJP36M-15P2	LJP42M-18P2	LJP48M-20P2	LJP55M-25P2
	2-wire	NO	LJP36M-15D1	LJP42M-18D1	LJP48M-20D1	LJP55M-25D1
	2-wire	NC	LJP36M-15D2	LJP42M-18D2	LJP48M-20D2	LJP55M-25D2
AC Type	2-wire	NO	LJP36M-15A1	LJP42M-18A1	LJP48M-20A1	LJP55M-25A1
AC Type	2-wire	NC	LJP36M-15A2	LJP42M-18A2	LJP48M-20A2	LJP55M-25A2
Detection distance			15mm±15%	18mm±15%	20mm±15%	25mm±15%
Response frequency		DC	0.1KHz	0.05KHz	0.1KHz	0.1KHz
Response frequency		AC	25Hz	25Hz	25Hz	25Hz
