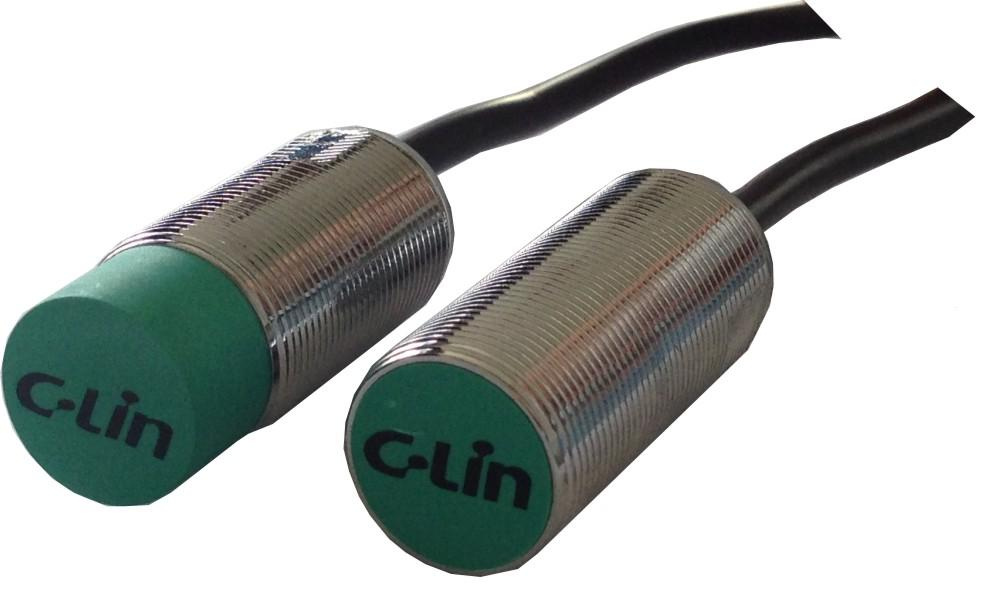

Inductive Type Proximity Switch (CHJ30)

Inductive Type Proximity Switch (CHJ30)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: CHJ30 Series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter: 18mm
Working Power: DC10-30V, AC100-240V
Working Temperature: -25 to +70 Degrees
Measuring Material: Chrome Copper Alloy
Output: Switching Sensor
Usage: Position Sensor
Theory: Magnetic Sensor
Standard: Standard

Product Description




Feature

Adopt specialized chip inside; stable working performance, strong anti-interference capability

Surface mounted technology; good consistency, high detection accuracy, small error

Imported components, low residual voltage, small consumption current

Polarity protection, surge absorbability; load short circuit protection etc.

Ambient temperature: -25ºC~+70ºC; low temperature-drift

Chrome copper alloy housing, high mechanical strength

Short housing size, can be used to install in a small place

Protection class: IP67; waterproof product


Ordering Information

Note: conventional cable length is 2m; other lengths can be customized.

DiameterModelTechnical SpecificationAutonics Type
M30 AC 2-wire CHJ30-10A1flush type, 10mm sensing distance,
AC100V-240V  2-wire NO
PR30-10AO
CHJ30-10A2flush type, 10mm sensing distance,
AC100V-240V  2-wire NC
PR30-10AC
CHJ30M-15A1non-flush type, 15mm sensing distance,
AC100V-240V 2-wire NO
PR30-15AO
CHJ30M-15A2non-flush type, 15mm sensing distance,
AC100V-240V  2-wire NC
PR30-15AC
M30 DC 2-wireCHJ30-10D1flush type,10mm sensing distance,
DC10-30V 2-wire NO
PRT30-10DO
CHJ30-10D2flush type, 10mm sensing distance,
DC10-30V 2-wire NC
PRT30-10DC
CHJ30M-15D1non-flush type, 15mm sensing distance,
DC10-30V 2-wire NO
PRT30-15DO
CHJ30M-15D2non-flush type, 15mm sensing distance,
DC10-30V 2-wire NC
PRT30-15DC
M30 DC 3-wire NPNCHJ30-10N1flush type, 10mm sensing distance,
DC10V-30V NPN NO
PR30-10DN
CHJ30-10N2flush type, 10mm sensing distance,
DC10V-30V NPN NC
PR30-10DN2
CHJ30M-15N1non-flush type, 15mm sensing distance,
DC10V-30V NPN NO
PR30-15DN
CHJ30M-15N2non-flush type, 15mm sensing distance,
DC10V-30V NPN NC
PR30-15DN2
M30 DC 3-wire PNPCHJ30-10P1flush type, 5mm sensing distance,
DC10V-30V PNP NO
PR30-10DP
CHJ30-10P2flush type, 5mm sensing distance,
DC10V-30V PNP NC
PR30-10DP2
CHJ30M-15P1non-flush type, 10mm sensing distance,
DC10V-30V  PNP NO
PR30-15DP
CHJ30M-15P2non-flush type, 10mm sensing distance,
DC10V-30V PNP NC
PR30-15DP2


Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.

Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.

The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.

Xinling is ready for creating a magnificent tomorrow together with you!
