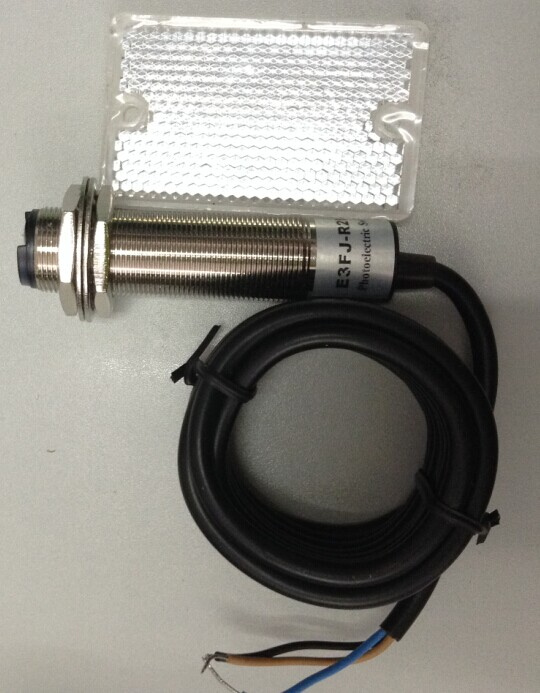

Photoelectric Sensor (E3FJ Series)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
E3FJ Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Power: |
DC6-36V, AC90-250V |
| Working Temperature: |
-20 to +70 Degrees |
| Length Of Output Wire: |
Routine:1.5m(Other Length Can Be Customized) |
Product Description
DescriptionA photoelectric switch is a device used to detect the distance, absence, or presence of an
object by using a light transmitter, often infrared, and a photoelectric receiver. They are used
extensively in machinery, textile, metallurgy, tobacco, railway, war industry and so on. There are
three different functional types: through beam (opposed), retroreflective, and diffused type
( proximity-sensing) .
A through beam (opposed) arrangement consists of a receiver located within the line-of-sight of the transmitter. In this mode, an object is detected when the light beam is blocked from
getting to the receiver from the transmitter.
A retroreflective arrangement places the transmitter and receiver at the same location and uses
a reflector to bounce the light beam back from the transmitter to the receiver. An object is sensed
when the beam is interrupted and fails to reach the receiver.
A diffused (proximity sensing) arrangement is one in which the transmitted radiation must reflect off
the object in order to reach the receiver. In this mode, an object is detected when the receiver sees

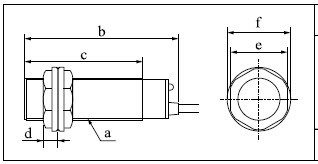

the transmitted source rather than when it fails to see it.Outline Dimension
Remarks:The dimensions of E3FJ-DS10, E3FJ-DS30, E3FJ-R2, E3FJ-5 are the same.
Notes for Enquiry:The customer shall tell the exact model and quantity when enquiry. For example:E3FJ-DS10C1 250pcs
|
Diameter |
M18*1 |
M18*1 |
M18*1 |
M18*1 |
|
Detection mode |
Diffuse Type |
Diffuse Type |
Retroreflective Type |
Through-beam Type |
|
DC Type |
NPN |
NO |
E3FJ-DS10C1 |
E3FJ-DS30C1 |
E3FJ-R2C1 |
E3FJ-5C1 |
|
NC |
E3FJ-DS10C2 |
E3FJ-DS30C2 |
E3FJ-R2C2 |
E3FJ-5C2 |
|
NO+NC |
E3FJ-DS10C4 |
E3FJ-DS30C4 |
E3FJ-R2C4 |
|
|
PNP |
NO |
E3FJ-DS10B1 |
E3FJ-DS30B1 |
E3FJ-R2B1 |
E3FJ-5B1 |
|
NC |
E3FJ-DS10B2 |
E3FJ-DS30B2 |
E3FJ-R2B2 |
E3FJ-5B2 |
|
NO+NC |
E3FJ-DS10B4 |
E3FJ-DS30B4 |
E3FJ-R2B4 |
|
|
AC Type |
2-wire NO |
E3FJ-DS10A1 |
E3FJ-DS30A1 |
E3FJ-R2A1 |
E3FJ-5A1 |
|
2-wire NC |
E3FJ-DS10A2 |
E3FJ-DS30A2 |
E3FJ-R2A2 |
E3FJ-5A2 |
|
Detection distance |
10cm(adjustable) |
30cm(adjustable) |
≤2m |
≤5m |
|
Standard detected object |
5*5cm white mat paper |
5*5cm white mat paper |
reflector TD-02 |
5*5cm any object |
Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.
Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.
The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.
Xinling is ready for creating a magnificent tomorrow together with you!
