| Prod Model: |
Infrared Heating Lamp |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Light Source: |
Halogen |
| Wave Length: |
0.8-1.8 Micron |
| Color Temperature: |
2400-2500K |
| Heating Unit: |
Tungsten Wire |
| Surface Treatment: |
Half Golden Plated or Coated White Processing |
| Dia: |
Customized |
| Voltage: |
110-240V,220-380V,Customized |
| Power: |
400-2000W,Customized |
| Lifetime: |
5000 Hours |
Product Description

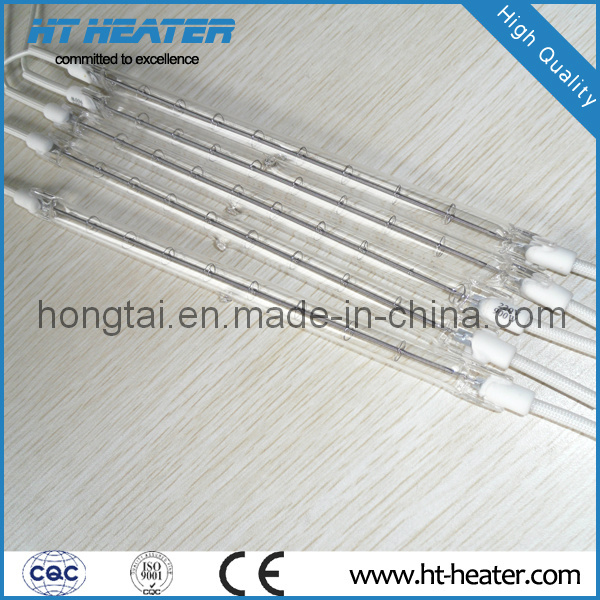

Halogen Quartz Infrared Heating Lamp
IntroductionShort wave quartz heating lamp used with the circle of tungsten wire to radiation, closed in quartz glass tube. Its color temperature is 2400-2500K, and its wave length range is 0.8-1.8 micron, reaching the peak at 1.2 micron. Turning on or turning off quickly, and temperature rises fast(from zero to peak just needs 1-2 second). The heating lamp has two installation methods: Horizonal installation and vertical installation.
Type1. Quartz short wave single tube heating lamp: Using transparent quartz single tube as a sleeve, saving space and convenient installation. Working life reaches 5000hours. General outer diameter of this kind is Φ 8, Φ 10, Φ 12, etc. We can make half golden plated or coated white processing for the quartz lamp to improve efficiency. Quartz short wave single tube heating lamp can be made with transparent, frosted or red quartz tube. It is also can be made into various shapes.
2. Quartz short wave twin tubes heating lamp: Using quartz twin tubes as outer suppoter of heating lamp. Because the special twin tubes design, this kind of lamp has strong radition power and high mechanical strength. Its working life reaches 5000 hours.
Feature1. Strong radiation and penetration
2. Fast heating respnse, reaching 100% power after be electrified
3. Save energy, environmental-friendly
4. Good thermostability
5. Easy installation
ApplicationQuartz short wave heating lamp is used in industrial manufacturing processes including curing of coatings, shrink tunnels, heating of plastic prior to forming, plastic welding, printing industry, processing glass, cooking and browning food, automotor production, and house heating. They are used when high temperatures are required, fast responses or temperature gradients are needed or products need to be heated in certain areas in a targeted way.
When you inquiry, pls sspecify the following details1. Diameter, total length, voltage, power, working temperature
2. Termination zone, how you want the heater to be connected with the electricity (screws, cable, cap etc. )
3. Surface quartz tube color
4. Connection
5. It is perferred to offer a drawing with all parameter
| Short-wave infrared (SW) heating lamp |
| Model | Power
(W) | Voltage
(V) | Color temperature
(K) | The peak wavelength
(um) | Life
(H) | Diameter
(mm) | Size
(mm) |
|
| SW-1 | 400 | 110-240 | 2450 | 1-1.5 | 5000 | 8-10 | 160-254 |
| SW-1 | 500 | 110-240 | 2450 | 1-1.5 | 5000 | 8-10 | 160-254 |
| SW-1 | 600 | 110-240 | 2450 | 1-1.5 | 5000 | 8-10 | 180-500 |
| SW-1 | 700 | 110-240 | 2450 | 1-1.5 | 5000 | 8-10 | 160-254 |
| SW-1 | 750 | 110-240 | 2450 | 1-1.5 | 5000 | 8-10 | 160-254 |
| SW-1 | 800 | 110-240 | 2450 | 1-1.5 | 5000 | 8-10 | 160-254 |
| SW-1 | 1000 | 110-240 | 2450 | 1-1.5 | 5000 | 10-12 | 350-800 |
| SW-1 | 1200 | 110-240 | 2450 | 1-1.5 | 5000 | 10-12 | 350-800 |
| SW-1 | 1300 | 110-240 | 2450 | 1-1.5 | 5000 | 10-12 | 350-800 |
| SW-1 | 1500 | 110-240 | 2450 | 1-1.5 | 5000 | 10-12 | 350-800 |
| SW-1 | 1600 | 220-380 | 2450 | 1-1.5 | 5000 | 10-12 | 350-800 |
| SW-1 | 2000 | 220-380 | 2450 | 1-1.5 | 5000 | 10-12 | 350-800 |
