| Prod Model: |
GYXTC8S Figure 8 Optical Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
Gyxtc8s Figure 8 Optical Cable |
| Fiber Count: |
2-24 Core |
| Loose Tube Material& Filling Material: |
PBT&Jerry |
| Structure Section: |
"8" Figure Cross Section |
| Color Of Loose Tube: |
Blue, Orange, Green Brown, Grey, White, Red etc |
| Central Strength Member: |
Reinforced Messenger Wire |
| Strength Material: |
Corrugated Steel Tape |
| Core Moisture Protection Methodology: |
Water Blocking Tape or Filling Compound |
| Installation Style: |
Self-Support Aerial |
| Application: |
Figure 8 Optical Cable |
| Type: |
Single-mode Fiber |
| Certification: |
Reach, Tlc, etc |
| Connection Structure: |
Figure 8 Optical Cable |
| Allowed Lateral Pressure: |
Long Term:1000n; Short Term:2000n |
| Core: |
2-24 Core |
| Brand: |
Tw-Scie or OEM |
| Sheath Material: |
MDPE / HDPE / Lszh PE |
Product Description
GYXTC8S Hanging Figure 8 Single Mode Fiber Optical Cable Details:
Product Description
This GYXTC8S Figure 8 Optical Cable has been designed for long haul / backbone application. Our stranded loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunication grade optical fiber. GYXTC8S Figure 8 Optical Cables are designed for outdoor aerial easy and economical self-support installation.

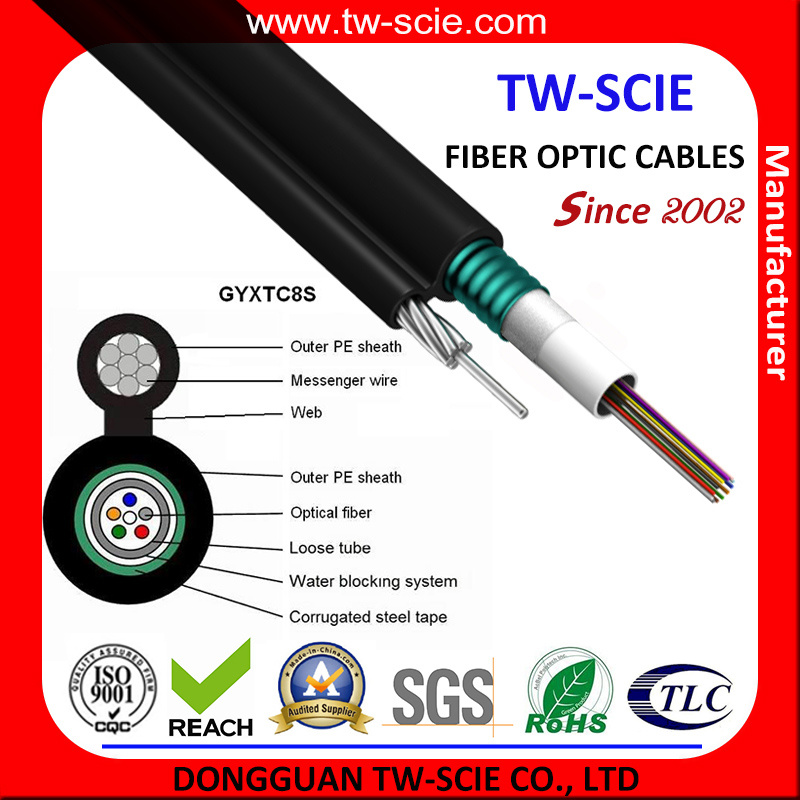

GYXTC8S Hanging Figure 8 Single Mode Fiber Optical Cable Structure &Properties:
1. Up to 24 fibers The loose tube OS centrally situated with good excess length and minimizes the influence of lateral crush.
2. Water blocking tape armored and PE outer sheath prociding providing property crush resistance and gun shot resistance features.
3. Cross-section shows figure 8. Stranded wires as self supporting member providing excellent strain performance and convenient installation.
GYXTC8S Hanging Figure 8 Single Mode Fiber Optical Cable Applicable Fields:
This cable has been designed for aerial application with messenger wire as support member made excellent anti-pull performance and easy installation.
GYXTC8S Hanging Figure 8 Single Mode Fiber Optical Cable Technical Date:
Technical data: |
| Fiber core | Stranded Wire | Cable diameter (mm) | Messenger cable Diameter (mm) | Cable Height (mm) | Cable weight (kg/kg) | Min.bend radius | Max. Running tension (N) | Safe running tension (N) | Min.Breaking tension (N) | Max.crush loading (N/100mm) |
| Dynamic | Static | Short term | Long term |
| 2-24 | 1×7-3.0 | 8.3 | 5.0 | 15.8 | 135 | 10D | 20D | 3000 | 1000 | 7990 | 2000 | 1000 |
|
|
GYXTC8S Hanging Figure 8 Single Mode Fiber Optical Cable Packaging Detail:
GYXTC8S Figure 8 Optical Cable package are wooden drums, 3-4KM per drum. We also accept custom cabledrum from customers.
Our Quality & Service:
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1.Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.
Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate
As professioanl manufacturer on optical fibre cables, we can not only offer you optical fibre cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.
Contact with me for this GYXTC8S Hanging Figure 8 Single Mode Fiber Optical Cable.
DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
The main products of our enterprise are:
Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
