| Prod Model: |
aluminium conductor |
| Item Name: |
Hard Drawn Concentric Lay Stranded Aluminium |
| AAAC Conductor: |
All Aluminum Alloy Conductor |
| Layer: |
Ec Grade Aluminum Wires |
| Standard: |
IEC, ASTM, BS, DIN |
| Cross Area(mm): |
25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2 |
| Type: |
Bare |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Aluminum |
| Insulation Material: |
Bare |
| Certification: |
ISO9001 |
| Brand: |
Dayuan |
Product Description
Hard drawn concentric lay stranded Aluminium conductor=============================================================
Company Information
1: a group with seven sub-companies;

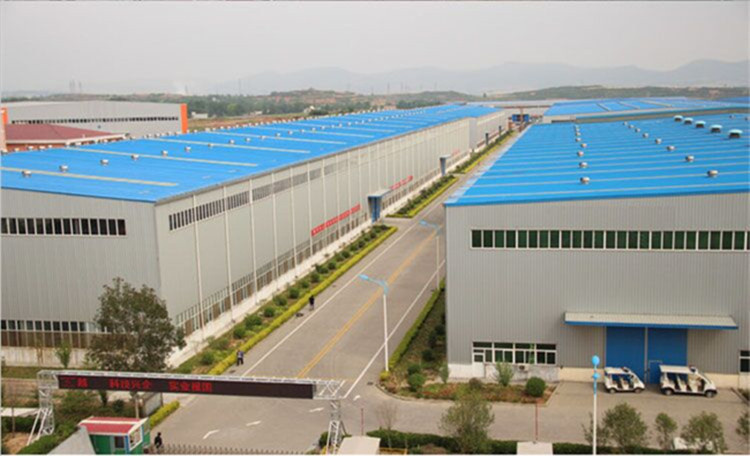

2: Factory about 200,081 square meters;
3: 800 staffs and 40 engineers, 11 production lines;
4: production capacity: 100,000m/day.
=============================================================

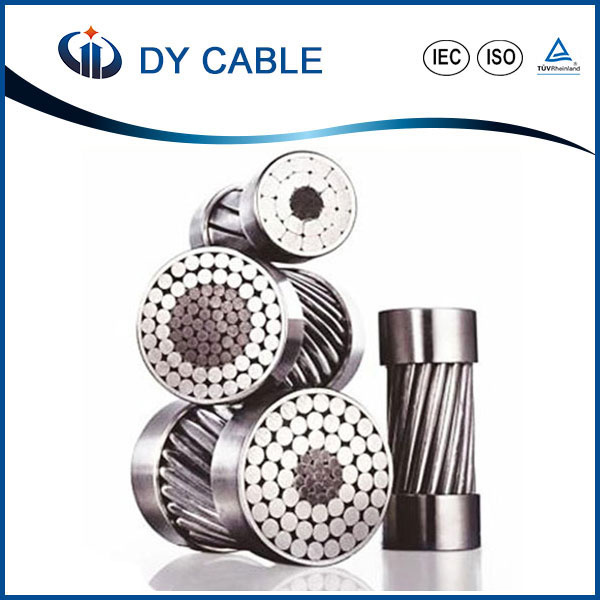

AAC ACSR Conductor
ACSR is a composite concentric-lay-stranded conductor. Galvanized steel strand or strands form the central core of the conductor, around which is stranded one or more layers of EC Grade Aluminum wires. The steel core may consist of a single strand or a concentric stranded cable of 7, 19, 37, or more wires. Numerous combinations of aluminum and steel strands and layers are possible.
=================================================================
Applications
Conductor(AAC and ACSR) have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.
==================================================================
Expressed Method of Product
1: Code
Stranded wire..............................................J
Aluminum conductor.........................................…L
Steel core .............................................…..G
Corrosion.................................................F
2: Expressed method of product
Example:
Aluminium conductors steel-reinforced, Nominal cross area120mm2,steel-reinforced20 mm--------- LGJ -120/20 GB1179-83
=============================================================
Material Standard
1) The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997(equivalent to IEC 60889:1987).
2) The zinc coated steel wire used for ACSR conforms to IEC 60888:1987.
3) Production can be arranged according to customers requirements for material standard,etc.
Construction of All Aluminum Conductor and Aluminum Conductor Steel Reinforced
================================================================
Standards:
ASTM-B232 Standard specification for Concentric-Lay-Stranded Aluminum 1350 Conductors
BS215-2 aluminum conductors steel-reinforced -For overhead power transmission
DIN48204 Steel reinforced aluminum stranded conductors
IEC209 Aluminum stranded conductor steel reinforced
Customized type available
==============================================================
Packing & Delivery for AAC ACSR Conductor
Package: wooden drum, or wooden steel drum, your requirement is ok;
Delivery: according order qty, usually 20-30days after contract
===============================================================

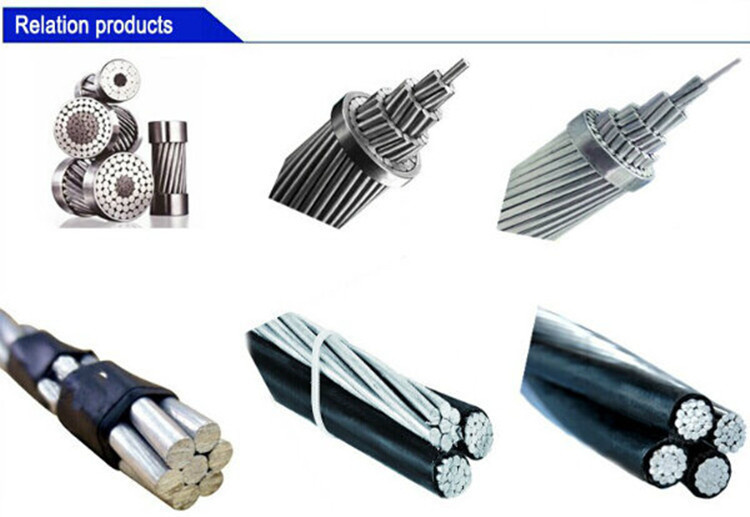

Products we can Produce
Mainly Electric Cables & Wires, 300 Varieties, 2000Kinds Specifications
| No. | Products Name |
| 1 | electrical wires, power cables, control cables |
| 2 | solar cables |
| 3 | aerial cables |
| 4 | all aluminum conductor(AAC) |
| 5 | aluminum conductor steel reinforced wire(ACSR) |
| 6 | all aluminum alloy conductor(AAAC) |
==================================================
==================================================
Contacts
Name:Mandy
Mobile number: +86-137-2168-9492
Website:www.yr-group.cn
Group Address:1209 Room, 12th floor, Luoyang Asian Sun Group Co., Ltd, Hundsun Science&Technology Park, Luoyang, Henan Province, China
Factory Address: Yichuan Electricity Industry zone, Luoyang, Henan Province, China
Luoyang Da Yuan Cable Factory Co., Ltd. is founded in the Sept. 2011 with registered fund 200 million RMB which is the subsidiary of Luoyang Asian Sun Industrial Group Co., Ltd. We can produce all kinds of high and low voltage electric wire and cables, and have been one of the new technology development enterprise made scientific, industry, trading as a whole. Main products include power cables, PV cable, control cables, branching cables, aerial cables, Most important thing is that we also produce the raw material-aluminium wire rod coperated with Ls Group etc. Seven big series, more than 300 varieties, nearly. 2000. Specifications.
Dayuan Cable is committed to "all for customer satisfaction", comprehensively implements the ISO9001 quality system, effectively guarantees the enterprise competitiveness in the market. Short-term goal for company's development is giving full play to the advantages of talents, technology and equipment, improving product quality, building the "Da Yuan" brand in the domestic, making the product into the national grid, Its farther goal is carrying out the strategy of sustainable development, making the "quality, price, service" well done to step into the international market, setting up national cable brand, and achieving the leapfrog development of the enterprise by virtue of producing higher level of series cable products.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
