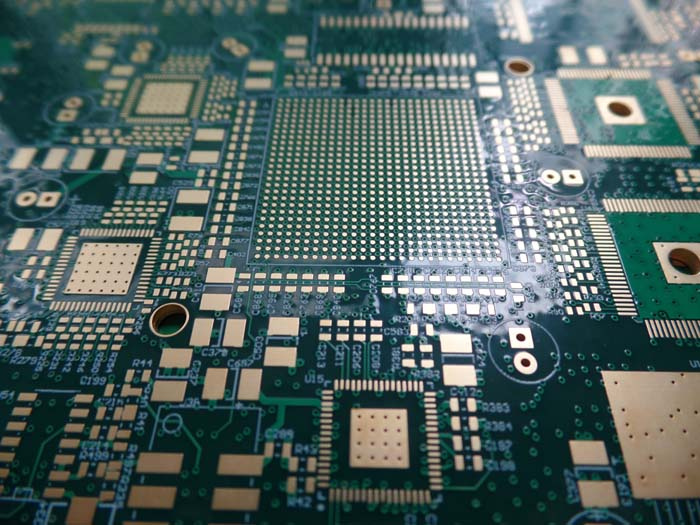

Hard Gold Edge Connector PCB Board on Taconic Trf-45
| Price: |
US $ 0.41/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-551-V5.51 |
| Board Thickness: |
1.6mm |
| Finished Copper Thickness: |
1 Oz |
| Surface Finish: |
OSP |
| Soldermask Color: |
Gloss Green,Taiyo Psr-2000gt600d |
| Silkscreen Color: |
No Silkscreen Required |
| Minimum Trace And Space: |
6 Mil/9 Mil |
| Minimum / Maximum Holes: |
0.9/2.3mm |
| Via: |
Plated Through Hole(Pth), Via Open |
| Test: |
100% Electrical Test Prior Shipment |
| Type Of Artwork To Be Supplied: |
Email File, Gerber RS-274-X, Pcbdoc etc |
| Structure: |
Multilayer Rigid PCB |
| Material: |
Epoxide Woven Glass Fabric Laminate |
| Production Process: |
Semi-Additive Process |
| Dielectric: |
Taconic Trf-45 |
Product Description
Company Profile
Founded in Shenzhen China in 2003 Bicheng Enterprise Limited is a professional PCB export
enterprise. We have established a good relationship of cooperation with well-known enterprises
in the same industry. Our PCB products range from fiberglass PCB, high frequency PCB to metal
core PCB and ceramic PCB's.

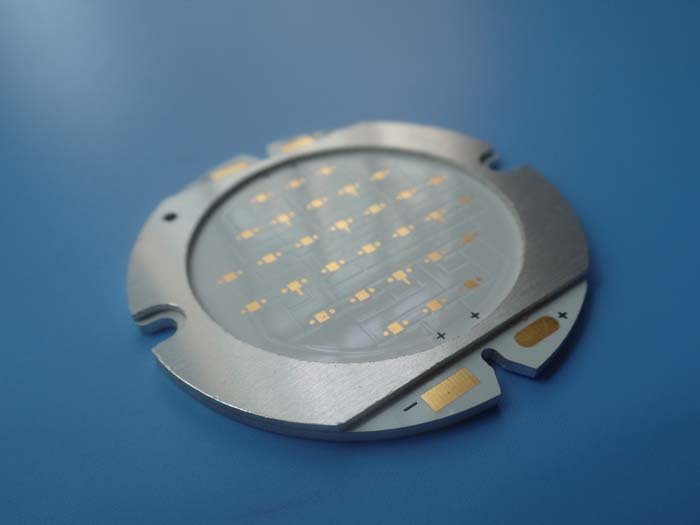

Aluminum PCB

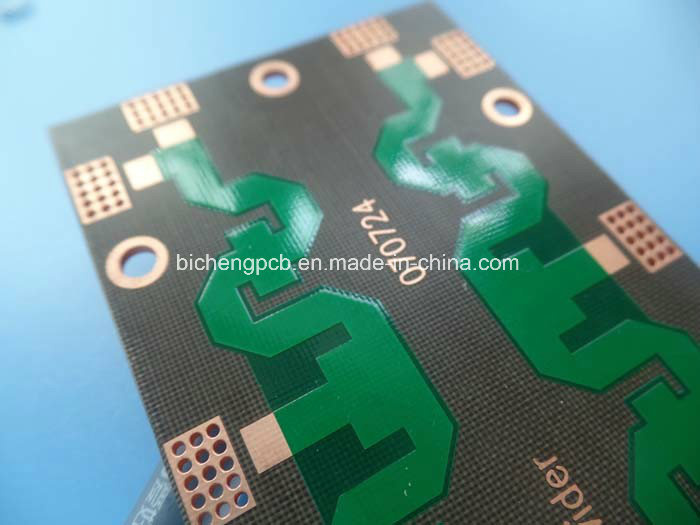

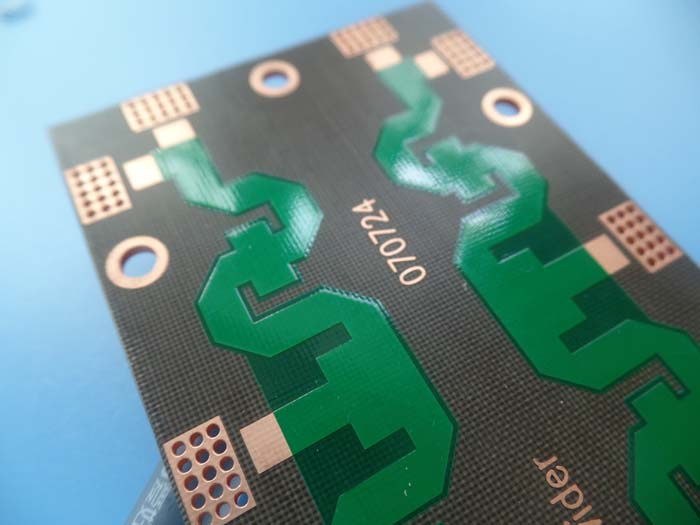

High Frequency PCB

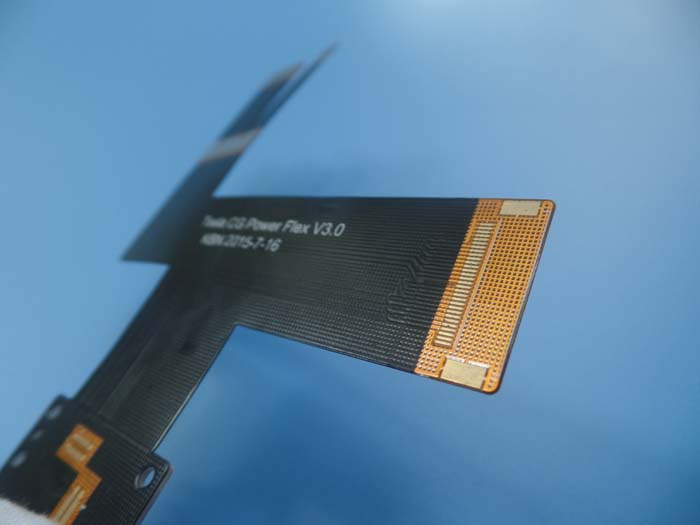

Flex PCB
Printed Circuit Board
Printed Circuit Board Capability| Parameter | Value |
| Layer Counts | 1-32 |
| Substrate Material | FR-4(including High Tg 170, High CTI>600V);
Aluminum based;
RO4350B, RO4003C;
Polyimide, 94HB and FR-1 (upon request) |
| Maximum Size | Flying test: 900*600mm,
Fixture test 460*380mm,
No test 1100*600mm |
| Board Outline Tolerance | ±0.0059" (0.15mm) |
| PCB Thickness | 0.0157" - 0.3937" (0.40mm--10.00mm) |
| Thickness Tolerance(T≥0.8mm) | ±8% |
| Thickness Tolerance(t<0.8mm) | ±10% |
| Insulation Layer Thickness | 0.00295" - 0.1969" (0.075mm--5.00mm) |
| Minimum Track | 0.003" (0.075mm) |
| Minimum Space | 0.003" (0.075mm) |
| Outer Copper Thickness | 35µm--420µm (1oz-12oz) |
| Inner Copper Thickness | 17µm--420µm (0.5oz - 12oz) |
| Drill Hole(Mechanical) | 0.0059" - 0.25" (0.15mm--6.35mm) |
| Finished Hole(Mechanical) | 0.0039"-0.248" (0.10mm--6.30mm) |
| DiameterTolerance(Mechanical) | 0.00295" (0.075mm) |
| Registration (Mechanical) | 0.00197" (0.05mm) |
| Aspect Ratio | 12:1 |
| Solder Mask Type | LPI |
| Min Soldermask Bridge | 0.00315" (0.08mm) |
| Min Soldermask Clearance | 0.00197" (0.05mm) |
| Plug via Diameter | 0.0098" - 0.0236" (0.25mm--0.60mm) |
| Impedance Control Tolerance | ±10% |
| Surface Finish | HASL,HASL LF,ENIG,Imm Tin,
Imm Ag, OSP, Gold Finger |

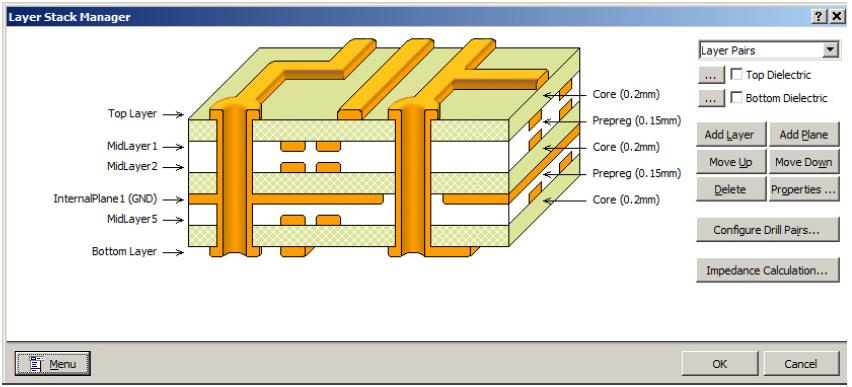

The Difficulty Factors for Multilayer boards
Multilayer PCB's represent one of the most complicates products in PCB industry. In order to
design producible multilayer PCB's, it is imperative that PCB designers understand the processes
and difficulty factors
*Build-up
The more layers in a multilayer PCB's, the greater risk of mis-registration during laminate process.
The difficulty factor, therefore, increase with an increasing layer counts.
*Core thickness of rigid inner laminates
Inner layers are normally based on thin rigid laminate cores with copper cladding. The thinner the
rigid laminates, the more difficult they are to handle, for example, in the etching process.
*Thickness tolerance (total thickness inclusive of copper foils)
The difficulty factor and the rejection rate depend very much upon the thickness tolerance required,
and indirectly upon the layer build-up. When thickness tolerance T=±10%, obviously rejection ratio
trends to zero.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
