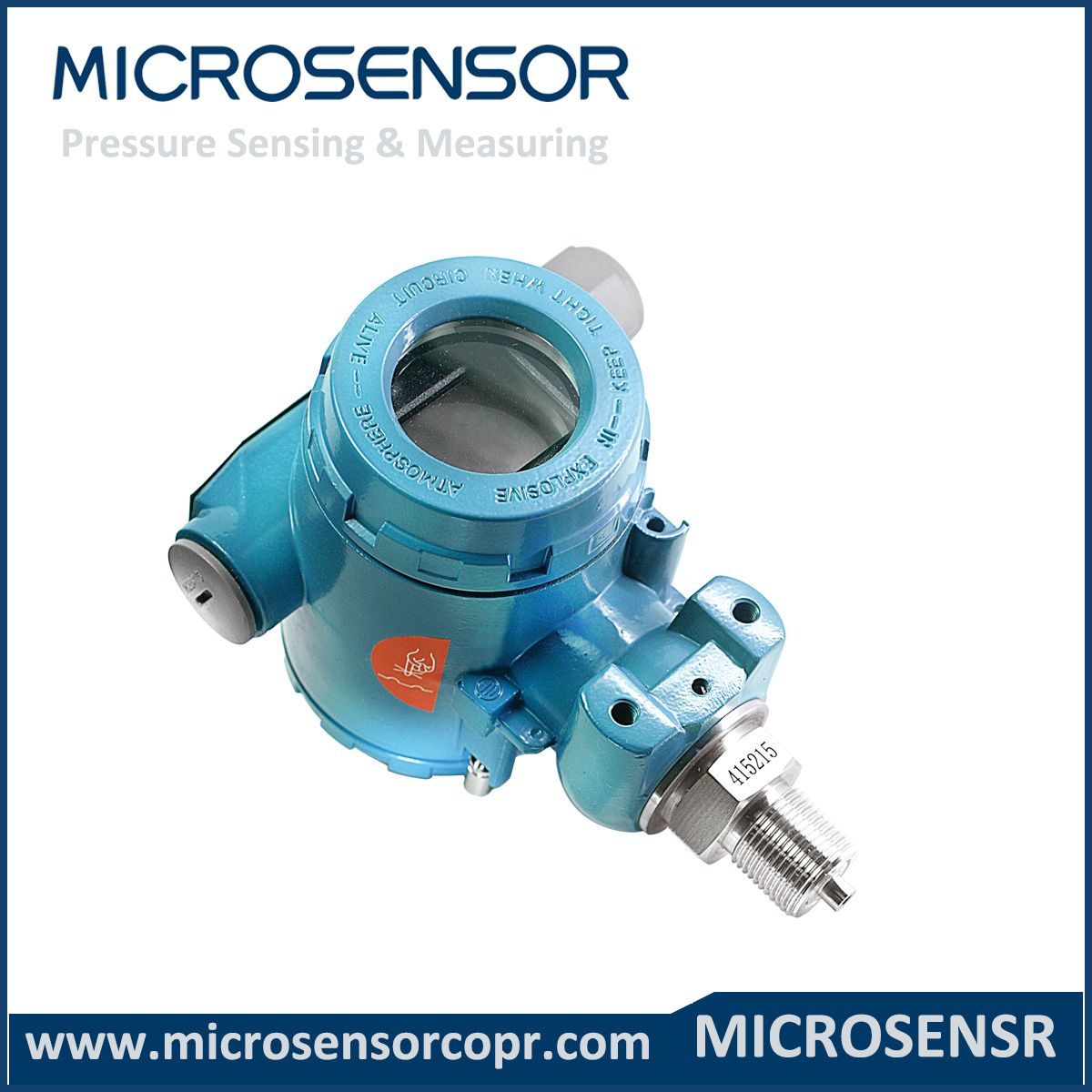

Hart Digital Pressure Transmitter Mpm486

Name: Hart Digital Pressure Transmitter Mpm486
Brand: all-electronics-online.com
SKU: 741724395
Availability: InStock
Rating: 4.8 (117 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM486
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Accuracy:	0.15%Fs (Typ.)
Wiring:	2-Wire
Output Option:	Hart, 4~20madc
Compensation Temperature:	-10~80c
Category:	Intelligent
Diaphragm:	Ss316L
Power Supply:	12~36 VDC
Long Term Stability:	Less Than 0.25%Fs/Year
Display:	LCD Display
Storage Temperature:	-40~85c

Product Description

HART Pressure Transmitter MPM486

Features:
  1. 4~20m ADC output
  2. HART available
  3. Linearity correction
  4. Digital compensation
  5. -10~80C wide temperature compensation
  6. Local adjustable
  7. Easy configuration
  8. IP65

Specifications:

Code	02	03	07	08	09	10	12	13	14	15	17	18	19	20
Unit	kPa					MPa
Pressure	0-20 ~ 0-70	0-30 ~0-100	0-60 ~0-200	0-100 ~0-350	0-200 ~0-700	0-0.3 ~0-1.0	0-0.6 ~0-2.0	0-1.0 ~0-3.5	0-2.0 ~0-7.0	0-3.0 ~0-10.	0-4.0 ~ 0-20	0-8.0 ~ 0-35	0-16 ~ 0-70	0-20 ~0-100
Upper limit	70	100	200	350	700	1.0	2.0	3.5	7.0	10	20	35	70	100
Overpressure	100	150	300	500	1000	1.5	3.0	5.0	10	15	30	52	100	110

	Specification	Unit
Accuracy	±0.1(typ.) ±0.25(max.)	%FS
Zero Thermal error	≤±0.25(in the whole operation temp.range)	%FS
FS Thermal error	≤±0.25(in the whole operation temp.range)	%FS
Stability	≤±0.25	%FS/year
Compensation temp.	-10~80	ºC
Operation temp.	-20~80	ºC
Storage temp.	-40~85	ºC
Power supply	12~36	VDC
Digital output	4~20mADC output+ HARTâ
Display	LCD indicator, 2 or 3 keys to calibrate
Damp	0~32	s
Load	(U-12V)/0.02A	Ω
Insulation	100MΩ/50V
Shock	20g,20~5000Hz
Impact	20g,11ms
Diaphragm	Stainless steel 316L/tantalum
Pressure port	Stainless steel 1Cr18Ni9Ti/hastelloy
O-ring	Viton
Weight	~1.7kg

Order Guide

MPM486

HARTâ Intelligent Pressure Transmitter

Code

Pressure range (kPa or MPa)

[0~X] kPa
or MPa

0~2070kPa

0~1.03.5MPa

0~30100kPa

0~2.07.0MPa

0~60200kPa

0~3.010.0MPa

0~100350kPa

0~4.020.0MPa

0~200700kPa

0~8.035.0MPa

0~0.31.0MPa

0~16.070.0MPa

0~0.62.0MPa

0~20.0100.0MPa

Code

Output signal

4mA~20mA DC + HARTâ communication protocol (2-wire)

Code

Construction material

Diaphragm

Pressure port

Housing

SS 316L

Aluminum-alloy

SS 316L

Aluminum-alloy

Tantalum

Aluminum-alloy

Tantalum

Hastelloy C

Aluminum-alloy

Code

Others

M20×1.5 male, face type seal

G1/2 male

M20×1.5 male, waterline seal

PC1

Flush diaphragm, M20×1.5 male

PC3

Flush diaphragm, G1/2 male

Gauge

Sealed gauge

Absolute

MPM486 [0~200]kPa E 22 C1G the whole spec

Micro Sensor Co., Ltd, the leading manufacturer of piezo-resistive pressure sensors and transmitters in China, was founded by Sino-US joint venture in 1993. We are providing pressure sensing & measuring solutions to customers all over the world.

With Digital Wide-Temperature Compensation, Non-linearity Correction and Data-Collection by Bus Operation, we supply users OEM pressure sensors, pressure transmitters, level transmitters, measuring and controlling instruments, which have high quality and reliable performance in the local on-site environment.

Based on more than 20 years production experiences, Micro Sensor now have manufacturing capacity of 1.2 million pieces pressure sensors and 400 thousand pieces transmitters in one year. And we are also capable to satisfy the customized specification and designs according to clients' Specified requirements.

Quality is the life of company. Micro Sensor executes I S O 9 0 0 1 International Management System strictly to make sure every procedure qualified in our production. Furthermore, the main products for pressure sensors and transmitters, are also certificated by C E, R o H S, C B, U L and A T E X respectively for different global markets.

Micro Sensor now does business with customers more than 70 countries. More and more global friends know Micro Sensor and make win-win cooperation with us. Wherever you are, whenever you are, find Micro Sensor for any pressure sensing & measuring question. We are looking forward to supporting you with our best services!
