| Prod Model: |
MPM4730 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measurement Range: |
-0.1...0~0.01...100MPa |
| Pressure Type: |
Gauge, Absolute, Sealed Gauge |
| Overpressure: |
1.5 Times |
| Compensated Temperaure: |
-10 ~ +80c |
| Output Signal: |
4~20mA |
| Product Type: |
Intelligent Pressure Sensor |
| Digital Signal: |
RS485 or Hart |
| Electric Connection: |
Plug or Cable Connection |
| Diaphram: |
Ss316L |
| Power Supply: |
2-Wire, 3-Wire |
Product Description

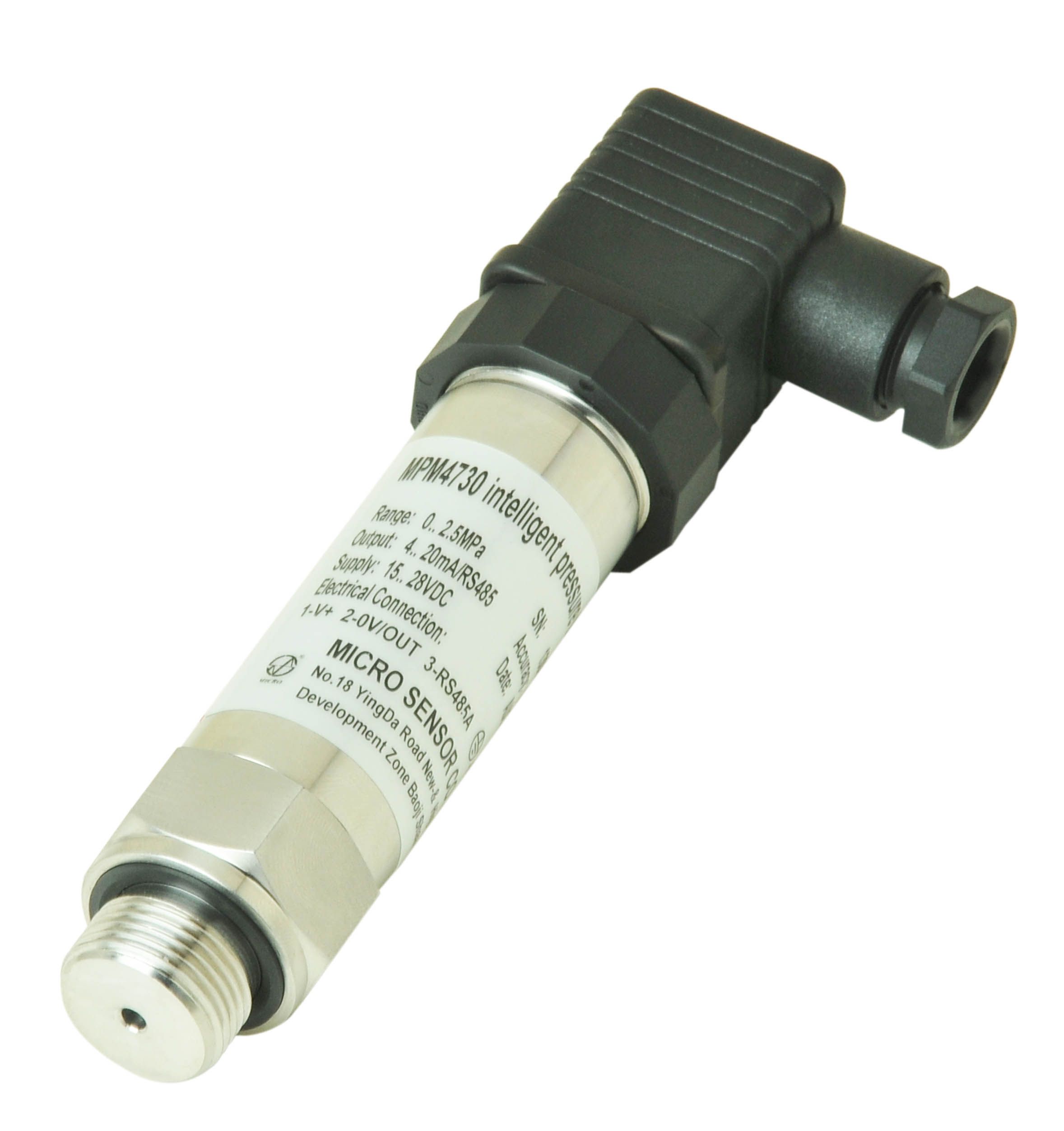

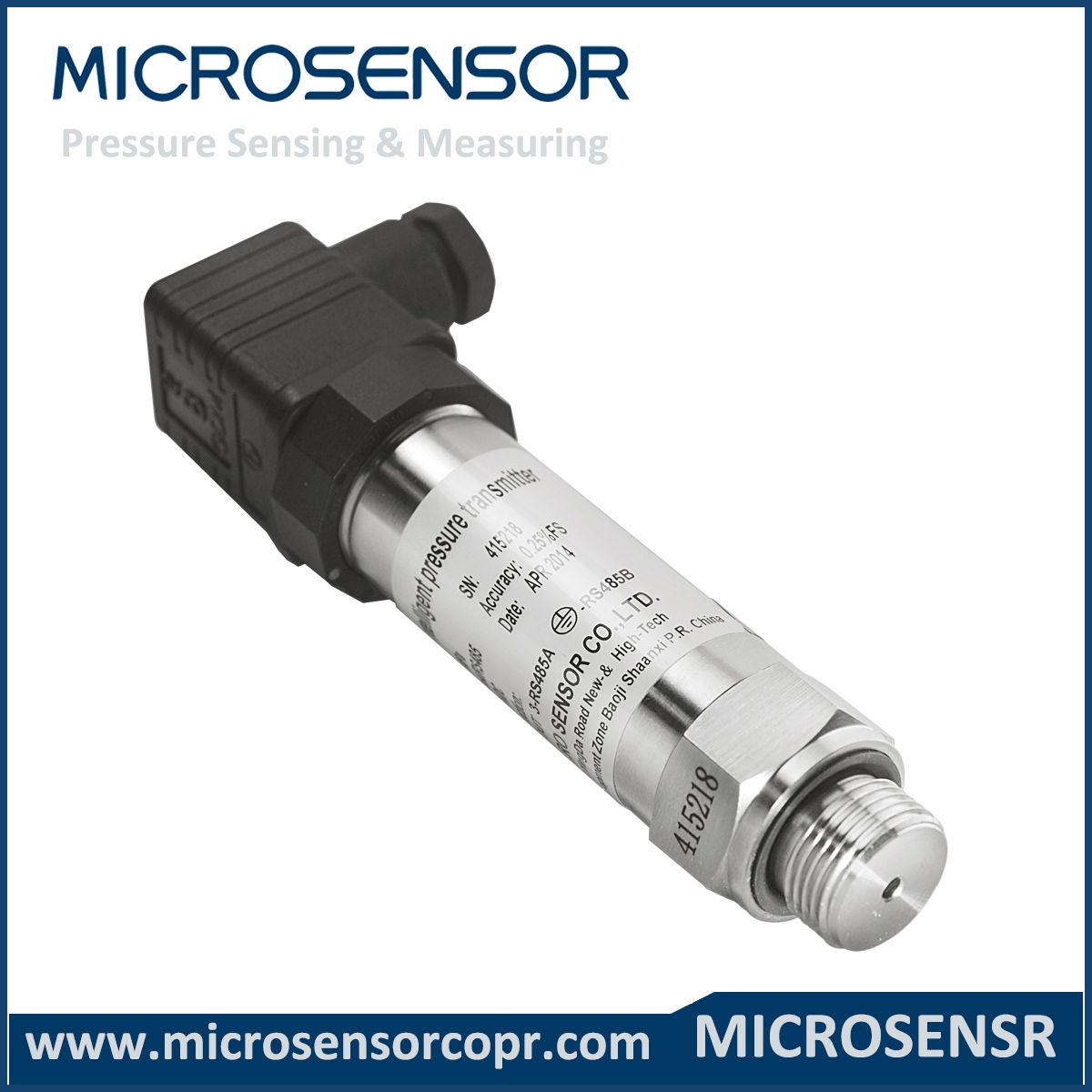

MPM4730 Intelligent Piezoresistive Pressure Transmitter
Features
·4~20mADC 2-wire current output;
·Digital compensation and non-linearity correction technics;
·-10°C~80°C digital wider temperature compensation;
·RS485 communication interface or HART communication protocol(optional);
·Netting available;
·Full stainless steel construction, compact size, light weight;
·Special requirement available;
·RoHS certificated;
·Intrinsic safe ex-proof version conforming to GB3836.4 ExiaIIBT6 Ga Regulation;
· Ex-proof Certificate is issued;
·Ship-use product conforming to CCS Rules of Classification of Sea-going Steel Ships (2006) .
Description
MPM4730 HART Intelligent Pressure Transmitter is the highly accurate and stable intelligent pressure transmitter. It uses digital temperature compensation,non-linearity correction technics and the most advanced transmitter production technique, the whole product has compact size, high accuracy, light weight and wider pressure range, can be used for flow pressure precise measurement. The product will instead the 2-wire working 4~20mADC output analogous signal.
Specifications
| Total accuracy | ±0.075%FS(min.) ±0.15%FS(typ.) ±0.25%FS(max.) |
| Stability | ±0.2%FS/year |
| Compensated temp. | (-10~80)ºC |
| Operation/storage temp. | (-40~80)ºC |
| Power supply | (10~28)VDC(RS485)/(12~30)VDC(HART) |
| Output | (4~20)mADC |
| RS485/HART(optional) |
| Load | (4~20)mADC output,(U-10V/12V)/0.02A(Ω) |
| RS485 bus line could connect with 99 transmitters |
| Electric connection | DIN43650 4-pin plug(RS485 socket inside) |
| 7-pin plug(for RS485 interface output at local place) |
| Φ7.2mm shielding cable |
| Insulation | 100MΩ/50V |
| Shock | 20g,(20~5000)Hz |
| Impact | 20g,11ms |
| Protection | IP65(B1,B2) IP63(B3) |
| Media compatibility | Diaphragm: SS 316L |
| Housing: SS 1Cr18Ni9Ti |
| O-ring: Viton |
| Weight | ~160g |

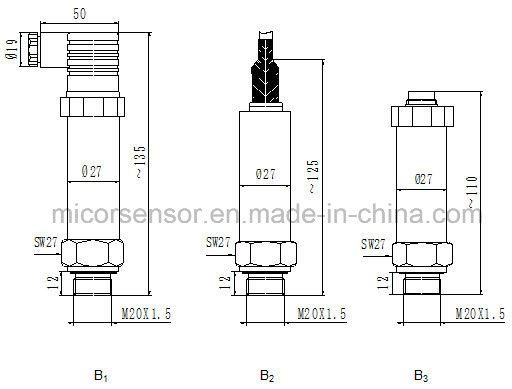

Outline Construction
Order Information:
| MPM4730 | Intelligent Pressure Transmitter |
| | | Range | Pressure range: -0.10~0.01100MPa |
[0~X]kPa
MPa | ,X=actual pressure range | |
|
| Code | Output signal |
| E | 4~20mADC |
| R4 | RS485 communication interface |
| H | HARTâ communication protocol |
| | Code | Construction material |
| Diaphragm | Pressure port | Housing | |
| 22 | SS 316L | SS | SS |
| 24 | SS 316L | SS 316L | SS 316L |
| | | Code | Others |
| B1 | 4-spin Hirschmann plug connection |
| B2 | Cable connection, default cable length: 1.5m |
| B3 | 7-pin plug connection |
| PC1 | Flush diaphragm, M20×1.5 male |
| PC3 | Flush diaphragm, G1/2 male |
| C1 | M20×1.5 male, face type seal |
| C3 | G1/2 male |
| C4 | G1/4 female |
| C5 | M20×1.5 male, waterline seal | |
| G | Gauge | |
| S | Sealed gauge | |
| A | Absolute | |
| | | | | i | Intrinsic safe version ExiaIIBT6 Ga | |
| | | | | | |
| |
| MPM4730 [0~100]kPa ER4 22 B3C1G the whole spec |
| | | | | | | | | | | | | | |
